Project 17: SPI Master

Implement an SPI master that supports Mode 0 and Mode 3.

Quick Reference

Attribute Value
Difficulty Advanced
Time Estimate 1 week
Main Programming Language Verilog (Alternatives: VHDL, SystemVerilog)
Alternative Programming Languages VHDL, SystemVerilog
Coolness Level High
Business Potential Medium
Prerequisites Shift registers, Clock dividers
Key Topics SPI modes, CS framing

1. Learning Objectives

  1. Generate SPI clock with correct polarity
  2. Shift data on correct edges
  3. Frame transactions with CS

2. All Theory Needed (Per-Concept Breakdown)

SPI Timing and Modes

Description/Expanded Explanation of the concept

SPI uses a shared clock. CPOL controls idle clock polarity; CPHA controls when data is sampled. Matching modes between master and slave is required for correct transfers.

Definitions & Key Terms
  • CPOL -> clock polarity
  • CPHA -> clock phase
  • CS -> chip select framing signal
Mental Model Diagram (ASCII)
Mode 0: CPOL=0, CPHA=0 (sample on rising edge)
Mode 3: CPOL=1, CPHA=1 (sample on rising edge)
How It Works (Step-by-Step)
  1. Generate SCK with correct idle polarity.
  2. Drive MOSI on the shift edge.
  3. Sample MISO on the sample edge.
  4. Keep CS low for the entire frame.
Minimal Concrete Example
if (sck_rise) mosi <= shift[7];
if (sck_fall) shift <= {shift[6:0], miso};
Common Misconceptions
  • “CPOL/CPHA only affect speed.” -> They define sampling edges.
  • “CS can toggle mid-byte.” -> It usually frames the transaction.
Check-Your-Understanding Questions
  1. What is the difference between Mode 0 and Mode 3?
  2. When should MOSI change relative to SCK?
  3. Why is CS important?
Where You’ll Apply It
  • This project: used in Section 3.2 and Section 4
  • Also used in: P15-uart-transmitter.md (for comparison)

Shift Registers

Description/Expanded Explanation of the concept

Shift registers move data one bit per clock. They are the core of serial protocols and LED chasers. They can shift left, right, or rotate, and they are often paired with counters for timing.

Definitions & Key Terms
  • Shift register -> register that shifts bits each cycle
  • Serial -> one bit per clock
  • Parallel -> multiple bits at once
Mental Model Diagram (ASCII)
[ b7 b6 b5 b4 b3 b2 b1 b0 ] -> shift -> [ b6 ... b0 new ]

Shift register bit movement

How It Works (Step-by-Step)
  1. Load a register with a value.
  2. On each clock edge, shift left or right.
  3. Insert a new bit at the shifted end.
Minimal Concrete Example
shift <= {shift[6:0], serial_in};
Common Misconceptions
  • “Shift registers are only for serial I/O.” -> They are also for patterns and delays.
  • “Shifts are free.” -> They still consume registers and routing.
Check-Your-Understanding Questions
  1. What is the difference between shift and rotate?
  2. How many cycles to shift out 8 bits?
  3. Why use shift registers in UART TX?
Where You’ll Apply It
  • This project: used in Section 3.2 and Section 4
  • Also used in: P15-uart-transmitter.md, P17-spi-master.md

Verification with Testbenches and Waveforms

Description/Expanded Explanation of the concept

Testbenches are simulation-only modules that apply stimulus and check outputs. Waveforms (VCD) are the hardware engineer’s microscope; they reveal timing, glitches, and ordering problems. A good testbench is deterministic and covers edge cases.

Definitions & Key Terms
  • Testbench -> a non-synthesizable module that drives a DUT
  • VCD -> Value Change Dump waveform file
  • Deterministic test -> same inputs produce same outputs every run
Mental Model Diagram (ASCII)
[Testbench] -> [DUT] -> [VCD] -> [GTKWave]

Testbench DUT VCD GTKWave flow

How It Works (Step-by-Step)
  1. Initialize inputs to known values.
  2. Apply stimulus over time.
  3. Dump waveforms and check outputs.
  4. Add assertions or PASS/FAIL messages.
Minimal Concrete Example
initial begin
  $dumpfile("wave.vcd");
  $dumpvars(0, tb);
  a = 0; b = 1; #10;
  $finish;
end
Common Misconceptions
  • “If it simulates once, it’s correct.” -> Cover all relevant cases.
  • “Waveforms are optional.” -> They are often the only way to debug timing.
Check-Your-Understanding Questions
  1. Why keep testbench and DUT separate?
  2. What is the purpose of $dumpvars?
  3. How do you make a testbench deterministic?
Where You’ll Apply It
  • This project: used throughout Section 6 (testing)
  • Also used in: all other projects in this folder

3. Project Specification

3.1 What You Will Build

An SPI master with Mode 0 and Mode 3 support.

3.2 Functional Requirements

  1. Requirement 1: Configurable clock divider
  2. Requirement 2: Support Mode 0 and Mode 3
  3. Requirement 3: Full-duplex 8-bit transfer

3.3 Non-Functional Requirements

  • Performance: Stable operation at the target clock and interfaces.
  • Reliability: Deterministic outputs on all defined inputs.
  • Usability: Clear ports and documented behavior.

3.4 Example Usage / Output

{p['example_usage']}

3.5 Data Formats / Schemas / Protocols

{p[‘data_format’]}

3.6 Edge Cases

  • Mode mismatch
  • CS timing

3.7 Real World Outcome

3.7.1 How to Run (Copy/Paste)

vvp spi_tb

3.7.2 Golden Path Demo (Deterministic)

Run the demo command above with the provided testbench and confirm the outputs match the golden transcript.

3.7.3 CLI Transcript

TX=0x9A RX=0x3C mode=0

3.7.4 Failure Demo (Expected)

# Example failure case
ERROR: Output mismatch at vector 3
Expected: 0x0A, Got: 0x0B
EXIT CODE: 1

Notes:

  • Exit code 0 indicates all tests passed
  • Exit code 1 indicates a test failure

4. Solution Architecture

4.1 High-Level Design

[inputs] -> [core logic] -> [outputs]

Core logic flow

4.2 Key Components

Component Responsibility
sck_gen SPI clock generation
shift MOSI/MISO shift register

4.3 Data Structures (No Full Code)

// Example signals (adapt to your design)
reg [7:0] state_reg;
reg [7:0] data_reg;

4.4 Algorithm Overview

Key Algorithm: Core control flow

  1. Initialize state/reset conditions.
  2. Apply inputs and compute outputs.
  3. Update state on clock edges (if sequential).

Complexity Analysis:

  • Time: O(1) per cycle
  • Space: O(N) for registers and logic

5. Implementation Guide

5.1 Development Environment Setup

iverilog -v
# Ensure GTKWave is installed for waveform viewing

5.2 Project Structure

project-root/
|-- src/
|   |-- top.v
|   |-- core.v
|-- tb/
|   |-- tb.v
|-- Makefile
|-- README.md

Project folder structure

5.3 The Core Question You’re Answering

“How do you align data with a shared clock across devices?”

5.4 Concepts You Must Understand First

  • Shift registers
  • Clock dividers

5.5 Questions to Guide Your Design

  • Which edge should sample in each mode?
  • How long should CS stay low?

5.6 Thinking Exercise

Draw SCK and MOSI for Mode 0 and Mode 3.

5.7 The Interview Questions They’ll Ask

  • What do CPOL and CPHA mean?
  • Why is CS required?

5.8 Hints in Layers

  • Drive MOSI on one edge, sample MISO on the other.
  • Keep CS low for the full frame.

5.9 Books That Will Help

Topic Book Chapter
Serial protocols Making Embedded Systems Ch. 8

5.10 Implementation Phases

Phase 1: Foundation

Goals:

  • Establish core module structure
  • Implement minimal behavior

Tasks:

  1. Scaffold module ports and internal signals
  2. Write a minimal testbench that compiles

Checkpoint: Simulation runs without errors

Phase 2: Core Functionality

Goals:

  • Implement full logic
  • Verify edge cases

Tasks:

  1. Complete core logic
  2. Add directed tests for edge cases

Checkpoint: All tests pass and waveforms match expectations

Phase 3: Polish & Edge Cases

Goals:

  • Improve readability
  • Document behavior

Tasks:

  1. Add comments and README notes
  2. Expand tests for unusual inputs

Checkpoint: Design is deterministic and documented

5.11 Key Implementation Decisions

Decision Options Recommendation Rationale
Reset strategy Sync / Async Sync Simpler timing closure
Test coverage Directed / Exhaustive Exhaustive for small logic Prevents missed cases

6. Testing Strategy

6.1 Test Categories

Category Purpose Examples
Unit Tests Test core logic Small vectors
Integration Tests Test modules together Full system
Edge Case Tests Boundary conditions Max/min values

6.2 Critical Test Cases

  1. Test 1: Mode 0 transfer
  2. Test 2: Mode 3 transfer

6.3 Test Data

Use deterministic vectors and document expected outputs.

7. Common Pitfalls & Debugging

7.1 Frequent Mistakes

Pitfall Symptom Solution
Mode mismatch Data shifted by 1 Verify CPOL/CPHA

7.2 Debugging Strategies

  • Inspect waveforms at key internal signals
  • Add temporary debug outputs to verify state
  • Reduce testcases to the smallest failing case

7.3 Performance Traps

  • Overly wide counters or combinational paths can reduce max clock

8. Extensions & Challenges

8.1 Beginner Extensions

  • Add parameterization for widths
  • Add optional features (enable, reset)

8.2 Intermediate Extensions

  • Add configuration registers
  • Build a simple driver or demo program

8.3 Advanced Extensions

  • Integrate with another project in this series
  • Implement a hardware demo on FPGA

9. Real-World Connections

9.1 Industry Applications

  • Digital control systems and embedded peripherals
  • FPGA prototyping and validation
  • Yosys / nextpnr toolchain for open-source FPGA flow
  • Example HDL projects in the FPGA community

9.3 Interview Relevance

  • Demonstrates RTL thinking and verification skills

10. Resources

10.1 Essential Reading

  • Making Embedded Systems - Focus on Ch. 8

10.2 Video Resources

  • Search for project-specific HDL walkthroughs and waveforms

10.3 Tools & Documentation

  • Icarus Verilog
  • GTKWave
  • See adjacent projects in VERILOG_FROM_ZERO_PROJECTS/

11. Self-Assessment Checklist

11.1 Understanding

  • I can explain the core concept without notes
  • I can predict waveform behavior for basic inputs

11.2 Implementation

  • All functional requirements are met
  • All tests pass
  • Edge cases are documented

11.3 Growth

  • I can explain this project in an interview
  • I documented at least one lesson learned

12. Submission / Completion Criteria

Minimum Viable Completion:

  • Functional requirements implemented
  • Testbench passes
  • Waveforms inspected

Full Completion:

  • All minimum criteria plus
  • Edge cases covered and documented

Excellence (Going Above & Beyond):

  • Hardware demo on FPGA
  • Clear write-up of lessons learned

    Appendix A: Deep Dive Walkthrough

A.1 Signal Map and Timing Contract

  • Inputs: clk, reset, start, tx_data[7:0], mode
  • Outputs: sck, mosi, cs, rx_data[7:0], busy

A.2 Mode Summary

  • Mode 0 (CPOL=0, CPHA=0): sample on rising, shift on falling.
  • Mode 3 (CPOL=1, CPHA=1): sample on rising, shift on falling, idle high.

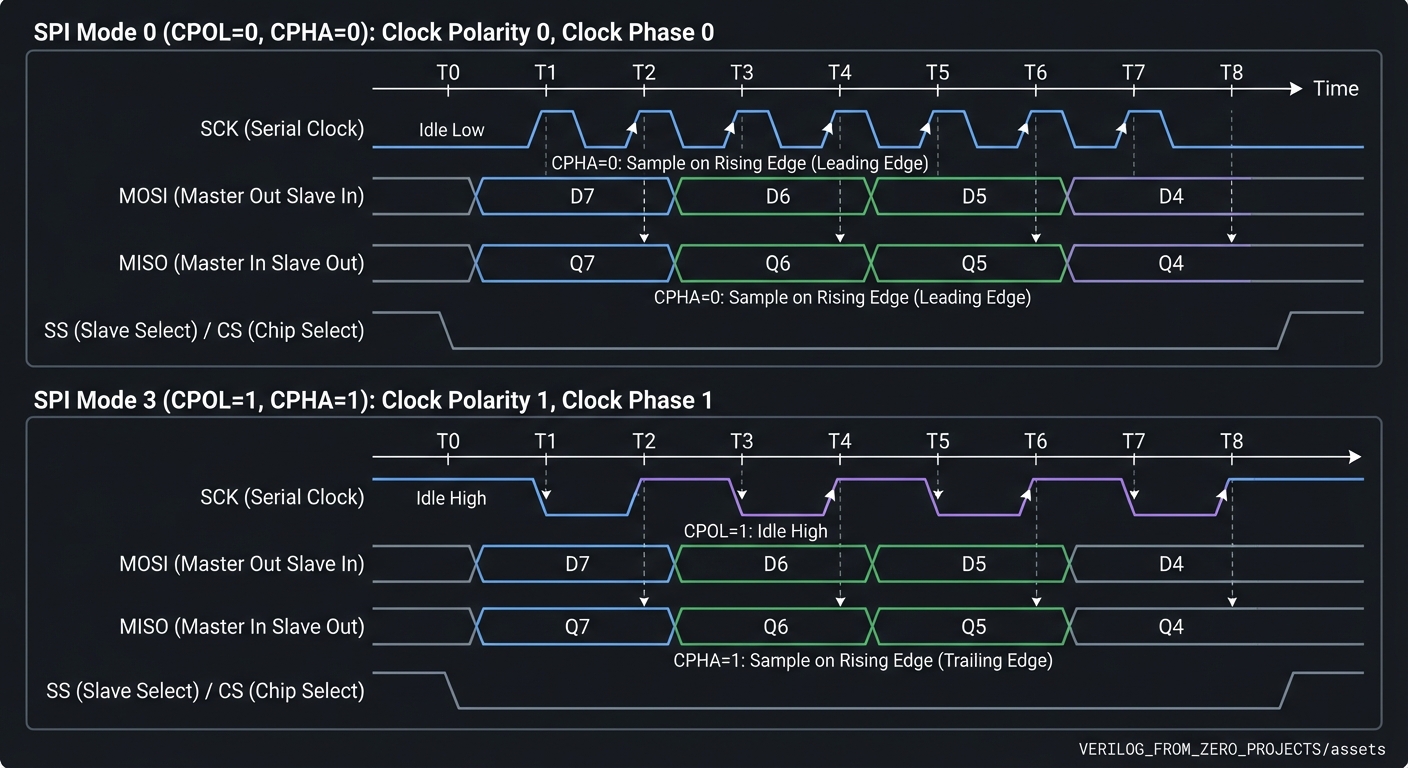

A.3 Timing Sketch

Mode 0:  SCK _/\_/\_/\_  (idle low)
Mode 3:  SCK ‾\_/\_/\_‾  (idle high)

SPI mode waveforms

A.4 Deterministic Test Vectors

  • Connect a loopback (MOSI -> MISO) in the testbench.
  • Send 0x3C and expect 0x3C back in both modes.

A.5 Debugging Tip

If bits are reversed, check whether you shift MSB-first or LSB-first and keep it consistent.

13. Deep Dive Appendix

13.1 Timing and Resource Budget

  • SCK period = clk_hz / divider. Ensure divider >= 2.
  • CPOL/CPHA determine idle level and sample edge.
  • CS setup/hold must meet the slave device datasheet.

13.2 Waveform Interpretation Guide

  • Verify CS goes low before the first clock edge and stays low until after the last bit.
  • Check MOSI changes on the shift edge and MISO sampled on the capture edge.

Example mode 0:

CPOL=0, CPHA=0 -> sample on rising edge, shift on falling edge

13.3 Hardware Bring-Up Notes

  • Use a logic analyzer to verify edge alignment.
  • Ensure all devices share a common ground.
  • Many sensors are 3.3V only; use a level shifter if needed.

13.4 Alternate Implementations and Trade-offs

  • Add support for mode 1 and 2 for wider device compatibility.
  • Implement multi-byte transfers with a length counter.
  • Add multi-slave selection with multiple CS lines.

13.5 Additional Exercises

  • Build a loopback test by tying MOSI to MISO.
  • Add a configurable bit order (MSB/LSB first).
  • Support quad-SPI signals as an advanced challenge.
