Project 11: Traffic Light Controller

Build a timed FSM that cycles through green, yellow, red safely.

Quick Reference

Attribute Value
Difficulty Intermediate
Time Estimate 1 weekend
Main Programming Language Verilog (Alternatives: VHDL, SystemVerilog)
Alternative Programming Languages VHDL, SystemVerilog
Coolness Level Medium
Business Potential Low
Prerequisites FSMs, Counters
Key Topics FSM, Timing, Output decoding

1. Learning Objectives

  1. Design a state diagram
  2. Implement timed transitions
  3. Map states to outputs

2. All Theory Needed (Per-Concept Breakdown)

Finite State Machine Design

Description/Expanded Explanation of the concept

FSMs model systems that move between discrete states. They are the backbone of controllers: traffic lights, vending machines, UARTs, and CPUs. A clear state diagram and correct next-state logic are essential.

Definitions & Key Terms
  • State -> encoded system condition
  • Moore FSM -> outputs depend only on state
  • Mealy FSM -> outputs depend on state and inputs
Mental Model Diagram (ASCII)
S0 --in--> S1 --in--> S2
 ^                 |
 +-----------------+

Three-state FSM loop

How It Works (Step-by-Step)
  1. Define states and transitions.
  2. Encode the states.
  3. Implement next-state combinational logic.
  4. Register the state on the clock edge.
Minimal Concrete Example
always @(posedge clk) begin
  if (reset) state <= IDLE;
  else state <= next_state;
end
Common Misconceptions
  • “State encoding doesn’t matter.” -> It affects area and speed.
  • “Mealy is always faster.” -> It can glitch if inputs change.
Check-Your-Understanding Questions
  1. When would you choose Moore over Mealy?
  2. How do you avoid glitches on outputs?
  3. How do you handle illegal states?
Where You’ll Apply It
  • This project: used in Section 3.2 and Section 4
  • Also used in: P11-traffic-light-controller.md, P13-serial-pattern-detector-finding-10110-in-a-bitstre.md, Final CPU

Counters and Clock Enables

Description/Expanded Explanation of the concept

Counters are registers that increment or decrement each clock cycle. Clock enables allow you to update a register only when needed, which is safer than gating clocks. They are essential for timing, PWM, and pacing visible outputs.

Definitions & Key Terms
  • Counter -> register that increments/decrements
  • Clock enable -> condition that allows a register update
  • Prescaler -> counter used to slow down a signal
Mental Model Diagram (ASCII)
clk -> [counter] --tick--> [slow logic]

Clock divider tick pipeline

How It Works (Step-by-Step)
  1. Increment counter each clock edge.
  2. When counter reaches a limit, assert a tick.
  3. Use tick as a clock enable for slower logic.
Minimal Concrete Example
if (tick) out <= out + 1;
Common Misconceptions
  • “Gating the clock is simpler.” -> It can break timing and glitch.
  • “Counters are always free.” -> Wide counters consume resources.
Check-Your-Understanding Questions
  1. Why use clock enables instead of gating clocks?
  2. How do you choose counter width for a target frequency?
  3. What happens when a counter overflows?
Where You’ll Apply It
  • This project: used in Section 3.2 and Section 5
  • Also used in: P08-shift-register-led-chaser.md, P10-pwm-generator-led-dimmer-servo-control.md

Verification with Testbenches and Waveforms

Description/Expanded Explanation of the concept

Testbenches are simulation-only modules that apply stimulus and check outputs. Waveforms (VCD) are the hardware engineer’s microscope; they reveal timing, glitches, and ordering problems. A good testbench is deterministic and covers edge cases.

Definitions & Key Terms
  • Testbench -> a non-synthesizable module that drives a DUT
  • VCD -> Value Change Dump waveform file
  • Deterministic test -> same inputs produce same outputs every run
Mental Model Diagram (ASCII)
[Testbench] -> [DUT] -> [VCD] -> [GTKWave]

Testbench DUT VCD GTKWave flow

How It Works (Step-by-Step)
  1. Initialize inputs to known values.
  2. Apply stimulus over time.
  3. Dump waveforms and check outputs.
  4. Add assertions or PASS/FAIL messages.
Minimal Concrete Example
initial begin
  $dumpfile("wave.vcd");
  $dumpvars(0, tb);
  a = 0; b = 1; #10;
  $finish;
end
Common Misconceptions
  • “If it simulates once, it’s correct.” -> Cover all relevant cases.
  • “Waveforms are optional.” -> They are often the only way to debug timing.
Check-Your-Understanding Questions
  1. Why keep testbench and DUT separate?
  2. What is the purpose of $dumpvars?
  3. How do you make a testbench deterministic?
Where You’ll Apply It
  • This project: used throughout Section 6 (testing)
  • Also used in: all other projects in this folder

3. Project Specification

3.1 What You Will Build

A traffic light FSM with green/yellow/red phases and timers.

3.2 Functional Requirements

  1. Requirement 1: Cycle through states in correct order
  2. Requirement 2: Hold each state for configured duration
  3. Requirement 3: Output correct LED pattern

3.3 Non-Functional Requirements

  • Performance: Stable operation at the target clock and interfaces.
  • Reliability: Deterministic outputs on all defined inputs.
  • Usability: Clear ports and documented behavior.

3.4 Example Usage / Output

{p['example_usage']}

3.5 Data Formats / Schemas / Protocols

{p[‘data_format’]}

3.6 Edge Cases

  • Reset mid-cycle
  • Timer overflow

3.7 Real World Outcome

3.7.1 How to Run (Copy/Paste)

vvp traffic_tb

3.7.2 Golden Path Demo (Deterministic)

Run the demo command above with the provided testbench and confirm the outputs match the golden transcript.

3.7.3 CLI Transcript

STATE=GREEN t=0..29
STATE=YELLOW t=30..34
STATE=RED t=35..64

3.7.4 Failure Demo (Expected)

# Example failure case
ERROR: Output mismatch at vector 3
Expected: 0x0A, Got: 0x0B
EXIT CODE: 1

Notes:

  • Exit code 0 indicates all tests passed
  • Exit code 1 indicates a test failure

4. Solution Architecture

4.1 High-Level Design

[inputs] -> [core logic] -> [outputs]

Core logic flow

4.2 Key Components

Component Responsibility
fsm State register and next-state logic
timer Duration counter

4.3 Data Structures (No Full Code)

// Example signals (adapt to your design)
reg [7:0] state_reg;
reg [7:0] data_reg;

4.4 Algorithm Overview

Key Algorithm: Core control flow

  1. Initialize state/reset conditions.
  2. Apply inputs and compute outputs.
  3. Update state on clock edges (if sequential).

Complexity Analysis:

  • Time: O(1) per cycle
  • Space: O(N) for registers and logic

5. Implementation Guide

5.1 Development Environment Setup

iverilog -v
# Ensure GTKWave is installed for waveform viewing

5.2 Project Structure

project-root/
|-- src/
|   |-- top.v
|   |-- core.v
|-- tb/
|   |-- tb.v
|-- Makefile
|-- README.md

Project folder structure

5.3 The Core Question You’re Answering

“How do you model timed real-world behavior with FSMs?”

5.4 Concepts You Must Understand First

  • FSMs
  • Counters

5.5 Questions to Guide Your Design

  • Should timers be programmable?
  • Moore or Mealy outputs?

5.6 Thinking Exercise

Draw a state diagram and label durations.

5.7 The Interview Questions They’ll Ask

  • Moore vs Mealy: which is safer for outputs?
  • How do you implement timed transitions?

5.8 Hints in Layers

  • Use a timer counter per state.
  • Reset timer on state change.

5.9 Books That Will Help

Topic Book Chapter
FSMs Digital Design and Computer Architecture Ch. 3.4

5.10 Implementation Phases

Phase 1: Foundation

Goals:

  • Establish core module structure
  • Implement minimal behavior

Tasks:

  1. Scaffold module ports and internal signals
  2. Write a minimal testbench that compiles

Checkpoint: Simulation runs without errors

Phase 2: Core Functionality

Goals:

  • Implement full logic
  • Verify edge cases

Tasks:

  1. Complete core logic
  2. Add directed tests for edge cases

Checkpoint: All tests pass and waveforms match expectations

Phase 3: Polish & Edge Cases

Goals:

  • Improve readability
  • Document behavior

Tasks:

  1. Add comments and README notes
  2. Expand tests for unusual inputs

Checkpoint: Design is deterministic and documented

5.11 Key Implementation Decisions

Decision Options Recommendation Rationale
Reset strategy Sync / Async Sync Simpler timing closure
Test coverage Directed / Exhaustive Exhaustive for small logic Prevents missed cases

6. Testing Strategy

6.1 Test Categories

Category Purpose Examples
Unit Tests Test core logic Small vectors
Integration Tests Test modules together Full system
Edge Case Tests Boundary conditions Max/min values

6.2 Critical Test Cases

  1. Test 1: Long simulation to confirm cycle order
  2. Test 2: Reset behavior mid-cycle

6.3 Test Data

Use deterministic vectors and document expected outputs.

7. Common Pitfalls & Debugging

7.1 Frequent Mistakes

Pitfall Symptom Solution
Skipped state Timer not reset Reset timer on transition

7.2 Debugging Strategies

  • Inspect waveforms at key internal signals
  • Add temporary debug outputs to verify state
  • Reduce testcases to the smallest failing case

7.3 Performance Traps

  • Overly wide counters or combinational paths can reduce max clock

8. Extensions & Challenges

8.1 Beginner Extensions

  • Add parameterization for widths
  • Add optional features (enable, reset)

8.2 Intermediate Extensions

  • Add configuration registers
  • Build a simple driver or demo program

8.3 Advanced Extensions

  • Integrate with another project in this series
  • Implement a hardware demo on FPGA

9. Real-World Connections

9.1 Industry Applications

  • Digital control systems and embedded peripherals
  • FPGA prototyping and validation
  • Yosys / nextpnr toolchain for open-source FPGA flow
  • Example HDL projects in the FPGA community

9.3 Interview Relevance

  • Demonstrates RTL thinking and verification skills

10. Resources

10.1 Essential Reading

  • Digital Design and Computer Architecture - Focus on Ch. 3.4

10.2 Video Resources

  • Search for project-specific HDL walkthroughs and waveforms

10.3 Tools & Documentation

  • Icarus Verilog
  • GTKWave
  • See adjacent projects in VERILOG_FROM_ZERO_PROJECTS/

11. Self-Assessment Checklist

11.1 Understanding

  • I can explain the core concept without notes
  • I can predict waveform behavior for basic inputs

11.2 Implementation

  • All functional requirements are met
  • All tests pass
  • Edge cases are documented

11.3 Growth

  • I can explain this project in an interview
  • I documented at least one lesson learned

12. Submission / Completion Criteria

Minimum Viable Completion:

  • Functional requirements implemented
  • Testbench passes
  • Waveforms inspected

Full Completion:

  • All minimum criteria plus
  • Edge cases covered and documented

Excellence (Going Above & Beyond):

  • Hardware demo on FPGA
  • Clear write-up of lessons learned

    Appendix A: Deep Dive Walkthrough

A.1 Signal Map and State Outputs

  • Inputs: clk, reset
  • Outputs: ns_red, ns_yellow, ns_green, ew_red, ew_yellow, ew_green

A.2 Suggested State Timing

  • NS Green: 30 s
  • NS Yellow: 5 s
  • All Red: 2 s (safety)
  • EW Green: 30 s
  • EW Yellow: 5 s
  • All Red: 2 s

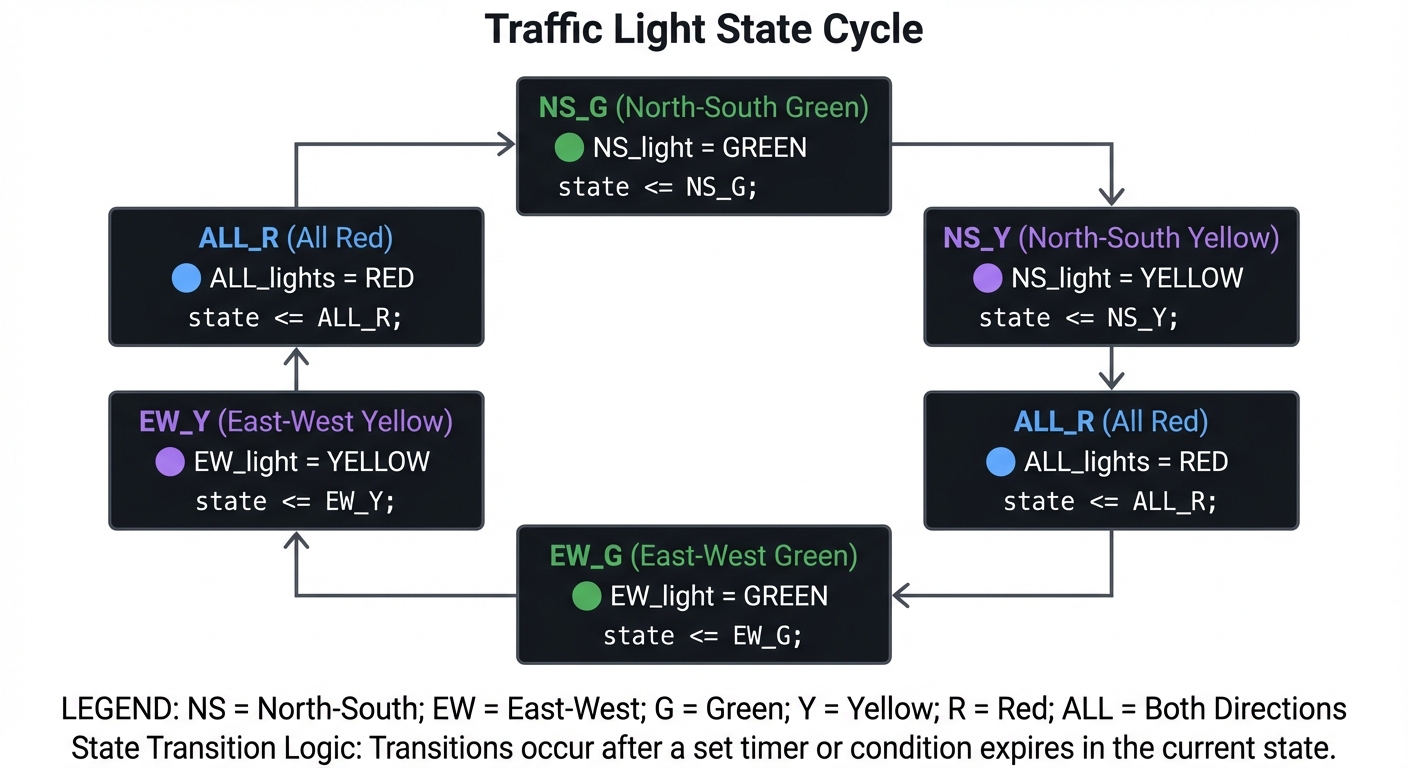

A.3 State Diagram (Text)

NS_G -> NS_Y -> ALL_R -> EW_G -> EW_Y -> ALL_R -> NS_G

Traffic light state cycle

A.4 Deterministic Test Sequence

  • Simulate with a faster clock (e.g., 1 kHz) and scaled timings.
  • Verify each light combination persists for the exact programmed duration.

A.5 Debugging Tip

If two greens are on at once, check that your output logic is Moore-style (based only on state).

13. Deep Dive Appendix

13.1 Timing and Resource Budget

  • Each light duration is a counter running for N seconds of system clock.
  • Add an all-red safety interval to prevent overlaps.
  • Make durations parameters so you can retime without editing FSM logic.

13.2 Waveform Interpretation Guide

  • Verify each state holds for the correct number of cycles.
  • Watch the state register and outputs together to confirm Moore behavior.

Example state order:

NS_green -> NS_yellow -> all_red -> EW_green -> EW_yellow -> all_red

13.3 Hardware Bring-Up Notes

  • Drive 6 LEDs: NS (R/Y/G) and EW (R/Y/G).
  • If using one LED bank, multiplex and label signals to avoid confusion.
  • Slow the clock with a divider so transitions are visible.

13.4 Alternate Implementations and Trade-offs

  • One-hot FSM: more flip-flops, simpler decode.
  • Binary FSM: fewer flip-flops, more combinational decode.
  • Time-encoded FSM: use a single timer plus state register.

13.5 Additional Exercises

  • Add a pedestrian crossing state and pushbutton.
  • Implement night mode flashing yellow.
  • Add sensor input to extend green time when traffic is present.
