Project 6: D Flip-Flop: The Building Block of Memory

Implement a D flip-flop with reset and enable and verify its timing.

Quick Reference

Attribute Value
Difficulty Beginner
Time Estimate 2-3 hours
Main Programming Language Verilog (Alternatives: VHDL, SystemVerilog)
Alternative Programming Languages VHDL, SystemVerilog
Coolness Level Low
Business Potential Low
Prerequisites Clocked logic, Non-blocking assignments
Key Topics Flip-flops, Reset, Enable

1. Learning Objectives

  1. Model edge-triggered storage
  2. Use reset and enable correctly
  3. Read timing waveforms

2. All Theory Needed (Per-Concept Breakdown)

Flip-Flops and Registers

Description/Expanded Explanation of the concept

Flip-flops are the fundamental storage elements in synchronous digital logic. A register is a collection of flip-flops that store multi-bit values. Correct usage requires edge-triggered logic and non-blocking assignments.

Definitions & Key Terms
  • Flip-flop -> edge-triggered storage element
  • Register -> N-bit storage built from flip-flops
  • Reset -> initializes state to known values
Mental Model Diagram (ASCII)
clk edge -> [FF] -> q

Flip-flop clocked output

How It Works (Step-by-Step)
  1. On each clock edge, the flip-flop samples D.
  2. The output Q holds the sampled value until the next edge.
  3. Reset forces Q to a known value.
Minimal Concrete Example
always @(posedge clk) begin
  if (reset) q <= 0;
  else q <= d;
end
Common Misconceptions
  • “reg always means storage.” -> It is a variable that may infer storage.
  • “Blocking assignments are fine for registers.” -> Use non-blocking.
Check-Your-Understanding Questions
  1. Why is non-blocking used for sequential logic?
  2. What is the difference between a latch and a flip-flop?
  3. What is the role of reset?
Where You’ll Apply It
  • This project: used in Section 3.2 and Section 4
  • Also used in: P07-4-bit-updown-counter-with-load.md, P08-shift-register-led-chaser.md

Verification with Testbenches and Waveforms

Description/Expanded Explanation of the concept

Testbenches are simulation-only modules that apply stimulus and check outputs. Waveforms (VCD) are the hardware engineer’s microscope; they reveal timing, glitches, and ordering problems. A good testbench is deterministic and covers edge cases.

Definitions & Key Terms
  • Testbench -> a non-synthesizable module that drives a DUT
  • VCD -> Value Change Dump waveform file
  • Deterministic test -> same inputs produce same outputs every run
Mental Model Diagram (ASCII)
[Testbench] -> [DUT] -> [VCD] -> [GTKWave]

Testbench DUT VCD GTKWave flow

How It Works (Step-by-Step)
  1. Initialize inputs to known values.
  2. Apply stimulus over time.
  3. Dump waveforms and check outputs.
  4. Add assertions or PASS/FAIL messages.
Minimal Concrete Example
initial begin
  $dumpfile("wave.vcd");
  $dumpvars(0, tb);
  a = 0; b = 1; #10;
  $finish;
end
Common Misconceptions
  • “If it simulates once, it’s correct.” -> Cover all relevant cases.
  • “Waveforms are optional.” -> They are often the only way to debug timing.
Check-Your-Understanding Questions
  1. Why keep testbench and DUT separate?
  2. What is the purpose of $dumpvars?
  3. How do you make a testbench deterministic?
Where You’ll Apply It
  • This project: used throughout Section 6 (testing)
  • Also used in: all other projects in this folder

3. Project Specification

3.1 What You Will Build

A D flip-flop with synchronous reset and enable plus a testbench.

3.2 Functional Requirements

  1. Requirement 1: Update Q only on clock edges
  2. Requirement 2: Reset Q to known value
  3. Requirement 3: Hold Q when enable is low

3.3 Non-Functional Requirements

  • Performance: Stable operation at the target clock and interfaces.
  • Reliability: Deterministic outputs on all defined inputs.
  • Usability: Clear ports and documented behavior.

3.4 Example Usage / Output

{p['example_usage']}

3.5 Data Formats / Schemas / Protocols

{p[‘data_format’]}

3.6 Edge Cases

  • Reset asserted mid-cycle
  • Enable low

3.7 Real World Outcome

3.7.1 How to Run (Copy/Paste)

vvp dff_tb

3.7.2 Golden Path Demo (Deterministic)

Run the demo command above with the provided testbench and confirm the outputs match the golden transcript.

3.7.3 CLI Transcript

t=0 reset=1 q=0
t=10 d=1 en=1 q=1

3.7.4 Failure Demo (Expected)

# Example failure case
ERROR: Output mismatch at vector 3
Expected: 0x0A, Got: 0x0B
EXIT CODE: 1

Notes:

  • Exit code 0 indicates all tests passed
  • Exit code 1 indicates a test failure

4. Solution Architecture

4.1 High-Level Design

[inputs] -> [core logic] -> [outputs]

Core logic flow

4.2 Key Components

Component Responsibility
dff Clocked storage element

4.3 Data Structures (No Full Code)

// Example signals (adapt to your design)
reg [7:0] state_reg;
reg [7:0] data_reg;

4.4 Algorithm Overview

Key Algorithm: Core control flow

  1. Initialize state/reset conditions.
  2. Apply inputs and compute outputs.
  3. Update state on clock edges (if sequential).

Complexity Analysis:

  • Time: O(1) per cycle
  • Space: O(N) for registers and logic

5. Implementation Guide

5.1 Development Environment Setup

iverilog -v
# Ensure GTKWave is installed for waveform viewing

5.2 Project Structure

project-root/
|-- src/
|   |-- top.v
|   |-- core.v
|-- tb/
|   |-- tb.v
|-- Makefile
|-- README.md

Project folder structure

5.3 The Core Question You’re Answering

“How does hardware remember a value from one clock edge to the next?”

5.4 Concepts You Must Understand First

  • Clocked logic
  • Non-blocking assignments

5.5 Questions to Guide Your Design

  • Do you prefer sync or async reset?
  • What happens if reset deasserts near the clock edge?

5.6 Thinking Exercise

Draw clk, d, en, reset, q and predict q at each edge.

5.7 The Interview Questions They’ll Ask

  • Why use non-blocking assignments?
  • Latch vs flip-flop?

5.8 Hints in Layers

  • Start with always @(posedge clk).
  • Add reset first, then enable.

5.9 Books That Will Help

Topic Book Chapter
Sequential logic Digital Design and Computer Architecture Ch. 3

5.10 Implementation Phases

Phase 1: Foundation

Goals:

  • Establish core module structure
  • Implement minimal behavior

Tasks:

  1. Scaffold module ports and internal signals
  2. Write a minimal testbench that compiles

Checkpoint: Simulation runs without errors

Phase 2: Core Functionality

Goals:

  • Implement full logic
  • Verify edge cases

Tasks:

  1. Complete core logic
  2. Add directed tests for edge cases

Checkpoint: All tests pass and waveforms match expectations

Phase 3: Polish & Edge Cases

Goals:

  • Improve readability
  • Document behavior

Tasks:

  1. Add comments and README notes
  2. Expand tests for unusual inputs

Checkpoint: Design is deterministic and documented

5.11 Key Implementation Decisions

Decision Options Recommendation Rationale
Reset strategy Sync / Async Sync Simpler timing closure
Test coverage Directed / Exhaustive Exhaustive for small logic Prevents missed cases

6. Testing Strategy

6.1 Test Categories

Category Purpose Examples
Unit Tests Test core logic Small vectors
Integration Tests Test modules together Full system
Edge Case Tests Boundary conditions Max/min values

6.2 Critical Test Cases

  1. Test 1: Confirm q updates only on edges
  2. Test 2: Confirm reset overrides d

6.3 Test Data

Use deterministic vectors and document expected outputs.

7. Common Pitfalls & Debugging

7.1 Frequent Mistakes

Pitfall Symptom Solution
Combinational assignment Q changes between edges Move logic into clocked block

7.2 Debugging Strategies

  • Inspect waveforms at key internal signals
  • Add temporary debug outputs to verify state
  • Reduce testcases to the smallest failing case

7.3 Performance Traps

  • Overly wide counters or combinational paths can reduce max clock

8. Extensions & Challenges

8.1 Beginner Extensions

  • Add parameterization for widths
  • Add optional features (enable, reset)

8.2 Intermediate Extensions

  • Add configuration registers
  • Build a simple driver or demo program

8.3 Advanced Extensions

  • Integrate with another project in this series
  • Implement a hardware demo on FPGA

9. Real-World Connections

9.1 Industry Applications

  • Digital control systems and embedded peripherals
  • FPGA prototyping and validation
  • Yosys / nextpnr toolchain for open-source FPGA flow
  • Example HDL projects in the FPGA community

9.3 Interview Relevance

  • Demonstrates RTL thinking and verification skills

10. Resources

10.1 Essential Reading

  • Digital Design and Computer Architecture - Focus on Ch. 3

10.2 Video Resources

  • Search for project-specific HDL walkthroughs and waveforms

10.3 Tools & Documentation

  • Icarus Verilog
  • GTKWave
  • See adjacent projects in VERILOG_FROM_ZERO_PROJECTS/

11. Self-Assessment Checklist

11.1 Understanding

  • I can explain the core concept without notes
  • I can predict waveform behavior for basic inputs

11.2 Implementation

  • All functional requirements are met
  • All tests pass
  • Edge cases are documented

11.3 Growth

  • I can explain this project in an interview
  • I documented at least one lesson learned

12. Submission / Completion Criteria

Minimum Viable Completion:

  • Functional requirements implemented
  • Testbench passes
  • Waveforms inspected

Full Completion:

  • All minimum criteria plus
  • Edge cases covered and documented

Excellence (Going Above & Beyond):

  • Hardware demo on FPGA
  • Clear write-up of lessons learned

    Appendix A: Deep Dive Walkthrough

A.1 Signal Map and Invariants

  • Inputs: clk, reset, d
  • Output: q

Invariant: q only changes on the active clock edge (or immediately on async reset).

A.2 Timing Sketch

clk:  _/\_/\_/\_/\_
 d :  0__11____0__
 q :  0__11____0__  (updates on rising edges)

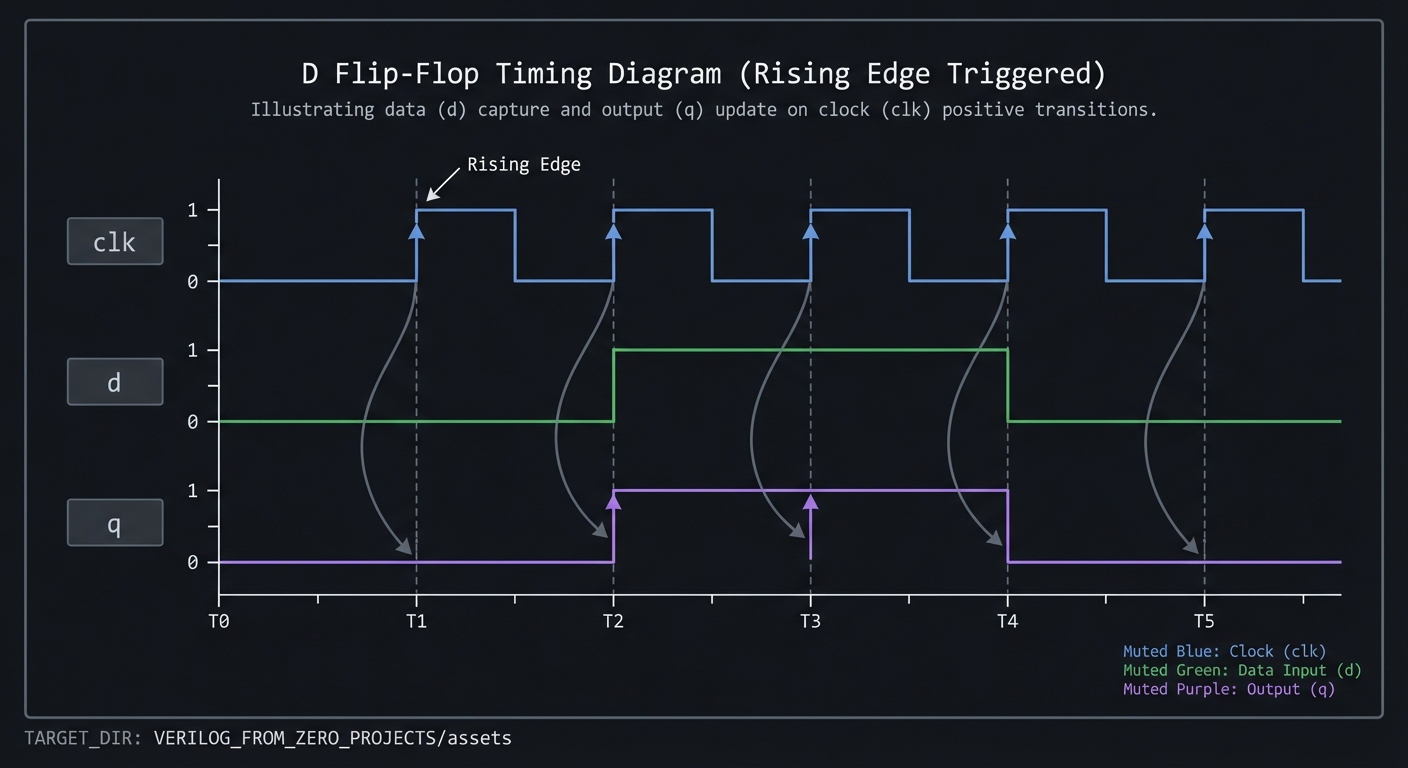

D flip-flop timing waveform

A.3 Reset Semantics (Choose One)

  • Synchronous: reset sampled on posedge clk.
  • Asynchronous: reset in sensitivity list, immediate update.

Document your choice and verify with a dedicated test.

A.4 Deterministic Test Sequence

  1. Hold reset high for 2 cycles -> expect q=0.
  2. Deassert reset, drive d=1 before edge -> q becomes 1 on next edge.
  3. Toggle d mid-cycle -> q unchanged until edge.

A.5 Debugging Tip

If q glitches, you likely used blocking assignments or mixed reset logic.

13. Deep Dive Appendix

13.1 Timing and Resource Budget

  • Flip-flops sample on the clock edge and ignore changes between edges.
  • Respect setup/hold around the clock edge; violating them causes metastability.
  • In FPGA, a DFF is a native resource, so timing is dominated by the input path.

13.2 Waveform Interpretation Guide

  • Q should change only on rising edges of clk.
  • Reset should force Q to a known state immediately (async) or at the next clock (sync).
  • If Q toggles without a clock edge, you accidentally built a latch.

Example timeline:

clk:  _/\_/\_/\_
d:    0  1  0  1
q:    0  1  1  0  (changes only at edges)

13.3 Hardware Bring-Up Notes

  • Use a slow clock (divider) so you can see Q changes on LEDs.
  • Tie D to a switch and Q to an LED.
  • If using a button for reset, debounce it or expect multiple resets.

13.4 Alternate Implementations and Trade-offs

  • Add an enable (clock gating or mux on D) to control updates.
  • Implement a T flip-flop by feeding D = ~Q.
  • Implement a JK flip-flop to explore classic sequential logic.

13.5 Additional Exercises

  • Build an 8-bit register from 8 DFFs.
  • Add sync vs async reset variants and compare waveforms.
  • Build a pulse-stretching circuit using a DFF and combinational logic.
