Project 4: 4-bit Ripple Carry Adder

Build a chain of full adders and observe carry propagation.

Quick Reference

Attribute Value
Difficulty Beginner-Intermediate
Time Estimate 4-5 hours
Main Programming Language Verilog (Alternatives: VHDL, SystemVerilog)
Alternative Programming Languages VHDL, SystemVerilog
Coolness Level Medium
Business Potential Low
Prerequisites Full adder logic, Module hierarchy
Key Topics Carry propagation, Structural design

1. Learning Objectives

  1. Implement a full adder
  2. Chain full adders into a ripple adder
  3. Validate carry propagation in waveforms

2. All Theory Needed (Per-Concept Breakdown)

Adders and Two’s Complement Arithmetic

Description/Expanded Explanation of the concept

Adders are the core of arithmetic hardware. Two’s complement lets the same adder perform subtraction by inverting and adding one. Carry propagation defines speed for ripple adders and is the main timing cost.

Definitions & Key Terms
  • Full adder -> adds a, b, and carry-in
  • Two’s complement -> negate by invert + 1
  • Carry propagation -> carry ripples through bit positions
Mental Model Diagram (ASCII)
[A0+B0] -> c1 -> [A1+B1] -> c2 -> [A2+B2] -> c3

Ripple-carry chain

How It Works (Step-by-Step)
  1. Build a 1-bit full adder.
  2. Chain full adders for N-bit addition.
  3. For subtraction, invert B and add 1.
  4. Verify carry and overflow behavior.
Minimal Concrete Example
assign {c_out, sum} = a + b + c_in;
Common Misconceptions
  • “Carry and overflow are the same.” -> They differ for signed numbers.
  • “Ripple carry is always fine.” -> It can be too slow for high speeds.
Check-Your-Understanding Questions
  1. How do you compute a - b using an adder?
  2. Why is carry a timing bottleneck?
  3. What is the difference between carry and overflow?
Where You’ll Apply It
  • This project: used in Section 3.2 and Section 4 (architecture)
  • Also used in: P05-8-bit-alu-arithmetic-logic-unit.md, P19-calculator-with-7-segment-display.md

Combinational Logic Modeling

Description/Expanded Explanation of the concept

Combinational logic produces outputs that depend only on current inputs. In Verilog, this is modeled using assign or always @(*) blocks. The key rule is that every output must be assigned for every input condition, otherwise you create unintended storage (latches).

Definitions & Key Terms
  • Combinational logic -> outputs depend only on current inputs
  • Continuous assignment -> assign for wire-driven logic
  • Latch -> unintended storage inferred by incomplete assignments
Mental Model Diagram (ASCII)
inputs --> [logic] --> outputs

Inputs to logic to outputs

How It Works (Step-by-Step)
  1. Choose assign for simple logic or always @(*) for complex logic.
  2. Ensure outputs are assigned in all branches.
  3. Verify with exhaustive or directed tests.
Minimal Concrete Example
always @(*) begin
  if (sel) y = b; else y = a;
end
Common Misconceptions
  • “Missing default just means don’t care.” -> It creates a latch.
  • “Blocking assignments are always wrong.” -> They are correct in combinational blocks.
Check-Your-Understanding Questions
  1. What hardware does an if/else create?
  2. Why does a missing default create storage?
  3. When should you use assign vs always @(*)?
Where You’ll Apply It
  • This project: used in Section 3.2 and Section 5.3
  • Also used in: P01-digital-gate-library.md, P03-7-segment-display-decoder.md, P04-4-bit-ripple-carry-adder.md

Verification with Testbenches and Waveforms

Description/Expanded Explanation of the concept

Testbenches are simulation-only modules that apply stimulus and check outputs. Waveforms (VCD) are the hardware engineer’s microscope; they reveal timing, glitches, and ordering problems. A good testbench is deterministic and covers edge cases.

Definitions & Key Terms
  • Testbench -> a non-synthesizable module that drives a DUT
  • VCD -> Value Change Dump waveform file
  • Deterministic test -> same inputs produce same outputs every run
Mental Model Diagram (ASCII)
[Testbench] -> [DUT] -> [VCD] -> [GTKWave]

Testbench DUT VCD GTKWave flow

How It Works (Step-by-Step)
  1. Initialize inputs to known values.
  2. Apply stimulus over time.
  3. Dump waveforms and check outputs.
  4. Add assertions or PASS/FAIL messages.
Minimal Concrete Example
initial begin
  $dumpfile("wave.vcd");
  $dumpvars(0, tb);
  a = 0; b = 1; #10;
  $finish;
end
Common Misconceptions
  • “If it simulates once, it’s correct.” -> Cover all relevant cases.
  • “Waveforms are optional.” -> They are often the only way to debug timing.
Check-Your-Understanding Questions
  1. Why keep testbench and DUT separate?
  2. What is the purpose of $dumpvars?
  3. How do you make a testbench deterministic?
Where You’ll Apply It
  • This project: used throughout Section 6 (testing)
  • Also used in: all other projects in this folder

3. Project Specification

3.1 What You Will Build

A 4-bit ripple-carry adder with carry-in and carry-out.

3.2 Functional Requirements

  1. Requirement 1: Support 4-bit inputs with carry-in
  2. Requirement 2: Produce sum and carry-out
  3. Requirement 3: Test with vectors that exercise long carries

3.3 Non-Functional Requirements

  • Performance: Stable operation at the target clock and interfaces.
  • Reliability: Deterministic outputs on all defined inputs.
  • Usability: Clear ports and documented behavior.

3.4 Example Usage / Output

{p['example_usage']}

3.5 Data Formats / Schemas / Protocols

{p[‘data_format’]}

3.6 Edge Cases

  • Carry-out on max values
  • Overflow behavior

3.7 Real World Outcome

3.7.1 How to Run (Copy/Paste)

vvp adder_tb

3.7.2 Golden Path Demo (Deterministic)

Run the demo command above with the provided testbench and confirm the outputs match the golden transcript.

3.7.3 CLI Transcript

3 + 5 = 8 (carry=0)
15 + 1 = 0 (carry=1)

3.7.4 Failure Demo (Expected)

# Example failure case
ERROR: Output mismatch at vector 3
Expected: 0x0A, Got: 0x0B
EXIT CODE: 1

Notes:

  • Exit code 0 indicates all tests passed
  • Exit code 1 indicates a test failure

4. Solution Architecture

4.1 High-Level Design

[inputs] -> [core logic] -> [outputs]

Core logic flow

4.2 Key Components

Component Responsibility
full_adder 1-bit adder logic
adder4 Chain of four full adders

4.3 Data Structures (No Full Code)

// Example signals (adapt to your design)
reg [7:0] state_reg;
reg [7:0] data_reg;

4.4 Algorithm Overview

Key Algorithm: Core control flow

  1. Initialize state/reset conditions.
  2. Apply inputs and compute outputs.
  3. Update state on clock edges (if sequential).

Complexity Analysis:

  • Time: O(1) per cycle
  • Space: O(N) for registers and logic

5. Implementation Guide

5.1 Development Environment Setup

iverilog -v
# Ensure GTKWave is installed for waveform viewing

5.2 Project Structure

project-root/
|-- src/
|   |-- top.v
|   |-- core.v
|-- tb/
|   |-- tb.v
|-- Makefile
|-- README.md

Project folder structure

5.3 The Core Question You’re Answering

“Why does carry ripple, and how does that affect timing?”

5.4 Concepts You Must Understand First

  • Full adder logic
  • Module hierarchy

5.5 Questions to Guide Your Design

  • Do you want behavioral or structural style?
  • How will you expose carry-out?

5.6 Thinking Exercise

Draw the 4 full adders and mark the carry chain.

5.7 The Interview Questions They’ll Ask

  • Why is ripple carry slower than carry-lookahead?
  • What is the critical path?
  • How do you detect overflow?

5.8 Hints in Layers

  • Write a 1-bit full adder first.
  • Chain carries from bit 0 to bit 3.

5.9 Books That Will Help

Topic Book Chapter
Adders Digital Design and Computer Architecture Ch. 2

5.10 Implementation Phases

Phase 1: Foundation

Goals:

  • Establish core module structure
  • Implement minimal behavior

Tasks:

  1. Scaffold module ports and internal signals
  2. Write a minimal testbench that compiles

Checkpoint: Simulation runs without errors

Phase 2: Core Functionality

Goals:

  • Implement full logic
  • Verify edge cases

Tasks:

  1. Complete core logic
  2. Add directed tests for edge cases

Checkpoint: All tests pass and waveforms match expectations

Phase 3: Polish & Edge Cases

Goals:

  • Improve readability
  • Document behavior

Tasks:

  1. Add comments and README notes
  2. Expand tests for unusual inputs

Checkpoint: Design is deterministic and documented

5.11 Key Implementation Decisions

Decision Options Recommendation Rationale
Reset strategy Sync / Async Sync Simpler timing closure
Test coverage Directed / Exhaustive Exhaustive for small logic Prevents missed cases

6. Testing Strategy

6.1 Test Categories

Category Purpose Examples
Unit Tests Test core logic Small vectors
Integration Tests Test modules together Full system
Edge Case Tests Boundary conditions Max/min values

6.2 Critical Test Cases

  1. Test 1: Exhaustive test for all 256 input pairs
  2. Test 2: Check carry-out for 0xF + 0x1

6.3 Test Data

Use deterministic vectors and document expected outputs.

7. Common Pitfalls & Debugging

7.1 Frequent Mistakes

Pitfall Symptom Solution
Carry wired wrong Sum incorrect on high values Verify carry chain

7.2 Debugging Strategies

  • Inspect waveforms at key internal signals
  • Add temporary debug outputs to verify state
  • Reduce testcases to the smallest failing case

7.3 Performance Traps

  • Overly wide counters or combinational paths can reduce max clock

8. Extensions & Challenges

8.1 Beginner Extensions

  • Add parameterization for widths
  • Add optional features (enable, reset)

8.2 Intermediate Extensions

  • Add configuration registers
  • Build a simple driver or demo program

8.3 Advanced Extensions

  • Integrate with another project in this series
  • Implement a hardware demo on FPGA

9. Real-World Connections

9.1 Industry Applications

  • Digital control systems and embedded peripherals
  • FPGA prototyping and validation
  • Yosys / nextpnr toolchain for open-source FPGA flow
  • Example HDL projects in the FPGA community

9.3 Interview Relevance

  • Demonstrates RTL thinking and verification skills

10. Resources

10.1 Essential Reading

  • Digital Design and Computer Architecture - Focus on Ch. 2

10.2 Video Resources

  • Search for project-specific HDL walkthroughs and waveforms

10.3 Tools & Documentation

  • Icarus Verilog
  • GTKWave
  • See adjacent projects in VERILOG_FROM_ZERO_PROJECTS/

11. Self-Assessment Checklist

11.1 Understanding

  • I can explain the core concept without notes
  • I can predict waveform behavior for basic inputs

11.2 Implementation

  • All functional requirements are met
  • All tests pass
  • Edge cases are documented

11.3 Growth

  • I can explain this project in an interview
  • I documented at least one lesson learned

12. Submission / Completion Criteria

Minimum Viable Completion:

  • Functional requirements implemented
  • Testbench passes
  • Waveforms inspected

Full Completion:

  • All minimum criteria plus
  • Edge cases covered and documented

Excellence (Going Above & Beyond):

  • Hardware demo on FPGA
  • Clear write-up of lessons learned

    Appendix A: Deep Dive Walkthrough

A.1 Signal Map and Invariants

  • Inputs: a[3:0], b[3:0], cin
  • Outputs: sum[3:0], cout

Invariant: {cout,sum} == a + b + cin for all input values.

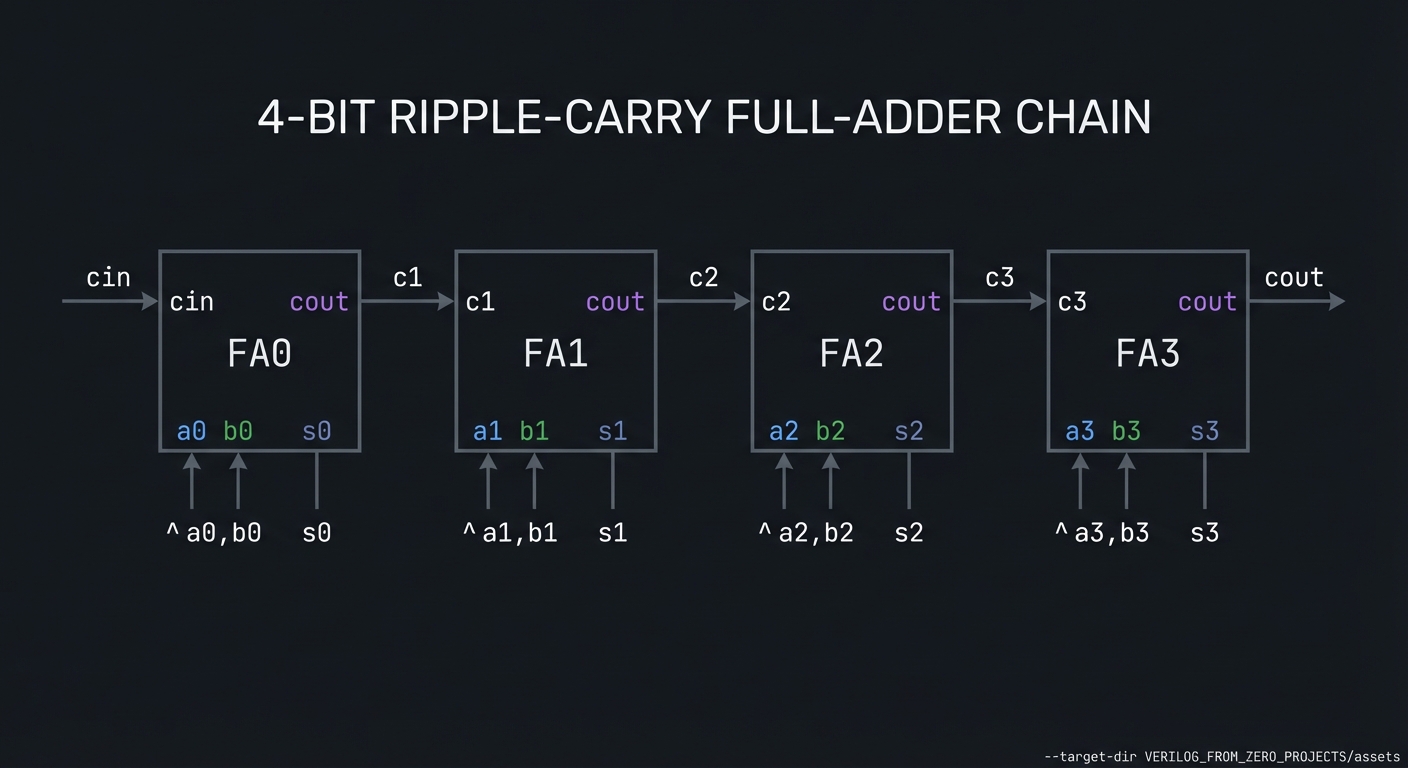

A.2 Ripple Chain Diagram

cin -> FA0 -> c1 -> FA1 -> c2 -> FA2 -> c3 -> FA3 -> cout
        ^ a0,b0     ^ a1,b1     ^ a2,b2     ^ a3,b3

4-bit full-adder chain

A.3 Critical Path Note

  • Worst-case carry propagates through all 4 full adders.
  • This is why ripple-carry is simple but slow for wide adders.

A.4 Deterministic Vector Set

| a | b | cin | sum | cout | |——|——|—–|——|——| | 0000 | 0000 | 0 | 0000 | 0 | | 0001 | 0001 | 0 | 0010 | 0 | | 1111 | 0001 | 0 | 0000 | 1 | | 1010 | 0101 | 1 | 0000 | 1 |

A.5 Waveform Debug Tips

  • Probe every internal carry bit (c1,c2,c3) to see propagation.
  • If sum is wrong for only some inputs, check bit ordering.

13. Deep Dive Appendix

13.1 Timing and Resource Budget

  • Ripple carry delay grows linearly with width. For 4 bits, it is small; for 32 bits, it dominates.
  • On FPGAs, adders often map to fast carry chains, reducing delay but still sequential in nature.
  • Use this project to reason about critical path and why faster adder families exist.

13.2 Waveform Interpretation Guide

  • Watch carry propagate from bit 0 to bit 3 on an input that triggers it (e.g., 0x0F + 0x01).
  • Confirm that sum updates immediately after inputs change.

Example:

a=1111 b=0001 -> sum=0000 carry_out=1

13.3 Hardware Bring-Up Notes

  • Map a[3:0], b[3:0] to switches and sum[3:0] to LEDs.
  • Optionally show carry_out on a separate LED.
  • Use a fixed clock? Not needed, this is combinational.

13.4 Alternate Implementations and Trade-offs

  • Structural: chain full adders explicitly.
  • Behavioral: assign {cout,sum} = a + b; (simple, synthesizes to carry chain).
  • Carry lookahead: implement a 4-bit CLA and compare timing.

13.5 Additional Exercises

  • Add a signed overflow flag for two’s complement addition.
  • Parameterize the width and generate N-bit adders.
  • Create a subtractor using two’s complement and reuse the adder.
