Project 2: 4-to-1 Multiplexer

Build a 4-to-1 mux with select lines and a complete testbench.

Quick Reference

Attribute Value
Difficulty Beginner
Time Estimate 2-3 hours
Main Programming Language Verilog (Alternatives: VHDL, SystemVerilog)
Alternative Programming Languages VHDL, SystemVerilog
Coolness Level Low
Business Potential Low
Prerequisites Combinational logic, Case statements, Truth tables
Key Topics MUX design, Case logic, Latch avoidance

1. Learning Objectives

  1. Implement combinational selection logic
  2. Avoid latch inference in always blocks
  3. Write a testbench that explores select combinations

2. All Theory Needed (Per-Concept Breakdown)

Combinational Logic Modeling

Description/Expanded Explanation of the concept

Combinational logic produces outputs that depend only on current inputs. In Verilog, this is modeled using assign or always @(*) blocks. The key rule is that every output must be assigned for every input condition, otherwise you create unintended storage (latches).

Definitions & Key Terms
  • Combinational logic -> outputs depend only on current inputs
  • Continuous assignment -> assign for wire-driven logic
  • Latch -> unintended storage inferred by incomplete assignments
Mental Model Diagram (ASCII)
inputs --> [logic] --> outputs

Inputs to logic to outputs

How It Works (Step-by-Step)
  1. Choose assign for simple logic or always @(*) for complex logic.
  2. Ensure outputs are assigned in all branches.
  3. Verify with exhaustive or directed tests.
Minimal Concrete Example
always @(*) begin
  if (sel) y = b; else y = a;
end
Common Misconceptions
  • “Missing default just means don’t care.” -> It creates a latch.
  • “Blocking assignments are always wrong.” -> They are correct in combinational blocks.
Check-Your-Understanding Questions
  1. What hardware does an if/else create?
  2. Why does a missing default create storage?
  3. When should you use assign vs always @(*)?
Where You’ll Apply It
  • This project: used in Section 3.2 and Section 5.3
  • Also used in: P01-digital-gate-library.md, P03-7-segment-display-decoder.md, P04-4-bit-ripple-carry-adder.md

Boolean Algebra and Truth Tables

Description/Expanded Explanation of the concept

Boolean algebra is the math of digital logic. A truth table is the exact, exhaustive mapping from inputs to outputs. In hardware, there is no “default” or “implicit” behavior: every input combination must map to a defined output. This is the foundation of reliable combinational circuits.

Definitions & Key Terms
  • Boolean algebra -> algebra of 0/1 variables with AND/OR/NOT operators
  • Truth table -> exhaustive input/output mapping
  • Minterm -> AND of variables producing 1 for one input combination
  • Maxterm -> OR of variables producing 0 for one input combination
Mental Model Diagram (ASCII)
Inputs -> [Truth Table] -> Boolean Expression -> Gates

Truth table to gates flow

How It Works (Step-by-Step)
  1. List all input combinations.
  2. Mark which combinations should produce 1.
  3. Translate the table into an expression or directly into gates.
  4. Verify with exhaustive simulation.
Minimal Concrete Example
// AND gate truth table: y = a & b
assign y = a & b;
Common Misconceptions
  • “If it works for some cases, it’s fine.” -> All cases must be correct.
  • “Truth tables are only for beginners.” -> They remain the most reliable spec.
Check-Your-Understanding Questions
  1. What output should an XOR produce for inputs 01 and 10?
  2. How many rows does a truth table have for 4 inputs?
  3. Explain why a missing row is a bug in hardware.
Where You’ll Apply It
  • This project: used in Section 3.2 (functional requirements) and Section 6 (testing)
  • Also used in: P02-4-to-1-multiplexer.md, P03-7-segment-display-decoder.md

Verification with Testbenches and Waveforms

Description/Expanded Explanation of the concept

Testbenches are simulation-only modules that apply stimulus and check outputs. Waveforms (VCD) are the hardware engineer’s microscope; they reveal timing, glitches, and ordering problems. A good testbench is deterministic and covers edge cases.

Definitions & Key Terms
  • Testbench -> a non-synthesizable module that drives a DUT
  • VCD -> Value Change Dump waveform file
  • Deterministic test -> same inputs produce same outputs every run
Mental Model Diagram (ASCII)
[Testbench] -> [DUT] -> [VCD] -> [GTKWave]

Testbench DUT VCD GTKWave flow

How It Works (Step-by-Step)
  1. Initialize inputs to known values.
  2. Apply stimulus over time.
  3. Dump waveforms and check outputs.
  4. Add assertions or PASS/FAIL messages.
Minimal Concrete Example
initial begin
  $dumpfile("wave.vcd");
  $dumpvars(0, tb);
  a = 0; b = 1; #10;
  $finish;
end
Common Misconceptions
  • “If it simulates once, it’s correct.” -> Cover all relevant cases.
  • “Waveforms are optional.” -> They are often the only way to debug timing.
Check-Your-Understanding Questions
  1. Why keep testbench and DUT separate?
  2. What is the purpose of $dumpvars?
  3. How do you make a testbench deterministic?
Where You’ll Apply It
  • This project: used throughout Section 6 (testing)
  • Also used in: all other projects in this folder

3. Project Specification

3.1 What You Will Build

A 4-to-1 multiplexer with select input and testbench verifying all select values.

3.2 Functional Requirements

  1. Requirement 1: Select one of four inputs based on a 2-bit select
  2. Requirement 2: Define behavior for invalid select (default)
  3. Requirement 3: Produce waveforms that show clean routing

3.3 Non-Functional Requirements

  • Performance: Stable operation at the target clock and interfaces.
  • Reliability: Deterministic outputs on all defined inputs.
  • Usability: Clear ports and documented behavior.

3.4 Example Usage / Output

{p['example_usage']}

3.5 Data Formats / Schemas / Protocols

{p[‘data_format’]}

3.6 Edge Cases

  • Select X/Z
  • Default path coverage

3.7 Real World Outcome

3.7.1 How to Run (Copy/Paste)

vvp mux_tb

3.7.2 Golden Path Demo (Deterministic)

Run the demo command above with the provided testbench and confirm the outputs match the golden transcript.

3.7.3 CLI Transcript

sel=00 -> y=a
sel=01 -> y=b
sel=10 -> y=c
sel=11 -> y=d

3.7.4 Failure Demo (Expected)

# Example failure case
ERROR: Output mismatch at vector 3
Expected: 0x0A, Got: 0x0B
EXIT CODE: 1

Notes:

  • Exit code 0 indicates all tests passed
  • Exit code 1 indicates a test failure

4. Solution Architecture

4.1 High-Level Design

[inputs] -> [core logic] -> [outputs]

Core logic flow

4.2 Key Components

Component Responsibility
mux4 Combinational mux logic
mux_tb Testbench with select sweep

4.3 Data Structures (No Full Code)

// Example signals (adapt to your design)
reg [7:0] state_reg;
reg [7:0] data_reg;

4.4 Algorithm Overview

Key Algorithm: Core control flow

  1. Initialize state/reset conditions.
  2. Apply inputs and compute outputs.
  3. Update state on clock edges (if sequential).

Complexity Analysis:

  • Time: O(1) per cycle
  • Space: O(N) for registers and logic

5. Implementation Guide

5.1 Development Environment Setup

iverilog -v
# Ensure GTKWave is installed for waveform viewing

5.2 Project Structure

project-root/
|-- src/
|   |-- top.v
|   |-- core.v
|-- tb/
|   |-- tb.v
|-- Makefile
|-- README.md

Project folder structure

5.3 The Core Question You’re Answering

“How does hardware choose one signal from many?”

5.4 Concepts You Must Understand First

  • Combinational logic
  • Case statements
  • Truth tables

5.5 Questions to Guide Your Design

  • What should happen if sel is X?
  • Should the output default to a known safe value?

5.6 Thinking Exercise

Draw a 4-to-1 mux using AND/OR gates and label select inversions.

5.7 The Interview Questions They’ll Ask

  • What hardware does an if/else create?
  • Why is a default case required?
  • What is a priority mux?

5.8 Hints in Layers

  • Use a case statement with all 4 select values.
  • Assign output in every branch.
  • Add a default assignment for safety.

5.9 Books That Will Help

Topic Book Chapter
Combinational logic Digital Design and Computer Architecture Ch. 2
Verilog case statements Digital Design and Computer Architecture Ch. 4

5.10 Implementation Phases

Phase 1: Foundation

Goals:

  • Establish core module structure
  • Implement minimal behavior

Tasks:

  1. Scaffold module ports and internal signals
  2. Write a minimal testbench that compiles

Checkpoint: Simulation runs without errors

Phase 2: Core Functionality

Goals:

  • Implement full logic
  • Verify edge cases

Tasks:

  1. Complete core logic
  2. Add directed tests for edge cases

Checkpoint: All tests pass and waveforms match expectations

Phase 3: Polish & Edge Cases

Goals:

  • Improve readability
  • Document behavior

Tasks:

  1. Add comments and README notes
  2. Expand tests for unusual inputs

Checkpoint: Design is deterministic and documented

5.11 Key Implementation Decisions

Decision Options Recommendation Rationale
Reset strategy Sync / Async Sync Simpler timing closure
Test coverage Directed / Exhaustive Exhaustive for small logic Prevents missed cases

6. Testing Strategy

6.1 Test Categories

Category Purpose Examples
Unit Tests Test core logic Small vectors
Integration Tests Test modules together Full system
Edge Case Tests Boundary conditions Max/min values

6.2 Critical Test Cases

  1. Test 1: Verify output for all 4 select values
  2. Test 2: Toggle select mid-cycle and confirm output updates
  3. Test 3: Check for latches in synthesis warnings

6.3 Test Data

Use deterministic vectors and document expected outputs.

7. Common Pitfalls & Debugging

7.1 Frequent Mistakes

Pitfall Symptom Solution
Latch inference Output holds old value Assign output in every branch

7.2 Debugging Strategies

  • Inspect waveforms at key internal signals
  • Add temporary debug outputs to verify state
  • Reduce testcases to the smallest failing case

7.3 Performance Traps

  • Overly wide counters or combinational paths can reduce max clock

8. Extensions & Challenges

8.1 Beginner Extensions

  • Add parameterization for widths
  • Add optional features (enable, reset)

8.2 Intermediate Extensions

  • Add configuration registers
  • Build a simple driver or demo program

8.3 Advanced Extensions

  • Integrate with another project in this series
  • Implement a hardware demo on FPGA

9. Real-World Connections

9.1 Industry Applications

  • Digital control systems and embedded peripherals
  • FPGA prototyping and validation
  • Yosys / nextpnr toolchain for open-source FPGA flow
  • Example HDL projects in the FPGA community

9.3 Interview Relevance

  • Demonstrates RTL thinking and verification skills

10. Resources

10.1 Essential Reading

  • Digital Design and Computer Architecture - Focus on Ch. 2
  • Digital Design and Computer Architecture - Focus on Ch. 4

10.2 Video Resources

  • Search for project-specific HDL walkthroughs and waveforms

10.3 Tools & Documentation

  • Icarus Verilog
  • GTKWave
  • See adjacent projects in VERILOG_FROM_ZERO_PROJECTS/

11. Self-Assessment Checklist

11.1 Understanding

  • I can explain the core concept without notes
  • I can predict waveform behavior for basic inputs

11.2 Implementation

  • All functional requirements are met
  • All tests pass
  • Edge cases are documented

11.3 Growth

  • I can explain this project in an interview
  • I documented at least one lesson learned

12. Submission / Completion Criteria

Minimum Viable Completion:

  • Functional requirements implemented
  • Testbench passes
  • Waveforms inspected

Full Completion:

  • All minimum criteria plus
  • Edge cases covered and documented

Excellence (Going Above & Beyond):

  • Hardware demo on FPGA
  • Clear write-up of lessons learned

    Appendix A: Deep Dive Walkthrough

A.1 Signal Map and Invariants

  • Inputs: d0, d1, d2, d3, sel[1:0]
  • Output: y

Invariant: y == d{sel} for all sel values.

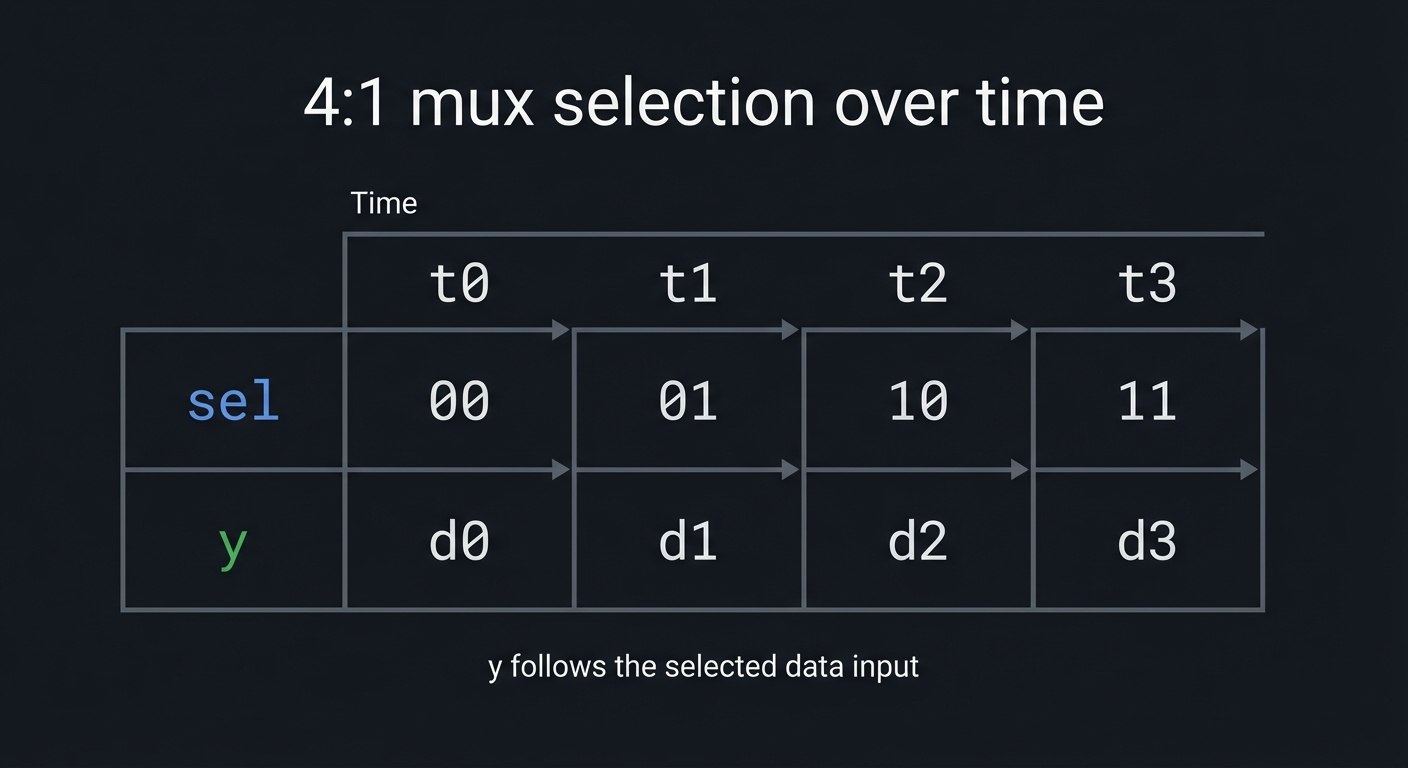

A.2 Truth Table (Binary Select)

| sel | y | |—–|—-| | 00 | d0 | | 01 | d1 | | 10 | d2 | | 11 | d3 |

A.3 Timing Sketch

Time: t0 t1 t2 t3
sel:  00 01 10 11
y:    d0 d1 d2 d3

4:1 mux selection over time

A.4 Implementation Options and Trade-offs

  • Case statement: clear and synthesizes to a mux.
  • Ternary chain: compact but can be harder to read.
  • One-hot select: easier to debug but uses more logic.

A.5 Testbench Vector Set (Deterministic)

  • Set all inputs to unique values: d0=8'hA0, d1=8'hB1, d2=8'hC2, d3=8'hD3.
  • Sweep sel from 0 to 3 and verify output equals the selected input.

A.6 Waveform Debug Tips

  • If y glitches, confirm sel changes are not overlapping with input toggles.
  • If y shows X, ensure all inputs are initialized.

13. Deep Dive Appendix

13.1 Timing and Resource Budget

  • A 4-to-1 mux is typically two LUT levels (two 2-to-1 muxes feeding a final mux).
  • Glitches can appear if select changes while inputs toggle. In purely combinational logic, this is normal.
  • For FPGA targets, the mux maps efficiently into LUTs; the critical path is usually the select decoding.

13.2 Waveform Interpretation Guide

  • Verify that y tracks d0..d3 based on sel with no clock required.
  • If using a case, ensure there is a default so y is always driven.

Minimal trace:

sel=00 -> y=d0
sel=01 -> y=d1
sel=10 -> y=d2
sel=11 -> y=d3

13.3 Hardware Bring-Up Notes

  • Connect d0..d3 to four switches, sel[1:0] to two switches.
  • Connect y to one LED. Flip switches to see output routing.
  • Use pin constraints to avoid floating inputs (add pull-ups if needed).

13.4 Alternate Implementations and Trade-offs

  • Tree of 2-to-1 muxes: clearer hierarchy, matches real silicon.
  • Case statement: clearer RTL, synthesizes efficiently.
  • Boolean expression: compact but harder to read.

13.5 Additional Exercises

  • Build an 8-to-1 mux from 2-to-1 muxes and compare depth.
  • Add an enable input that forces y=0 when disabled.
  • Make the mux parameterizable for data width and number of inputs.
