Project 1: Digital Gate Library

Build a library of AND/OR/NOT/XOR/NAND/NOR gates with an exhaustive testbench.

Quick Reference

Attribute Value
Difficulty Beginner
Time Estimate 2-3 hours
Main Programming Language Verilog (Alternatives: VHDL, SystemVerilog)
Alternative Programming Languages VHDL, SystemVerilog
Coolness Level Low
Business Potential Low
Prerequisites Boolean algebra, Basic Verilog syntax, Using a simulator
Key Topics Truth tables, Continuous assignments, Testbenches

1. Learning Objectives

  1. Translate truth tables into Verilog logic
  2. Write exhaustive testbenches for small modules
  3. Interpret waveforms to confirm correct behavior

2. All Theory Needed (Per-Concept Breakdown)

Boolean Algebra and Truth Tables

Description/Expanded Explanation of the concept

Boolean algebra is the math of digital logic. A truth table is the exact, exhaustive mapping from inputs to outputs. In hardware, there is no “default” or “implicit” behavior: every input combination must map to a defined output. This is the foundation of reliable combinational circuits.

Definitions & Key Terms
  • Boolean algebra -> algebra of 0/1 variables with AND/OR/NOT operators
  • Truth table -> exhaustive input/output mapping
  • Minterm -> AND of variables producing 1 for one input combination
  • Maxterm -> OR of variables producing 0 for one input combination
Mental Model Diagram (ASCII)
Inputs -> [Truth Table] -> Boolean Expression -> Gates

Truth table to gates flow

How It Works (Step-by-Step)
  1. List all input combinations.
  2. Mark which combinations should produce 1.
  3. Translate the table into an expression or directly into gates.
  4. Verify with exhaustive simulation.
Minimal Concrete Example
// AND gate truth table: y = a & b
assign y = a & b;
Common Misconceptions
  • “If it works for some cases, it’s fine.” -> All cases must be correct.
  • “Truth tables are only for beginners.” -> They remain the most reliable spec.
Check-Your-Understanding Questions
  1. What output should an XOR produce for inputs 01 and 10?
  2. How many rows does a truth table have for 4 inputs?
  3. Explain why a missing row is a bug in hardware.
Where You’ll Apply It
  • This project: used in Section 3.2 (functional requirements) and Section 6 (testing)
  • Also used in: P02-4-to-1-multiplexer.md, P03-7-segment-display-decoder.md

Combinational Logic Modeling

Description/Expanded Explanation of the concept

Combinational logic produces outputs that depend only on current inputs. In Verilog, this is modeled using assign or always @(*) blocks. The key rule is that every output must be assigned for every input condition, otherwise you create unintended storage (latches).

Definitions & Key Terms
  • Combinational logic -> outputs depend only on current inputs
  • Continuous assignment -> assign for wire-driven logic
  • Latch -> unintended storage inferred by incomplete assignments
Mental Model Diagram (ASCII)
inputs --> [logic] --> outputs

Inputs to logic to outputs

How It Works (Step-by-Step)
  1. Choose assign for simple logic or always @(*) for complex logic.
  2. Ensure outputs are assigned in all branches.
  3. Verify with exhaustive or directed tests.
Minimal Concrete Example
always @(*) begin
  if (sel) y = b; else y = a;
end
Common Misconceptions
  • “Missing default just means don’t care.” -> It creates a latch.
  • “Blocking assignments are always wrong.” -> They are correct in combinational blocks.
Check-Your-Understanding Questions
  1. What hardware does an if/else create?
  2. Why does a missing default create storage?
  3. When should you use assign vs always @(*)?
Where You’ll Apply It
  • This project: used in Section 3.2 and Section 5.3
  • Also used in: P01-digital-gate-library.md, P03-7-segment-display-decoder.md, P04-4-bit-ripple-carry-adder.md

Verification with Testbenches and Waveforms

Description/Expanded Explanation of the concept

Testbenches are simulation-only modules that apply stimulus and check outputs. Waveforms (VCD) are the hardware engineer’s microscope; they reveal timing, glitches, and ordering problems. A good testbench is deterministic and covers edge cases.

Definitions & Key Terms
  • Testbench -> a non-synthesizable module that drives a DUT
  • VCD -> Value Change Dump waveform file
  • Deterministic test -> same inputs produce same outputs every run
Mental Model Diagram (ASCII)
[Testbench] -> [DUT] -> [VCD] -> [GTKWave]

Testbench DUT VCD GTKWave flow

How It Works (Step-by-Step)
  1. Initialize inputs to known values.
  2. Apply stimulus over time.
  3. Dump waveforms and check outputs.
  4. Add assertions or PASS/FAIL messages.
Minimal Concrete Example
initial begin
  $dumpfile("wave.vcd");
  $dumpvars(0, tb);
  a = 0; b = 1; #10;
  $finish;
end
Common Misconceptions
  • “If it simulates once, it’s correct.” -> Cover all relevant cases.
  • “Waveforms are optional.” -> They are often the only way to debug timing.
Check-Your-Understanding Questions
  1. Why keep testbench and DUT separate?
  2. What is the purpose of $dumpvars?
  3. How do you make a testbench deterministic?
Where You’ll Apply It
  • This project: used throughout Section 6 (testing)
  • Also used in: all other projects in this folder

3. Project Specification

3.1 What You Will Build

A reusable set of gate modules plus a testbench that exhaustively tests all input pairs.

3.2 Functional Requirements

  1. Requirement 1: Implement AND, OR, NOT, XOR, NAND, NOR as separate modules
  2. Requirement 2: Create a single testbench that verifies all gate truth tables
  3. Requirement 3: Generate a VCD waveform file for inspection

3.3 Non-Functional Requirements

  • Performance: Stable operation at the target clock and interfaces.
  • Reliability: Deterministic outputs on all defined inputs.
  • Usability: Clear ports and documented behavior.

3.4 Example Usage / Output

{p['example_usage']}

3.5 Data Formats / Schemas / Protocols

{p[‘data_format’]}

3.6 Edge Cases

  • Uninitialized inputs
  • X/Z propagation

3.7 Real World Outcome

3.7.1 How to Run (Copy/Paste)

iverilog -o gates_tb gates.v gates_tb.v && vvp gates_tb

3.7.2 Golden Path Demo (Deterministic)

Run the demo command above with the provided testbench and confirm the outputs match the golden transcript.

3.7.3 CLI Transcript

PASS: AND
PASS: OR
PASS: XOR
PASS: NAND
PASS: NOR
PASS: NOT

3.7.4 Failure Demo (Expected)

# Example failure case
ERROR: Output mismatch at vector 3
Expected: 0x0A, Got: 0x0B
EXIT CODE: 1

Notes:

  • Exit code 0 indicates all tests passed
  • Exit code 1 indicates a test failure

4. Solution Architecture

4.1 High-Level Design

[inputs] -> [core logic] -> [outputs]

Core logic flow

4.2 Key Components

Component Responsibility
gate_and Implements AND logic
gate_or Implements OR logic
gate_xor Implements XOR logic
gates_tb Exhaustive testbench and waveform dump

4.3 Data Structures (No Full Code)

// Example signals (adapt to your design)
reg [7:0] state_reg;
reg [7:0] data_reg;

4.4 Algorithm Overview

Key Algorithm: Core control flow

  1. Initialize state/reset conditions.
  2. Apply inputs and compute outputs.
  3. Update state on clock edges (if sequential).

Complexity Analysis:

  • Time: O(1) per cycle
  • Space: O(N) for registers and logic

5. Implementation Guide

5.1 Development Environment Setup

iverilog -v
# Ensure GTKWave is installed for waveform viewing

5.2 Project Structure

project-root/
|-- src/
|   |-- top.v
|   |-- core.v
|-- tb/
|   |-- tb.v
|-- Makefile
|-- README.md

Project folder structure

5.3 The Core Question You’re Answering

“How do I translate a truth table into hardware that always behaves correctly?”

5.4 Concepts You Must Understand First

  • Boolean algebra
  • Basic Verilog syntax
  • Using a simulator

5.5 Questions to Guide Your Design

  • How will you exhaustively cover all input combinations?
  • How will you ensure deterministic, repeatable simulation?

5.6 Thinking Exercise

Write the XOR truth table and prove that exactly two rows output 1.

5.7 The Interview Questions They’ll Ask

  • What hardware does assign infer?
  • What is the difference between wire and reg?
  • Why separate DUT and testbench?

5.8 Hints in Layers

  • Start with AND/OR/NOT using assign.
  • Build XOR from ^ or from AND/OR/NOT.
  • Use a for-loop to iterate all input pairs in the testbench.

5.9 Books That Will Help

Topic Book Chapter
Boolean logic Digital Design and Computer Architecture Ch. 2
Verilog basics Digital Design and Computer Architecture Ch. 4

5.10 Implementation Phases

Phase 1: Foundation

Goals:

  • Establish core module structure
  • Implement minimal behavior

Tasks:

  1. Scaffold module ports and internal signals
  2. Write a minimal testbench that compiles

Checkpoint: Simulation runs without errors

Phase 2: Core Functionality

Goals:

  • Implement full logic
  • Verify edge cases

Tasks:

  1. Complete core logic
  2. Add directed tests for edge cases

Checkpoint: All tests pass and waveforms match expectations

Phase 3: Polish & Edge Cases

Goals:

  • Improve readability
  • Document behavior

Tasks:

  1. Add comments and README notes
  2. Expand tests for unusual inputs

Checkpoint: Design is deterministic and documented

5.11 Key Implementation Decisions

Decision Options Recommendation Rationale
Reset strategy Sync / Async Sync Simpler timing closure
Test coverage Directed / Exhaustive Exhaustive for small logic Prevents missed cases

6. Testing Strategy

6.1 Test Categories

Category Purpose Examples
Unit Tests Test core logic Small vectors
Integration Tests Test modules together Full system
Edge Case Tests Boundary conditions Max/min values

6.2 Critical Test Cases

  1. Test 1: All 4 input combinations for each 2-input gate
  2. Test 2: Check output is never X after initialization
  3. Test 3: Testbench exits cleanly

6.3 Test Data

Use deterministic vectors and document expected outputs.

7. Common Pitfalls & Debugging

7.1 Frequent Mistakes

Pitfall Symptom Solution
Missing test vectors Some rows in truth table not exercised Loop all combinations
X outputs Waveform shows X after init Drive inputs and outputs in all cases

7.2 Debugging Strategies

  • Inspect waveforms at key internal signals
  • Add temporary debug outputs to verify state
  • Reduce testcases to the smallest failing case

7.3 Performance Traps

  • Overly wide counters or combinational paths can reduce max clock

8. Extensions & Challenges

8.1 Beginner Extensions

  • Add parameterization for widths
  • Add optional features (enable, reset)

8.2 Intermediate Extensions

  • Add configuration registers
  • Build a simple driver or demo program

8.3 Advanced Extensions

  • Integrate with another project in this series
  • Implement a hardware demo on FPGA

9. Real-World Connections

9.1 Industry Applications

  • Digital control systems and embedded peripherals
  • FPGA prototyping and validation
  • Yosys / nextpnr toolchain for open-source FPGA flow
  • Example HDL projects in the FPGA community

9.3 Interview Relevance

  • Demonstrates RTL thinking and verification skills

10. Resources

10.1 Essential Reading

  • Digital Design and Computer Architecture - Focus on Ch. 2
  • Digital Design and Computer Architecture - Focus on Ch. 4

10.2 Video Resources

  • Search for project-specific HDL walkthroughs and waveforms

10.3 Tools & Documentation

  • Icarus Verilog
  • GTKWave
  • See adjacent projects in VERILOG_FROM_ZERO_PROJECTS/

11. Self-Assessment Checklist

11.1 Understanding

  • I can explain the core concept without notes
  • I can predict waveform behavior for basic inputs

11.2 Implementation

  • All functional requirements are met
  • All tests pass
  • Edge cases are documented

11.3 Growth

  • I can explain this project in an interview
  • I documented at least one lesson learned

12. Submission / Completion Criteria

Minimum Viable Completion:

  • Functional requirements implemented
  • Testbench passes
  • Waveforms inspected

Full Completion:

  • All minimum criteria plus
  • Edge cases covered and documented

Excellence (Going Above & Beyond):

  • Hardware demo on FPGA
  • Clear write-up of lessons learned

    Appendix A: Deep Dive Walkthrough

A.1 Signal Map and Invariants

  • and2/or2/xor2/nand2/nor2: a, b -> y
  • not1: a -> y

Invariants (must hold for every input combination):

  • nand2 is the bitwise inverse of and2
  • nor2 is the bitwise inverse of or2
  • xor2 is high only when inputs differ
  • not1 always outputs the inverse of a

A.2 Timing Sketch (Combinational, No State)

Time:    t0 t1 t2 t3
A:       0  1  0  1
B:       0  0  1  1
AND:     0  0  0  1
OR:      0  1  1  1
XOR:     0  1  1  0
NAND:    1  1  1  0
NOR:     1  0  0  0

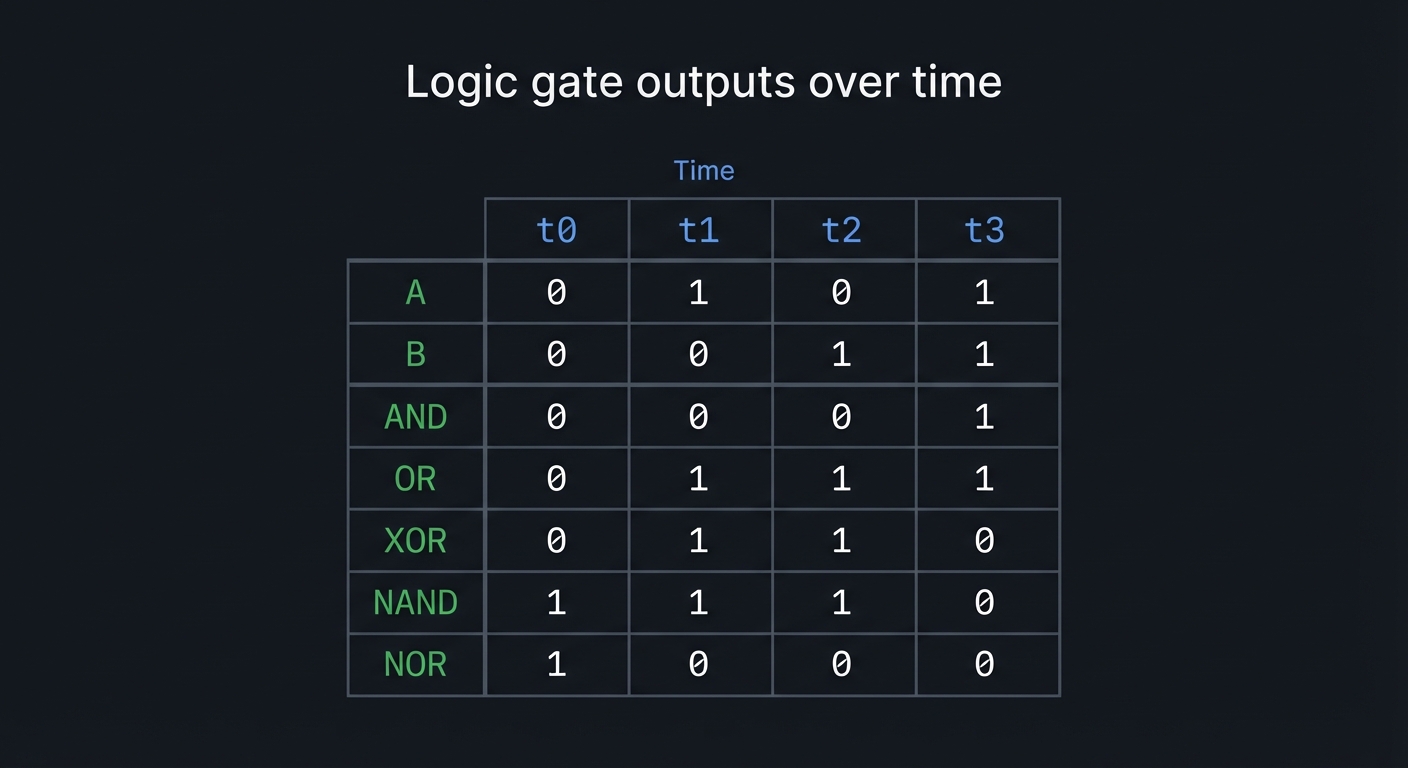

Logic gate outputs over time

A.3 Reference Vector Table (Exhaustive)

| a | b | and | or | xor | nand | nor | |—|—|—–|—-|—–|——|—–| | 0 | 0 | 0 | 0 | 0 | 1 | 1 | | 0 | 1 | 0 | 1 | 1 | 1 | 0 | | 1 | 0 | 0 | 1 | 1 | 1 | 0 | | 1 | 1 | 1 | 1 | 0 | 0 | 0 |

A.4 Testbench Design Pattern (Deterministic)

  • Use nested loops to sweep inputs for 2-input gates.
  • For each gate, compute the expected output in the testbench and assert equality.
  • Stop immediately on mismatch to keep debug time short.
for (a = 0; a < 2; a = a + 1) begin
  for (b = 0; b < 2; b = b + 1) begin
    #1;
    if (and_y !== (a & b)) $fatal("AND mismatch");
  end
end

A.5 Debugging Checklist (Waveforms)

  • Inputs are initialized before checks (no X propagation).
  • Outputs stabilize within the same time step (combinational).
  • No output remains X when inputs are known.

A.6 Optional Extension: Vectorized Gates

  • Add andN, orN, xorN modules with a parameterized width.
  • Verify that bitwise operators behave per-bit (not a single reduction).

13. Deep Dive Appendix

13.1 Timing and Resource Budget

  • Combinational only: No clocks are involved. In synthesis, each gate maps to one or more LUTs and the critical path is just the LUT chain.
  • Delay intuition: A 2-input gate is effectively one LUT level. A two-level implementation (like XOR built from AND/OR/NOT) adds extra delay.
  • Goal: Keep the gate library flat and fully combinational so tools can merge logic and reduce LUT depth.

13.2 Waveform Interpretation Guide

  • a, b should change exactly when driven by the testbench loop.
  • y should update in the same simulation time step as the input change (no extra clock edges).
  • X/Z should disappear after initialization. If they linger, the output is undriven or there are conflicting drivers.

Example timing sketch:

t=0: a=0 b=0 -> y=0
t=1: a=0 b=1 -> y=0
t=2: a=1 b=0 -> y=0
t=3: a=1 b=1 -> y=1

13.3 Hardware Bring-Up Notes

  • Map a/b to two switches and y to one LED.
  • Use the board’s built-in pull-ups/pull-downs (or explicit resistors) so inputs never float.
  • If you use buttons instead of switches, add debouncers or expect flicker.

13.4 Alternate Implementations and Trade-offs

  • Structural: Build XOR out of AND/OR/NOT gates for learning.
  • Behavioral: Use assign y = a ^ b; for clarity and fewer LUTs.
  • Parameterized: Create a generic n_input_gate module to practice vectors and reduction operators.

13.5 Additional Exercises

  • Implement XNOR, NOR, NAND, and 3-input variants, then prove with exhaustive tests.
  • Implement all gates using only NAND (or only NOR) to practice logic equivalence.
  • Create a tiny gate-level “logic analyzer” module that prints input/output pairs to the console.
