Project 14: Memory-Mapped File Database

Build a small persistent database using mmap and record locks.

Quick Reference

Attribute	Value
Difficulty	Level 4 (Expert)
Time Estimate	2 Weeks
Main Programming Language	C (Alternatives: )
Alternative Programming Languages	N/A
Coolness Level	Level 4 (Hardcore Tech Flex)
Business Potential	Level 3 (Service & Support)
Prerequisites	C programming, basic IPC familiarity, Linux tools (strace/ipcs)
Key Topics	mmap, msync, record locks, crash recovery

---

1. Learning Objectives

By completing this project, you will:

1. Build a working IPC-based system aligned with Stevens Vol. 2 concepts.
2. Implement robust lifecycle management for IPC objects.
3. Handle errors and edge cases deterministically.
4. Document and justify design trade-offs.
5. Benchmark or validate correctness under load.

---

2. All Theory Needed (Per-Concept Breakdown)

Memory-Mapped Files and Persistence

Fundamentals

mmap() maps a file into memory so you can read and write it like a byte array. Changes are written back to disk by the kernel, either lazily or when you call msync. This provides a natural way to build persistent data structures without explicit read/write syscalls. However, you must think about consistency: if the process crashes mid-update, the file may be partially updated.

Deep Dive into the Concept

Memory-mapped files blur the line between memory and storage. The kernel loads pages on demand, and writes are buffered in the page cache. This is convenient, but it makes durability subtle. If you require crash safety, you must define a write protocol and explicitly msync in the correct order. Common approaches include write-ahead logs, double-buffering, or copy-on-write pages. Even for a simple database, you should define a commit record or version counter so that the file can be validated on startup.

mmap() also introduces alignment and size constraints. You cannot map beyond the file size, so you must ftruncate the file first. If you need to grow the database, you must unmap and remap or use mremap on Linux. This is an important design decision for a file-backed IPC project: do you allow growth, or do you fix the size?

Record locking is often paired with mmap to allow multiple processes to share a file. You can lock byte ranges to coordinate access to records. But remember: locks are advisory; all processes must cooperate. Also, mapping a file does not mean all changes are immediately durable. The OS may delay flushes, so your code must treat msync as part of the persistence protocol.

How this fits on projects

This concept is at the heart of the memory-mapped database project and influences any system that uses file-backed shared state.

Definitions & key terms

• mmap -> Map file contents into memory.
• msync -> Flush dirty pages to disk.
• Crash consistency -> Ability to recover after a crash.
• Page cache -> Kernel cache of file-backed pages.

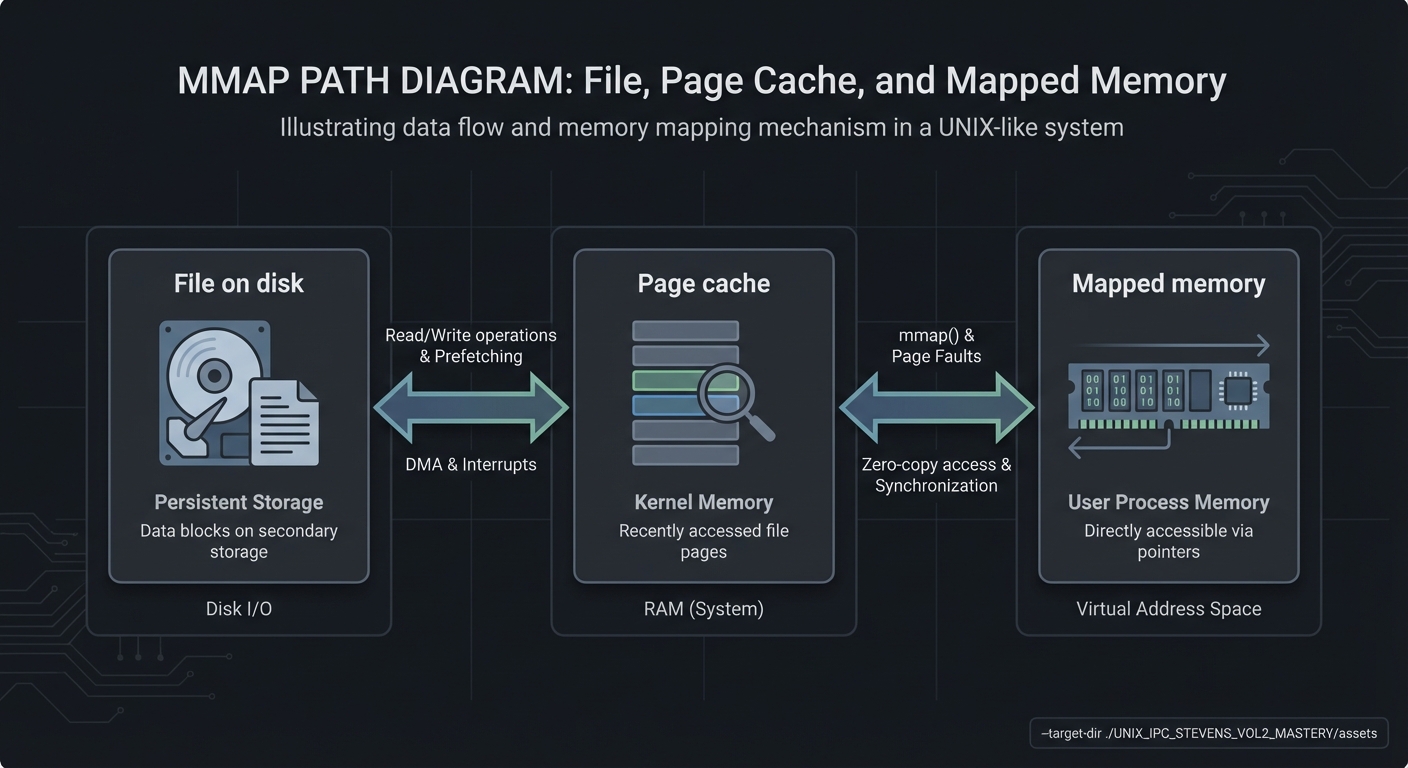

Mental model diagram (ASCII)

File on disk <-> Page cache <-> Mapped memory
             (dirty pages flushed by msync)

How it works (step-by-step, with invariants and failure modes)

1. Open file and set size with ftruncate.
2. Map file with mmap.
3. Modify memory region.
4. Call msync to flush.
5. Unmap and close.

Failure modes: partial updates on crash, using stale mappings after resize, missing msync when durability is required.

Minimal concrete example

int fd = open("db.dat", O_RDWR|O_CREAT, 0600);
ftruncate(fd, 4096);
char *p = mmap(NULL, 4096, PROT_READ|PROT_WRITE, MAP_SHARED, fd, 0);
strcpy(p, "hello");
msync(p, 4096, MS_SYNC);

**Common misconceptions**

- "mmap makes data immediately durable." -> It does not; use `msync`.
- "Resizing is automatic." -> You must remap after `ftruncate`.
- "Memory writes are atomic." -> They are not across crashes.

**Check-your-understanding questions**

1. Why might data be lost after a crash even with mmap?
2. What does `MAP_SHARED` do?
3. How do you grow a mapped file?

**Check-your-understanding answers**

1. Writes are buffered; without `msync`, pages may not be flushed.
2. It propagates changes to the underlying file.
3. `ftruncate` then unmap/remap or `mremap` on Linux.

**Real-world applications**

- SQLite and LMDB use mmap-like mechanisms.
- Persistent caches and indexes.

**Where you’ll apply it**

- In this project: §3.5 Data Formats, §5.10 Phase 2.
- Also used in: [P09-record-locking-db.md](P09-record-locking-db.md).

**References**

- TLPI Ch. 49 (Memory Mappings).
- `man 2 mmap`, `man 2 msync`.

**Key insights**

- mmap gives you simplicity and speed, but durability is a protocol, not a given.

**Summary**

Memory-mapped files are powerful for persistent IPC data structures, but require explicit crash-consistency design.

**Homework/Exercises to practice the concept**

1. Create a mapped file and observe changes with `hexdump`.
2. Crash mid-write and inspect file consistency.
3. Implement a tiny header with a version counter and checksum.

**Solutions to the homework/exercises**

1. Write to mapped memory and run `hexdump -C db.dat`.
2. Kill the process after writing half of a struct.
3. Increment version after data update and verify on startup.


### Advisory Record Locking with fcntl()

**Fundamentals**

Record locking allows a process to lock a byte range of a file so that other cooperating processes can coordinate access. The locks are advisory, meaning the kernel does not enforce them unless the processes explicitly check and honor them. This makes record locks flexible and lightweight but also easy to misuse if all participants do not follow the protocol.

In Unix, record locks are managed by `fcntl()` with `F_SETLK` or `F_SETLKW`. A lock is defined by its type (read or write), start offset, and length. A write lock is exclusive; a read lock can be shared. Locks are associated with the open file description, which means they are inherited across `fork()` and released when the file descriptor is closed.

**Deep Dive into the Concept**

Record locking is the basis of many simple database systems. If you store records in fixed-size slots, you can lock each record by locking the corresponding byte range. This enables concurrent readers and writers without requiring a full database engine. The main complexity is defining a stable record layout and mapping record IDs to byte ranges. Once you have that, the locking protocol becomes straightforward: before reading or writing a record, acquire a read or write lock on its range, perform I/O, then release the lock.

Because locks are advisory, your program must check and enforce them. If one process ignores the locking protocol, the kernel will not stop it from writing. This is why record locking is often used in controlled environments where all processes are trusted. The `F_SETLKW` call blocks until the lock is available, while `F_SETLK` returns immediately with `EACCES` or `EAGAIN`. You must decide which behavior fits your application.

Another subtlety is that locks are per-process, not per-thread. In a multi-threaded program, fcntl locks are shared across threads. This can cause surprising behavior: one thread can release a lock held by another if they share the same FD. This is a strong argument for using one process per lock domain or careful FD management.

**How this fits on projects**

Record locking is central to the record-locking database and is also used in mmap-based databases where files are shared by multiple processes.

**Definitions & key terms**

- **Advisory lock** -> Enforced by convention, not the kernel.
- **Read lock** -> Shared lock for readers.
- **Write lock** -> Exclusive lock for writers.
- **Byte range** -> Start + length defining lock scope.

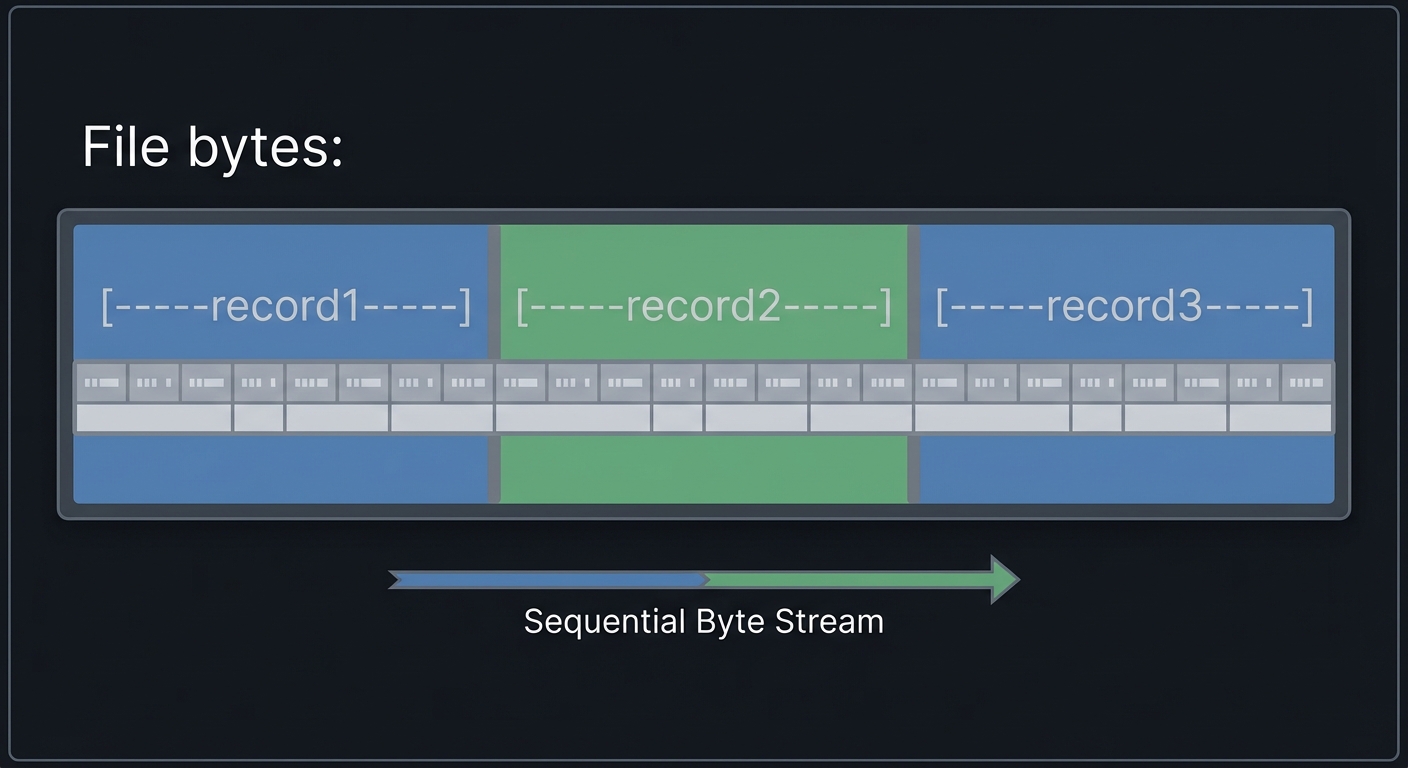

**Mental model diagram (ASCII)**

```text
File bytes: [----record1----][----record2----][----record3----]
Locks:      [   W lock   ]      [ R lock ]

How it works (step-by-step, with invariants and failure modes)

1. Compute byte range for record.
2. Use fcntl(F_SETLKW) to acquire lock.
3. Read or write record data.
4. Release lock by setting type to F_UNLCK.

Failure modes: forgetting to unlock, lock ranges overlap incorrectly, ignoring advisory semantics.

Minimal concrete example

struct flock lk = { .l_type=F_WRLCK, .l_whence=SEEK_SET,
  .l_start=offset, .l_len=record_size };
fcntl(fd, F_SETLKW, &lk);
// write record
lk.l_type = F_UNLCK; fcntl(fd, F_SETLK, &lk);

**Common misconceptions**

- "Locks are enforced by the kernel." -> They are advisory.
- "Locks are per-thread." -> They are per-process.
- "Locks survive exec." -> They are released on close.

**Check-your-understanding questions**

1. What happens if a process ignores advisory locks?
2. How do read and write locks differ?
3. Why can locks cause surprises in multi-threaded programs?

**Check-your-understanding answers**

1. The kernel allows writes; the protocol is violated.
2. Read locks can be shared; write locks are exclusive.
3. Locks are per-process, so threads share them.

**Real-world applications**

- Flat-file databases.
- Log file coordination.

**Where you’ll apply it**

- In this project: §3.2 Functional Requirements, §5.10 Phase 2.
- Also used in: [P14-mmap-database.md](P14-mmap-database.md).

**References**

- APUE Ch. 14 (Record Locking).
- `man 2 fcntl`.

**Key insights**

- Record locking is simple and powerful, but only if all processes agree to play by the rules.

**Summary**

Advisory record locks let you coordinate access to file regions without a full database system, but correctness depends on disciplined usage.

**Homework/Exercises to practice the concept**

1. Implement a file with 100 fixed-size records and lock per record.
2. Demonstrate a write lock blocking a reader.
3. Show how locks are released on process exit.

**Solutions to the homework/exercises**

1. Map record ID to byte offset and lock that range.
2. Acquire write lock in one process and attempt read lock in another.
3. Kill the lock holder and observe lock release.


---

## 3. Project Specification

### 3.1 What You Will Build

Build a small persistent database using mmap and record locks.

### 3.2 Functional Requirements

1. **Requirement 1**: Memory-map a file and store key/value records
2. **Requirement 2**: Use record locks for concurrent access
3. **Requirement 3**: Implement a simple recovery check on startup

### 3.3 Non-Functional Requirements

- **Performance**: Must handle at least 10,000 messages/operations without failure.
- **Reliability**: IPC objects are cleaned up on shutdown or crash detection.
- **Usability**: CLI output is readable with clear error codes.

### 3.4 Example Usage / Output

```text
./mmap_db put key value
./mmap_db get key

### 3.5 Data Formats / Schemas / Protocols

File layout: header + fixed-size slots + free list.

### 3.6 Edge Cases

- Crash during write
- Corrupt header
- File growth

### 3.7 Real World Outcome

You will have a working IPC subsystem that can be run, traced, and tested in a reproducible way.

#### 3.7.1 How to Run (Copy/Paste)

```bash
make
./run_demo.sh

#### 3.7.2 Golden Path Demo (Deterministic)

```bash
./run_demo.sh --mode=golden

Expected output includes deterministic counts and a final success line:

```text
OK: golden scenario completed

#### 3.7.3 Failure Demo (Deterministic)

```bash
./run_demo.sh --mode=failure

Expected output:

```text
ERROR: invalid input or unavailable IPC resource
exit=2

---

## 4. Solution Architecture

### 4.1 High-Level Design

Client/Producer -> IPC Layer -> Server/Consumer

4.2 Key Components

Component	Responsibility	Key Decisions
IPC Setup	Create/open IPC objects	POSIX vs System V choices
Worker Loop	Send/receive messages	Blocking vs non-blocking
Cleanup	Unlink/remove IPC objects	Crash safety

4.3 Data Structures (No Full Code)

struct message {
  int id;
  int len;
  char payload[256];
};

### 4.4 Algorithm Overview

**Key Algorithm: IPC Request/Response**
1. Initialize IPC resources.
2. Client sends request.
3. Server processes and responds.
4. Cleanup on exit.

**Complexity Analysis:**
- Time: O(n) in number of messages.
- Space: O(1) per message plus IPC buffer.

---

## 5. Implementation Guide

### 5.1 Development Environment Setup

```bash
sudo apt-get install build-essential

### 5.2 Project Structure

project-root/
├── src/
├── include/
├── tests/
├── Makefile
└── README.md

5.3 The Core Question You’re Answering

“How do you make memory-mapped data durable and safe?”

5.4 Concepts You Must Understand First

• IPC object lifecycle (create/open/unlink)
• Blocking vs non-blocking operations
• Error handling with errno

5.5 Questions to Guide Your Design

1. What invariants guarantee correctness in this IPC flow?
2. How will you prevent resource leaks across crashes?
3. How will you make the system observable for debugging?

5.6 Thinking Exercise

Before coding, sketch the IPC lifecycle and identify where deadlock could occur.

5.7 The Interview Questions They’ll Ask

1. Why choose this IPC mechanism over alternatives?
2. What are the lifecycle pitfalls?
3. How do you test IPC code reliably?

5.8 Hints in Layers

Hint 1: Start with a single producer and consumer.

Hint 2: Add logging around every IPC call.

Hint 3: Use strace or ipcs to verify resources.

5.9 Books That Will Help

Topic	Book	Chapter
IPC fundamentals	Stevens, UNP Vol 2	Relevant chapters
System calls	APUE	Ch. 15

5.10 Implementation Phases

Phase 1: Foundation (2-4 hours)

Goals:

• Create IPC objects.
• Implement a minimal send/receive loop.

Tasks:

1. Initialize IPC resources.
2. Implement basic client and server.

Checkpoint: Single request/response works.

Phase 2: Core Functionality (4-8 hours)

Goals:

• Add error handling and cleanup.
• Support multiple clients or concurrent operations.

Tasks:

1. Add structured message format.
2. Implement cleanup on shutdown.

Checkpoint: System runs under load without leaks.

Phase 3: Polish & Edge Cases (2-4 hours)

Goals:

• Add deterministic tests.
• Document behaviors.

Tasks:

1. Add golden and failure scenarios.
2. Document limitations.

Checkpoint: Tests pass, behavior documented.

5.11 Key Implementation Decisions

Decision	Options	Recommendation	Rationale
Blocking mode	blocking vs non-blocking	blocking	Simpler for first version
Cleanup	manual vs automated	explicit cleanup	Avoid stale IPC objects

---

6. Testing Strategy

6.1 Test Categories

Category	Purpose	Examples
Unit Tests	Validate helpers	message encode/decode
Integration Tests	IPC flow	client-server round trip
Edge Case Tests	Failure modes	missing queue, full buffer

6.2 Critical Test Cases

1. Single client request/response works.
2. Multiple requests do not corrupt state.
3. Failure case returns exit code 2.

6.3 Test Data

Input: “hello” Expected: “hello”

---

7. Common Pitfalls & Debugging

7.1 Frequent Mistakes

Pitfall	Symptom	Solution
Not cleaning IPC objects	Next run fails	Add cleanup on exit
Blocking forever	Program hangs	Add timeouts or non-blocking mode
Incorrect message framing	Corrupted data	Add length prefix and validate

7.2 Debugging Strategies

• Use strace -f to see IPC syscalls.
• Use ipcs or /dev/mqueue to inspect objects.

7.3 Performance Traps

• Small queue sizes cause frequent blocking.

---

8. Extensions & Challenges

8.1 Beginner Extensions

• Add verbose logging.
• Add a CLI flag to toggle non-blocking mode.

8.2 Intermediate Extensions

• Add request timeouts.
• Add a metrics report.

8.3 Advanced Extensions

• Implement load testing with multiple clients.
• Add crash recovery logic.

---

9. Real-World Connections

9.1 Industry Applications

• IPC services in local daemons.
• Message-based coordination in legacy systems.

9.2 Related Open Source Projects

• nfs-utils - Uses RPC and IPC extensively.
• systemd - Uses multiple IPC mechanisms.

9.3 Interview Relevance

• Demonstrates system call knowledge and concurrency reasoning.

---

10. Resources

10.1 Essential Reading

• Stevens, “UNP Vol 2”.
• Kerrisk, “The Linux Programming Interface”.

10.2 Video Resources

• Unix IPC lectures from OS courses.

10.3 Tools & Documentation

• man 7 ipc, man 2 for each syscall.

10.4 Related Projects in This Series

• P01-shell-pipeline.md
• P06-mq-benchmark.md

---

11. Self-Assessment Checklist

11.1 Understanding

• I can describe IPC object lifecycle.
• I can explain blocking vs non-blocking behavior.
• I can reason about failure modes.

11.2 Implementation

• All functional requirements are met.
• Tests pass.
• IPC objects are cleaned up.

11.3 Growth

• I can explain design trade-offs.
• I can explain this project in an interview.

---

12. Submission / Completion Criteria

Minimum Viable Completion:

• Basic IPC flow works with correct cleanup.
• Error handling returns deterministic exit codes.

Full Completion:

• Includes tests and deterministic demos.
• Documents trade-offs and limitations.

Excellence (Going Above & Beyond):

• Adds performance benchmarking and crash recovery.
