Project 5: Discriminated Unions Parser

Project 5: Discriminated Unions Parser

Build a webhook handler that uses discriminated unions to parse different event types—orders, payments, refunds—each with different fields, all validated correctly based on a type discriminator.

---

Learning Objectives

By completing this project, you will:

1. Master discriminated unions in Pydantic - Parse polymorphic data based on a discriminator field
2. Understand union matching modes - Learn left_to_right, smart, and discriminator modes
3. Use Literal types for type discrimination - Define fixed values that identify model variants
4. Implement callable discriminators - Handle complex dispatch logic for dynamic type selection
5. Design robust fallback handling - Gracefully handle unknown or malformed event types
6. Generate proper OpenAPI schemas - Ensure unions produce correct API documentation

---

Deep Theoretical Foundation

What Are Discriminated Unions and Why They Matter

Real-world APIs send different data shapes through the same endpoint. Webhooks from Stripe, GitHub, or e-commerce platforms deliver orders, payments, and refunds to a single /webhooks endpoint. Each event has different fields but arrives at the same location.

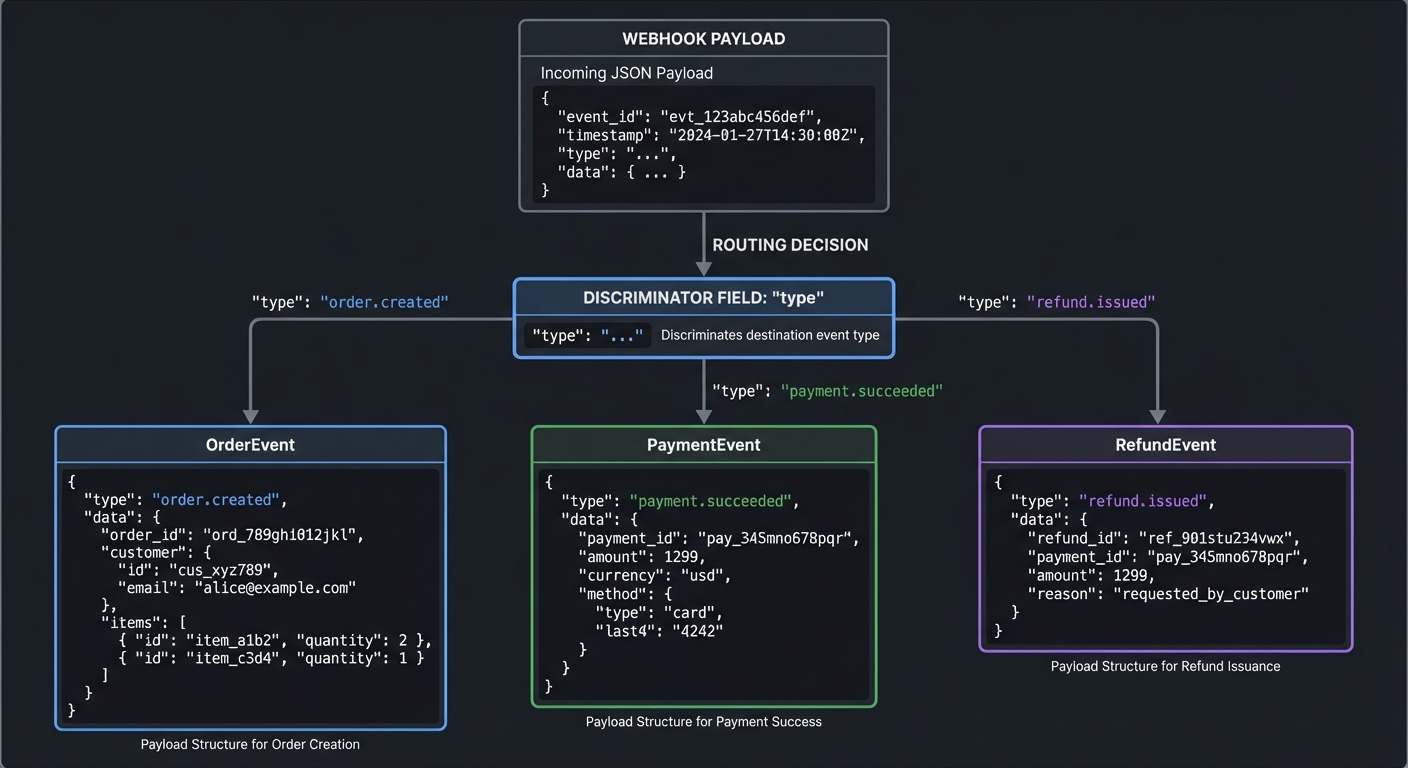

                     Webhook Payload
                          │
                          ▼
                ┌─────────────────────┐
                │  { "type": "..." }  │
                └─────────────────────┘
                          │
          ┌───────────────┼───────────────┐
          │               │               │
          ▼               ▼               ▼
   type="order.created"  type="payment.succeeded"  type="refund.issued"
          │               │               │
          ▼               ▼               ▼
   ┌─────────────┐  ┌─────────────┐  ┌─────────────┐
   │ OrderEvent  │  │ PaymentEvent│  │ RefundEvent │
   │ - order_id  │  │ - payment_id│  │ - refund_id │
   │ - customer  │  │ - amount    │  │ - reason    │
   │ - items     │  │ - method    │  │ - amount    │
   └─────────────┘  └─────────────┘  └─────────────┘

A discriminated union (or “tagged union”) uses a shared field to determine which type applies. Pydantic’s discriminator mode provides O(1) lookup instead of trying each model sequentially.

Union Matching Modes in Pydantic V2

Pydantic V2 offers three distinct modes for matching data against union types. Understanding these modes is crucial for choosing the right approach for your use case.

Mode 1: Left-to-Right (Explicit)

This mode tries each model in the order specified until one succeeds. It was the default in Pydantic V1.

from pydantic import BaseModel
from typing import Union

class Dog(BaseModel):
    name: str
    breed: str

class Cat(BaseModel):
    name: str
    color: str

# Tries Dog first, then Cat
Pet = Union[Dog, Cat]

# Problem: {"name": "Fluffy", "breed": "Siamese"} matches Dog!
# Even if you meant Cat with breed being an extra field

Problems with left-to-right:

• Order matters and is fragile to refactoring
• Extra fields may cause wrong match
• Performance degrades with many options (O(n) checking)

Mode 2: Smart Mode (Default in V2)

Pydantic analyzes models and picks the “best match” using heuristics based on required fields, field types, and overlap.

# Smart mode is the default in Pydantic V2
Pet = Union[Dog, Cat]

# Pydantic examines:
# 1. Required fields that match
# 2. Exact type matches vs coercions
# 3. Unique fields for each model

Smart mode works well for simple cases but can be unpredictable for complex overlapping models.

Mode 3: Discriminator Mode (Recommended for APIs)

This mode explicitly tells Pydantic which field determines the type, providing O(1) lookup.

from typing import Annotated, Union, Literal
from pydantic import BaseModel, Field

class Dog(BaseModel):
    pet_type: Literal["dog"]  # Discriminator value
    name: str
    breed: str

class Cat(BaseModel):
    pet_type: Literal["cat"]  # Discriminator value
    name: str
    color: str

# Use discriminator parameter
Pet = Annotated[
    Union[Dog, Cat],
    Field(discriminator="pet_type")
]

# Now parsing is O(1) - directly maps to correct model

Benefits of discriminator mode:

• O(1) lookup instead of O(n) checking
• Deterministic behavior with no ambiguity
• Clear OpenAPI schema with discriminator defined
• Better error messages when discriminator value is invalid

Literal Types for Type Discrimination

Literal types from the typing module define exact values a field can have. This is essential for discriminated unions because each model variant must have a unique Literal value.

from typing import Literal
from pydantic import BaseModel

# Field must be exactly "dog" - not "Dog", not "DOG"
pet_type: Literal["dog"]

# Multiple allowed values in one Literal
status: Literal["pending", "approved", "rejected"]

# Numeric literals work too
priority: Literal[1, 2, 3]

In discriminated unions, each model variant must have a unique Literal value:

class OrderCreatedEvent(BaseModel):
    type: Literal["order.created"]  # Unique discriminator
    order_id: str
    items: list[str]

class OrderCancelledEvent(BaseModel):
    type: Literal["order.cancelled"]  # Different value
    order_id: str
    reason: str

class OrderShippedEvent(BaseModel):
    type: Literal["order.shipped"]  # Another unique value
    order_id: str
    tracking_number: str

Literal type validation:

# This succeeds
OrderCreatedEvent(type="order.created", order_id="123", items=["a"])

# This fails with validation error - wrong literal value
OrderCreatedEvent(type="order.shipped", order_id="123", items=["a"])
# Error: Input should be 'order.created'

Callable Discriminators for Complex Dispatch

Sometimes the discriminator logic is more complex than a simple field value. Pydantic V2 supports callable discriminators that compute the type from the data.

from typing import Annotated, Union
from pydantic import BaseModel, Discriminator

class CreditCardPayment(BaseModel):
    method: str  # Will be "card"
    card_last_four: str
    amount: float

class BankTransfer(BaseModel):
    method: str  # Will be "bank"
    account_number: str
    routing_number: str
    amount: float

class CryptoPayment(BaseModel):
    method: str  # Will be "crypto"
    wallet_address: str
    amount: float

def get_payment_type(data: dict) -> str:
    """Complex logic to determine payment type."""
    method = data.get("method", "").lower()

    # Handle legacy formats
    if method in ("credit_card", "debit_card", "card"):
        return "card"
    elif method in ("ach", "wire", "bank", "bank_transfer"):
        return "bank"
    elif method in ("btc", "eth", "crypto", "cryptocurrency"):
        return "crypto"
    else:
        return "unknown"

# Callable discriminator with custom error handling
Payment = Annotated[
    Union[CreditCardPayment, BankTransfer, CryptoPayment],
    Discriminator(
        get_payment_type,
        custom_error_type="invalid_payment_method",
        custom_error_message="Unknown payment method"
    )
]

When to use callable discriminators:

1. Legacy data normalization - Old systems use different naming conventions
2. Computed discrimination - Type determined by multiple fields
3. Version handling - Different API versions have different schemas
4. Fallback logic - Default to a specific type when uncertain

Fallback Handling for Unknown Types

Production systems must handle unknown event types gracefully. When webhooks evolve or new event types are added, your system should not crash.

from pydantic import BaseModel, Field, model_validator
from typing import Union, Literal, Any

# Known event types with specific Literal discriminators
class OrderEvent(BaseModel):
    type: Literal["order.created", "order.updated"]
    order_id: str
    data: dict

class PaymentEvent(BaseModel):
    type: Literal["payment.succeeded", "payment.failed"]
    payment_id: str
    amount: float

# Fallback for unknown events
class UnknownEvent(BaseModel):
    """Catches any event type we don't explicitly handle."""
    type: str  # Not Literal - accepts any string
    raw_data: dict = Field(default_factory=dict)

    @model_validator(mode="before")
    @classmethod
    def capture_raw(cls, data: dict) -> dict:
        """Preserve the original payload for debugging."""
        return {
            "type": data.get("type", "unknown"),
            "raw_data": data
        }

Fallback strategies:

1. Log and acknowledge - Store unknown events for later analysis
2. Graceful degradation - Extract only common fields
3. Alert and retry - Queue for manual review
4. Version negotiation - Request event in compatible format

OpenAPI Schema Generation for Unions

Discriminated unions generate proper OpenAPI 3.0+ schemas with discriminator mappings. This ensures Swagger/OpenAPI documentation correctly represents your polymorphic data.

from pydantic import BaseModel, Field
from typing import Annotated, Union, Literal

class Dog(BaseModel):
    pet_type: Literal["dog"]
    breed: str

class Cat(BaseModel):
    pet_type: Literal["cat"]
    color: str

Pet = Annotated[Union[Dog, Cat], Field(discriminator="pet_type")]

class PetContainer(BaseModel):
    pet: Pet

# Generate schema
print(PetContainer.model_json_schema())

Output includes discriminator information:

{
  "properties": {
    "pet": {
      "discriminator": {
        "mapping": {
          "cat": "#/$defs/Cat",
          "dog": "#/$defs/Dog"
        },
        "propertyName": "pet_type"
      },
      "oneOf": [
        {"$ref": "#/$defs/Dog"},
        {"$ref": "#/$defs/Cat"}
      ]
    }
  },
  "$defs": {
    "Dog": {...},
    "Cat": {...}
  }
}

This generates proper Swagger/OpenAPI documentation with a dropdown for selecting event types, making your API self-documenting and easier for consumers to understand.

---

Project Specification

Functional Requirements

Build a webhook handler that:

1. Parses multiple event types - Orders, payments, and customer events
2. Uses discriminated unions - Type field determines which model validates the data
3. Handles unknown events gracefully - Unknown types are captured, not rejected
4. Provides event routing - Use Python’s singledispatch for type-safe handlers
5. Generates correct OpenAPI docs - Discriminator mapping in schema

Webhook Event Structure

{
  "id": "evt_123abc",
  "type": "order.created",
  "timestamp": "2024-01-15T10:30:00Z",
  "version": "1.0",
  "data": {
    "order_id": "ord_456",
    "customer_id": "cust_789",
    "items": ["widget"],
    "total": 99.99
  }
}

Event Types to Implement

Order Events:     order.created, order.updated, order.cancelled, order.shipped
Payment Events:   payment.succeeded, payment.failed, payment.refunded
Customer Events:  customer.created, customer.updated, customer.deleted

API Endpoints

POST /webhooks              - Receive and process webhook events
GET  /webhooks/events       - List recent events (filtered by type)
GET  /webhooks/events/{id}  - Get specific event details
POST /webhooks/replay/{id}  - Re-process a specific event

---

Solution Architecture

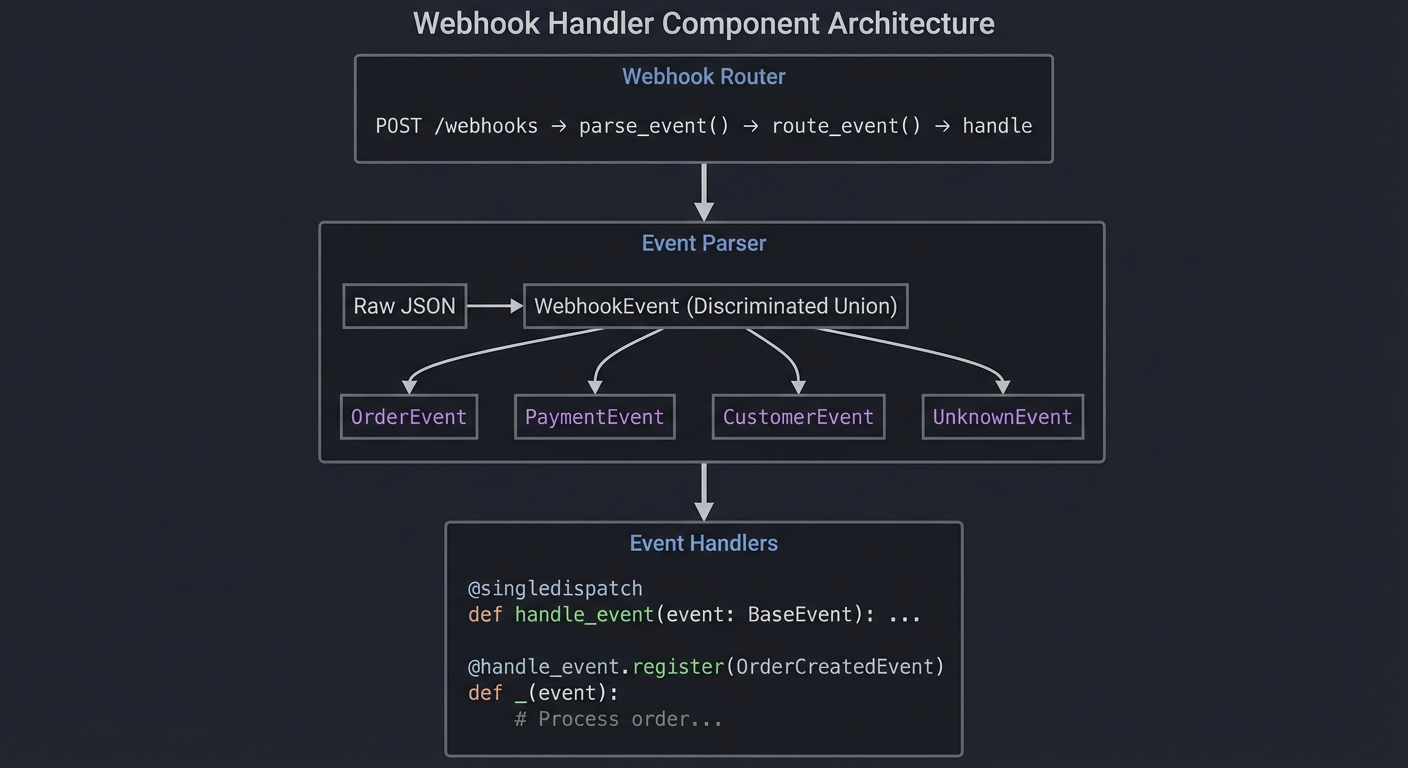

Component Diagram

┌─────────────────────────────────────────────────────────────────┐
│                      Webhook Router                              │
│  POST /webhooks  →  parse_event()  →  route_event()  →  handle  │
└─────────────────────────────────────────────────────────────────┘
                              │
                              ▼
┌─────────────────────────────────────────────────────────────────┐
│                       Event Parser                               │
│  Raw JSON  ──►  WebhookEvent (Discriminated Union)              │
│                      │                                           │
│           ┌──────────┼──────────┬──────────────┐                │
│           ▼          ▼          ▼              ▼                │
│     OrderEvent  PaymentEvent  CustomerEvent  UnknownEvent       │
└─────────────────────────────────────────────────────────────────┘
                              │
                              ▼
┌─────────────────────────────────────────────────────────────────┐
│                      Event Handlers                              │
│  @singledispatch                                                 │
│  def handle_event(event: BaseEvent): ...                        │
│                                                                  │
│  @handle_event.register(OrderCreatedEvent)                      │
│  def _(event): # Process order...                               │
└─────────────────────────────────────────────────────────────────┘

Project Structure

webhook-handler/
├── app/
│   ├── main.py
│   ├── models/
│   │   ├── base.py           # BaseEvent
│   │   ├── orders.py         # Order events
│   │   ├── payments.py       # Payment events
│   │   ├── customers.py      # Customer events
│   │   ├── unknown.py        # Fallback model
│   │   └── union.py          # Discriminated union
│   ├── handlers/
│   │   ├── registry.py       # singledispatch base
│   │   ├── orders.py         # Order handlers
│   │   └── payments.py       # Payment handlers
│   ├── routes/
│   │   └── webhooks.py       # API endpoints
│   └── store/
│       └── event_store.py    # Event persistence
└── tests/

---

Phased Implementation Guide

Phase 1: Base Models (1-2 hours)

Create models/base.py:

from pydantic import BaseModel, Field
from datetime import datetime

class BaseEvent(BaseModel):
    id: str = Field(..., description="Unique event identifier")
    timestamp: datetime
    version: str = Field(default="1.0")

Create order/payment event models with Literal types for discrimination.

Checkpoint: Individual event models validate correctly.

Phase 2: Discriminated Union (1-2 hours)

Create models/union.py:

from typing import Annotated, Union
from pydantic import Field

WebhookEvent = Annotated[
    Union[OrderCreatedEvent, PaymentSucceededEvent, ...],
    Field(discriminator="type")
]

Checkpoint: Union routes to correct event types based on type field.

Phase 3: Fallback Handling (1 hour)

Create UnknownEvent model and wrapper class:

class WebhookPayload(BaseModel):
    @classmethod
    def parse_event(cls, data: dict):
        try:
            return cls(event=data)  # Try discriminated union
        except ValidationError:
            return cls(event=UnknownEvent.model_validate(data))

Checkpoint: Unknown events are captured, not rejected.

Phase 4: Event Handlers (2 hours)

Create handlers with singledispatch:

from functools import singledispatch

@singledispatch
def handle_event(event: BaseEvent) -> dict:
    return {"status": "unhandled"}

@handle_event.register(OrderCreatedEvent)
def _(event: OrderCreatedEvent) -> dict:
    return {"status": "processed", "order_id": event.data.order_id}

Checkpoint: Events route to correct handlers by type.

Phase 5: FastAPI Integration (2 hours)

Create routes/webhooks.py:

@router.post("")
async def receive_webhook(request: Request):
    payload = await request.json()
    event_wrapper = WebhookPayload.parse_event(payload)
    result = handle_event(event_wrapper.event)
    return {"status": "received", "event_id": event_wrapper.event.id, **result}

Checkpoint: API accepts and processes webhook events.

Phase 6: Event Store and Replay (2 hours)

Implement event storage, querying, and replay functionality.

Checkpoint: Full webhook system with storage and replay.

---

Testing Strategy

Unit Tests for Models

import pytest
from datetime import datetime
from pydantic import ValidationError, TypeAdapter

from app.models.orders import OrderCreatedEvent, OrderCreatedData
from app.models.payments import PaymentSucceededEvent
from app.models.unknown import UnknownEvent
from app.models.union import WebhookEvent


class TestOrderModels:
    def test_order_created_valid(self):
        event = OrderCreatedEvent(
            id="evt_123",
            type="order.created",
            timestamp=datetime.now(),
            data=OrderCreatedData(
                order_id="ord_456",
                customer_id="cust_789",
                items=[{"sku": "A", "quantity": 1, "price": 10.0}],
                total=10.0
            )
        )
        assert event.type == "order.created"
        assert event.data.order_id == "ord_456"

    def test_order_created_wrong_type_literal(self):
        """Literal type must match exactly."""
        with pytest.raises(ValidationError) as exc:
            OrderCreatedEvent(
                id="evt_123",
                type="order.updated",  # Wrong literal!
                timestamp=datetime.now(),
                data={"order_id": "123", "customer_id": "456", "items": [], "total": 0}
            )
        assert "type" in str(exc.value)


class TestDiscriminatedUnion:
    @pytest.fixture
    def adapter(self):
        return TypeAdapter(WebhookEvent)

    def test_parses_order_created(self, adapter):
        data = {
            "id": "evt_1",
            "type": "order.created",
            "timestamp": "2024-01-15T10:30:00Z",
            "data": {"order_id": "ord_1", "customer_id": "cust_1", "items": [], "total": 0}
        }
        event = adapter.validate_python(data)
        assert isinstance(event, OrderCreatedEvent)

    def test_parses_payment_succeeded(self, adapter):
        data = {
            "id": "evt_2",
            "type": "payment.succeeded",
            "timestamp": "2024-01-15T10:30:00Z",
            "data": {"payment_id": "pay_1", "order_id": "ord_1", "amount": 99.99, "method": "card"}
        }
        event = adapter.validate_python(data)
        assert isinstance(event, PaymentSucceededEvent)

    def test_invalid_discriminator_value(self, adapter):
        """Unknown type in discriminated union raises error."""
        data = {
            "id": "evt_3",
            "type": "inventory.adjusted",  # Not in union
            "timestamp": "2024-01-15T10:30:00Z",
            "data": {}
        }
        with pytest.raises(ValidationError):
            adapter.validate_python(data)


class TestUnknownEventFallback:
    def test_captures_unknown_type(self):
        from app.models.union import WebhookPayload

        data = {
            "id": "evt_unknown",
            "type": "some.future.event",
            "timestamp": "2024-01-15T10:30:00Z",
            "data": {"key": "value"}
        }

        payload = WebhookPayload.parse_event(data)
        assert isinstance(payload.event, UnknownEvent)
        assert payload.event.type == "some.future.event"

Integration Tests

import pytest
from fastapi.testclient import TestClient
from app.main import app

client = TestClient(app)


class TestWebhookEndpoint:
    def test_receive_order_created(self):
        response = client.post("/webhooks", json={
            "id": "evt_test_1",
            "type": "order.created",
            "timestamp": "2024-01-15T10:30:00Z",
            "data": {
                "order_id": "ord_test",
                "customer_id": "cust_test",
                "items": [{"sku": "TEST", "quantity": 1, "price": 10.0}],
                "total": 10.0
            }
        })
        assert response.status_code == 200
        data = response.json()
        assert data["status"] == "received"
        assert data["event_type"] == "order.created"

    def test_receive_unknown_event_accepted(self):
        """Unknown events should be accepted, not rejected."""
        response = client.post("/webhooks", json={
            "id": "evt_unknown",
            "type": "some.unknown.type",
            "timestamp": "2024-01-15T10:30:00Z",
            "data": {"arbitrary": "data"}
        })
        assert response.status_code == 200
        data = response.json()
        assert "warning" in data or data["status"] == "received"

    def test_validation_error_missing_id(self):
        """Missing required fields should return 422."""
        response = client.post("/webhooks", json={
            "type": "order.created",
            "timestamp": "2024-01-15T10:30:00Z"
            # Missing: id, data
        })
        assert response.status_code == 422

    def test_list_events_by_type(self):
        response = client.get("/webhooks/events?type=order.created")
        assert response.status_code == 200

    def test_replay_event(self):
        # Create an event first
        client.post("/webhooks", json={
            "id": "evt_replay",
            "type": "order.created",
            "timestamp": "2024-01-15T10:30:00Z",
            "data": {"order_id": "ord_1", "customer_id": "c_1", "items": [], "total": 0}
        })

        # Replay it
        response = client.post("/webhooks/replay/evt_replay")
        assert response.status_code == 200

---

Common Pitfalls and Debugging

Pitfall 1: Overlapping Literal Values

Problem: Two models have the same Literal value causing duplicate discriminator errors.

Solution: Each model must have a unique Literal value.

Pitfall 2: Missing Discriminator Field

Problem: Data lacks the discriminator field.

Solution: Validate presence before parsing or use a wrapper with explicit error handling.

Pitfall 3: Fallback Model Matches First

Problem: UnknownEvent with type: str matches everything if placed first.

Solution: Put specific Literal types first in the Union, fallback last.

Pitfall 4: Callable Discriminator Returns None

Problem: Callable returns None when field is missing.

Solution: Always return a valid string; handle missing gracefully.

Pitfall 5: Nested Data Validation Errors

Problem: Outer event is valid but nested data fails.

Debugging: Check full error path in ValidationError.errors().

---

Extensions and Challenges

Extension 1: Webhook Signature Verification

Implement HMAC signature verification for security:

def verify_signature(payload: bytes, signature: str, secret: str) -> bool:
    expected = hmac.new(secret.encode(), payload, hashlib.sha256).hexdigest()
    return hmac.compare_digest(f"sha256={expected}", signature)

Extension 2: Event Versioning

Handle multiple versions with compound discriminator:

def get_event_key(data: dict) -> str:
    return f"{data.get('type')}:{data.get('version', '1.0')}"

Extension 3: Retry Queue

Implement retry logic for failed event processing with exponential backoff.

Extension 4: Event Sourcing

Store events as source of truth and replay to rebuild state.

Extension 5: Outbound Webhooks

Build the sending side with signature generation and delivery tracking.

---

Real-World Connections

Where This Pattern Appears

• Payment Processors: Stripe, PayPal, Square webhooks
• E-commerce: Shopify, WooCommerce event notifications
• Communication: Twilio, SendGrid status callbacks
• Infrastructure: GitHub webhooks, AWS SNS, CloudEvents

Production Considerations

1. Idempotency: Handle duplicate deliveries
2. Ordering: Events may arrive out of order
3. Rate Limiting: Protect against webhook floods
4. Dead Letter Queue: Handle permanently failed events

---

Self-Assessment Checklist

Core Understanding

• Can I explain discriminated unions and their benefits?
• Can I describe Pydantic’s three union matching modes?
• Can I use Literal types for discrimination?
• Can I implement callable discriminators?

Implementation Skills

• Can I define discriminated unions with multiple event types?
• Can I implement fallback handling for unknown types?
• Can I use singledispatch for type-safe routing?
• Can I generate correct OpenAPI schemas?

Mastery Indicators

• System handles all known event types correctly
• Unknown events are gracefully captured
• OpenAPI documentation is complete
• Event handlers are type-safe

---

Resources

Documentation

• Pydantic Unions
• Pydantic Discriminated Unions
• Python Literal Types
• functools.singledispatch

Specifications

• OpenAPI Discriminator
• CloudEvents Specification

Books

• “Robust Python” by Patrick Viafore - Chapter 6 on Union Types
