Project 13: Security Audit Scanner

Build a security auditing CLI that checks permissions, configs, and risky patterns.

Quick Reference

Attribute Value
Difficulty Level 3: Advanced
Time Estimate 2-3 weeks
Language Bash (Alternatives: Python, Go)
Prerequisites File permissions knowledge, project 3, project 10
Key Topics permissions, auditing, pattern detection, reporting

1. Learning Objectives

By completing this project, you will:

  1. Scan file permissions and identify insecure configurations.
  2. Detect risky patterns (world-writable, SUID files, weak SSH configs).
  3. Generate structured audit reports.
  4. Support whitelisting and custom rules.
  5. Build a safe tool that never modifies system state.

2. Theoretical Foundation

2.1 Core Concepts

  • Unix permissions: user/group/other and special bits.
  • SUID/SGID risks: privilege escalation vectors.
  • Config auditing: patterns in SSH, sudoers, and services.
  • Compliance mindset: repeatable evidence-based checks.
  • Least privilege: security principle for automation.

2.2 Why This Matters

Security failures often stem from misconfigurations. An audit scanner helps you surface issues before attackers do.

2.3 Historical Context / Background

Tools like Lynis and OpenSCAP scan systems for vulnerabilities. This project builds a smaller but practical subset.

2.4 Common Misconceptions

  • “Permissions are fine if apps work.” Over-permissive files are a risk.
  • “Security scanners must fix issues.” Auditing and fixing are separate responsibilities.

3. Project Specification

3.1 What You Will Build

A secscan CLI that runs a series of checks: world-writable files, SUID binaries, weak SSH settings, and unsafe configs. Outputs a report with severity levels.

3.2 Functional Requirements

  1. Permission scan: world-writable files and dirs.
  2. SUID/SGID scan: list privileged binaries.
  3. SSH audit: check for weak settings in sshd_config.
  4. Service scan: detect risky open services.
  5. Reporting: severity-ranked output, JSON mode.
  6. Rules: allow custom rules or ignore lists.

3.3 Non-Functional Requirements

  • Safety: read-only behavior.
  • Performance: avoid scanning huge directories unnecessarily.
  • Usability: clear remediation suggestions.

3.4 Example Usage / Output

$ secscan --ssh --suid --world-writable
[HIGH] /usr/bin/passwd (SUID)
[MED] /var/log/app.log (world-writable)
[LOW] sshd_config: PermitRootLogin yes

3.5 Real World Outcome

You can run secscan after a server setup to ensure permissions and configs align with best practices.

4. Solution Architecture

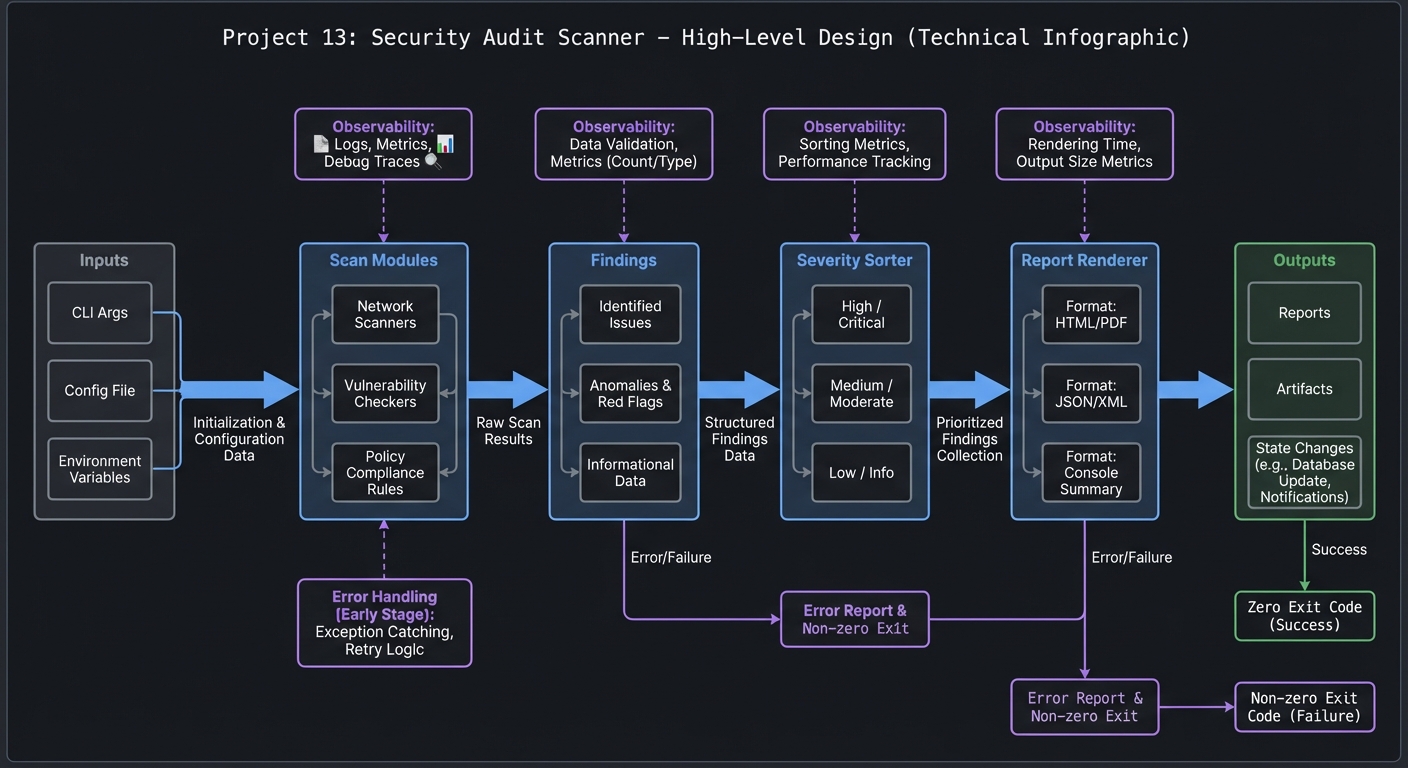

4.1 High-Level Design

scan modules -> findings -> severity sorter -> report renderer

Project 13: Security Audit Scanner high-level design diagram

4.2 Key Components

Component Responsibility Key Decisions
Scanner Execute checks modular checks
Rules engine Apply ignore rules regex + glob
Reporter Format output text + JSON
Config loader Read user rules YAML/ini

4.3 Data Structures

FINDINGS+=("HIGH|/usr/bin/passwd|SUID binary")

4.4 Algorithm Overview

Key Algorithm: Permission Scan

  1. Traverse target directories with find.
  2. Filter for -perm -0002 and SUID/SGID.
  3. Apply ignore rules.
  4. Emit findings.

Complexity Analysis:

  • Time: O(n) for files scanned
  • Space: O(f) findings

5. Implementation Guide

5.1 Development Environment Setup

sudo apt-get install findutils

5.2 Project Structure

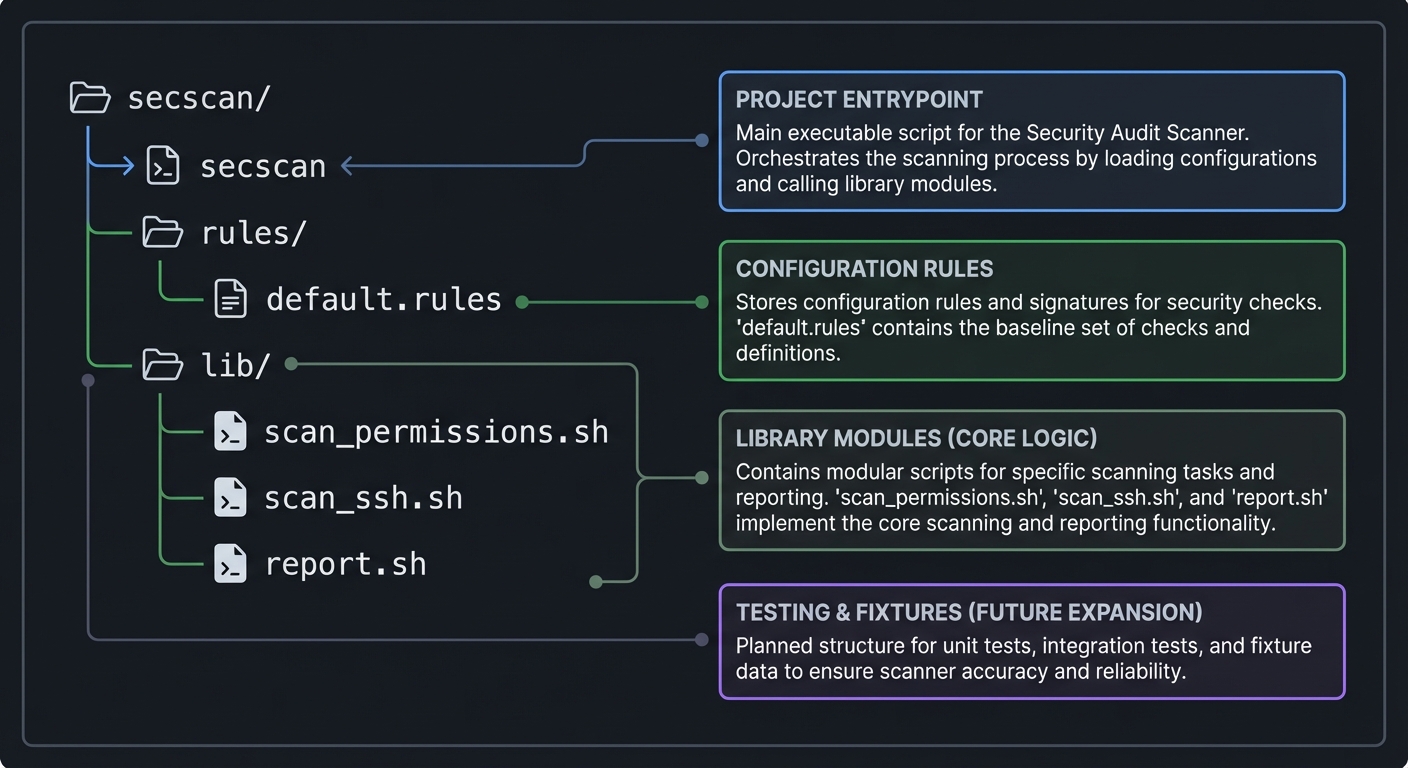

secscan/
|-- secscan
|-- rules/
|   `-- default.rules
`-- lib/
    |-- scan_permissions.sh
    |-- scan_ssh.sh
    `-- report.sh

Project 13: Security Audit Scanner project structure diagram

5.3 The Core Question You Are Answering

“How can I systematically detect insecure configurations on a Unix system?”

5.4 Concepts You Must Understand First

  1. Permission bits and special bits
  2. Common insecure SSH settings
  3. Safe scanning with find

5.5 Questions to Guide Your Design

  • How will you avoid scanning /proc and /sys?
  • How do you rank severity?
  • How will you allow user-defined ignores?

5.6 Thinking Exercise

List three files on your system that should never be world-writable.

5.7 The Interview Questions They Will Ask

  1. What is the risk of SUID binaries?
  2. How do you find world-writable files?
  3. Why should security scanners be read-only?

5.8 Hints in Layers

Hint 1: Start with find / -perm -0002 -type f.

Hint 2: Add ignore list for /proc, /sys, /dev.

Hint 3: Parse sshd_config lines with grep.

Hint 4: Build a severity ranking system.

5.9 Books That Will Help

Topic Book Chapter
Unix permissions “The Linux Command Line” Ch. 9
System security “Practical Unix & Internet Security” Ch. 5

5.10 Implementation Phases

Phase 1: Permission Checks (4-5 days)

Goals:

  • World-writable and SUID scans.

Tasks:

  1. Implement permission scans.
  2. Add ignore rules.

Checkpoint: Findings list is correct.

Phase 2: Config Audits (5-6 days)

Goals:

  • SSH and service checks.

Tasks:

  1. Parse sshd_config.
  2. Add open port checks.

Checkpoint: Config issues detected.

Phase 3: Reporting (3-4 days)

Goals:

  • Severity ranking and JSON.

Tasks:

  1. Add report formatting.
  2. Add JSON output.

Checkpoint: Reports are consistent and sortable.

5.11 Key Implementation Decisions

Decision Options Recommendation Rationale
Scan scope full disk vs targeted targeted avoids performance issues
Rule format regex vs glob regex more flexible
Output text vs JSON both usable + automatable

6. Testing Strategy

6.1 Test Categories

Category Purpose Examples
Unit rule matching ignore list
Integration scan flow test directory fixtures
Edge Cases permission denied graceful skip

6.2 Critical Test Cases

  1. SUID files detected correctly.
  2. Ignore rules skip expected paths.
  3. Missing sshd_config handled gracefully.

6.3 Test Data

fixtures/ssh_config_sample
fixtures/unsafe_file

7. Common Pitfalls and Debugging

7.1 Frequent Mistakes

Pitfall Symptom Solution
Scanning /proc errors and noise exclude pseudo-fs
No severity ranking useless reports apply severity rules
Running as root blindly unsafe usage document requirements

7.2 Debugging Strategies

  • Run scans on a small test directory first.
  • Print debug matches for ignore rules.

7.3 Performance Traps

Full filesystem scans can be slow. Allow --path to narrow scope.

8. Extensions and Challenges

8.1 Beginner Extensions

  • Add --summary-only output.
  • Add --csv output.

8.2 Intermediate Extensions

  • Add compliance profiles (CIS baseline lite).
  • Add scheduled scans with cron.

8.3 Advanced Extensions

  • Add remediation scripts (optional).
  • Integrate with SIEM systems.

9. Real-World Connections

9.1 Industry Applications

  • Security hardening audits.
  • Compliance reporting.
  • Lynis: security auditing tool.
  • OpenSCAP: compliance framework.

9.3 Interview Relevance

  • Shows security awareness.
  • Demonstrates defensive automation.

10. Resources

10.1 Essential Reading

  • man find, man chmod, man sshd_config

10.2 Video Resources

  • “Understanding SUID/SGID” (YouTube)

10.3 Tools and Documentation

  • find, ss, lsof
  • Project 9: Network Toolkit
  • Project 10: Deployment Automation

11. Self-Assessment Checklist

11.1 Understanding

  • I can explain SUID/SGID risks.
  • I can interpret permission bits.

11.2 Implementation

  • Scanner runs safely without modifying system.
  • Reports show severity and remediation.

11.3 Growth

  • I can add new checks with confidence.

12. Submission / Completion Criteria

Minimum Viable Completion:

  • Permission scan + report

Full Completion:

  • Config audits + JSON output

Excellence (Going Above & Beyond):

  • Compliance profiles + automation hooks
