Project 5: Intelligent Backup System

Build an incremental backup tool with rotation, verification, and safe restores.

Quick Reference

Attribute Value
Difficulty Level 2: Intermediate
Time Estimate 1-2 weeks
Language Bash (Alternatives: POSIX sh, Perl, Python)
Prerequisites Projects 1 and 3, basic permissions knowledge
Key Topics rsync, hard links, rotation, atomic ops

1. Learning Objectives

By completing this project, you will:

  1. Implement incremental backups using hard links.
  2. Orchestrate backups locally and over SSH.
  3. Add retention policies and cleanup logic.
  4. Provide a safe restore workflow with verification.

2. Theoretical Foundation

2.1 Core Concepts

  • Hard links: Why they allow space-efficient snapshots.
  • Rsync internals: Incremental copy and delta algorithms.
  • Rotation policies: Keeping last N backups and pruning safely.
  • Atomic operations: Avoiding partial backups on failure.

2.2 Why This Matters

Backups are safety-critical. Building your own system teaches defensive scripting, error handling, and reliability under failure.

2.3 Historical Context / Background

Time Machine and rsync-based tools popularized snapshot-style backups. The core idea remains simple: copy changed files and link unchanged ones.

2.4 Common Misconceptions

  • Copying everything every time is required. It is not.
  • Hard links are risky. They are safe when used correctly.

3. Project Specification

3.1 What You Will Build

A backup CLI that performs incremental snapshots, supports multiple targets, rotates old backups, and provides a guided restore process.

3.2 Functional Requirements

  1. Init and profile: Set backup name and destinations.
  2. Run backup: Incremental snapshots with progress output.
  3. Rotation: Keep last N backups and prune old ones.
  4. Restore: Recover specific files or directories.
  5. Notifications: Report success or failure.

3.3 Non-Functional Requirements

  • Safety: Never delete without confirming targets.
  • Reliability: Backup completes or fails loudly.
  • Transparency: Clear output and logs.

3.4 Example Usage / Output

$ backup run
[backup] Snapshot created: 2024-12-22_15-30-00
[backup] Files changed: 234
[backup] Hard links saved: 5.8 GB

3.5 Real World Outcome

You can snapshot your system daily and restore any file with a single command. The system keeps only the most recent backups, and you know exactly what changed.

$ backup list
2024-12-22_15-30-00  incremental  512 MB
2024-12-21_15-30-00  incremental  498 MB
2024-12-20_15-30-00  full         6.3 GB

4. Solution Architecture

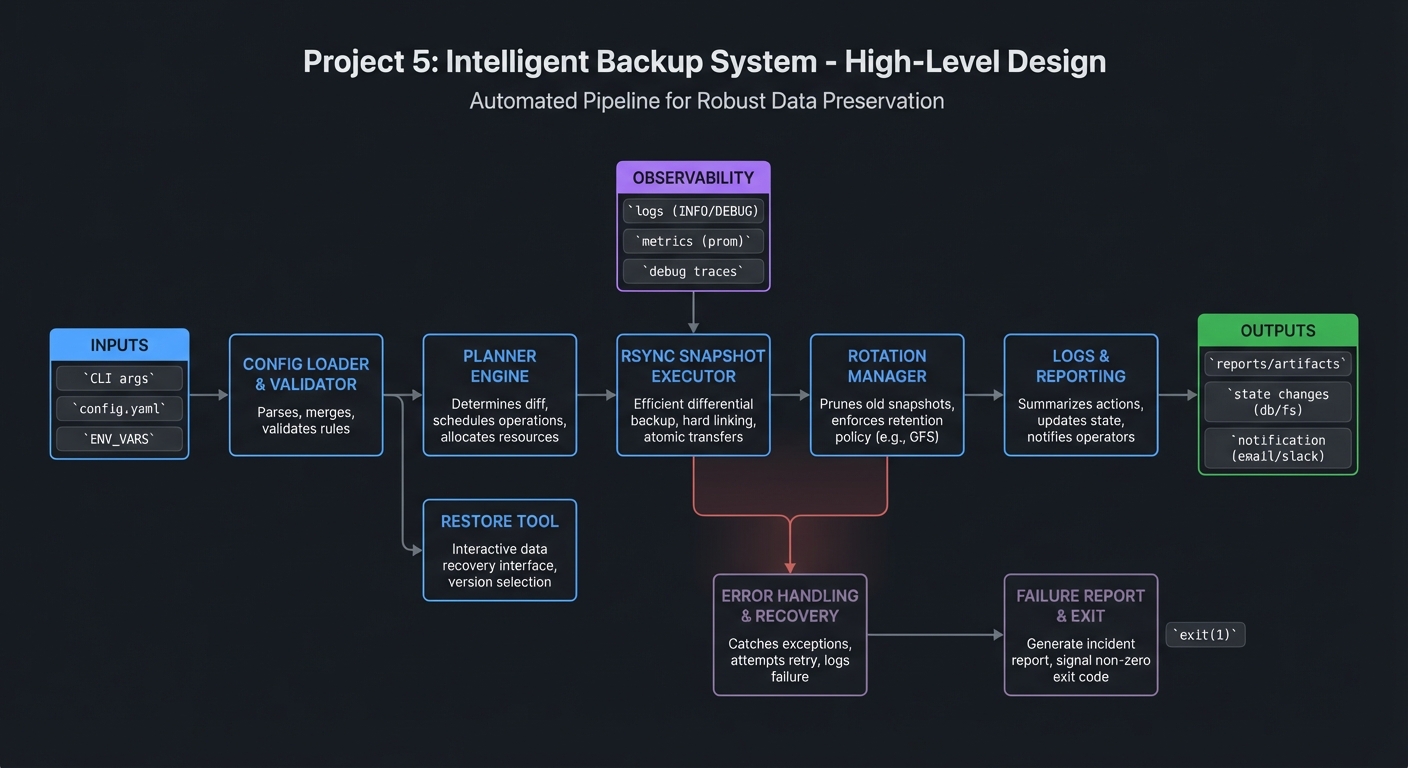

4.1 High-Level Design

[config] -> [planner] -> [rsync snapshot] -> [rotation] -> [logs]
                                |
                                -> [restore tool]

4.2 Key Components

Component Responsibility Key Decisions
Profile manager Store backup sets Config location
Snapshot runner Execute rsync Link-dest strategy
Rotator Prune old backups Count-based policy
Reporter Progress and summary Parse rsync output
Restore tool Recover files File or directory restore

4.3 Data Structures

Profile config:

name=macbook-pro
sources=~/Documents,~/Projects
destination=/mnt/backup-drive
keep=5

4.4 Algorithm Overview

  1. Load profile and resolve paths.
  2. Determine previous snapshot for link-dest.
  3. Run rsync into a temp snapshot directory.
  4. Rename temp to final snapshot name.
  5. Apply rotation policy.

Complexity Analysis:

  • Time: O(changed files) with rsync
  • Space: O(changed files) per snapshot

5. Implementation Guide

5.1 Development Environment Setup

# Ensure rsync is available
rsync --version

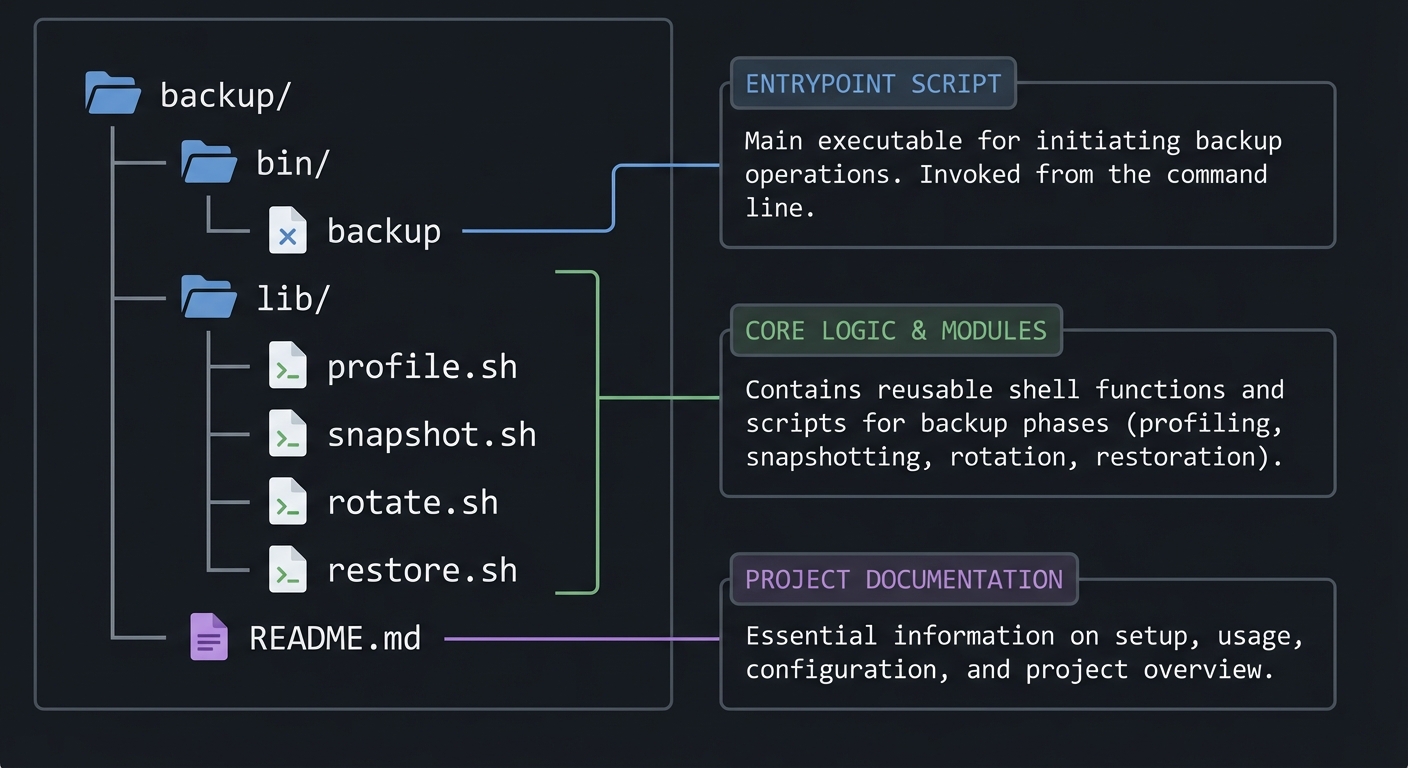

5.2 Project Structure

backup/
|-- bin/
|   `-- backup
|-- lib/
|   |-- profile.sh
|   |-- snapshot.sh
|   |-- rotate.sh
|   `-- restore.sh
`-- README.md

5.3 The Core Question You Are Answering

“How do I make backups that are fast, safe, and easy to restore?”

5.4 Concepts You Must Understand First

  • Hard links and inode sharing.
  • Rsync options for incremental snapshots.
  • Safe deletion and rotation patterns.

5.5 Questions to Guide Your Design

  • What counts as a backup failure?
  • How will you ensure snapshots are atomic?
  • How will you prevent accidental deletion of the wrong directory?

5.6 Thinking Exercise

Describe what happens when a backup fails mid-transfer. How do you recover?

5.7 The Interview Questions They Will Ask

  1. Why use hard links for incremental backups?
  2. How do you make a backup operation atomic?
  3. How do you design a safe rotation policy?

5.8 Hints in Layers

Hint 1: Always sync into a temp directory first.

Hint 2: Use a clear snapshot naming scheme.

Hint 3: Separate restore logic from backup logic.

Hint 4: Log every run with a summary and exit status.

5.9 Books That Will Help

Topic Book Chapter
File systems “How Linux Works” Ch. 4
Rsync basics “The Linux Command Line” Ch. 18
Atomic operations “Advanced Programming in the UNIX Environment” Ch. 4

5.10 Implementation Phases

Phase 1: Foundation (2-3 days)

Goals:

  • Define profile format
  • Run basic rsync snapshot

Tasks:

  1. Parse profile
  2. Run rsync to destination

Checkpoint: Snapshot directory created correctly.

Phase 2: Core Functionality (3-4 days)

Goals:

  • Incremental snapshots with link-dest

Tasks:

  1. Implement snapshot rotation
  2. Add reporting

Checkpoint: Incremental backups save space.

Phase 3: Restore and Safety (2-3 days)

Goals:

  • Implement restore and verification

Tasks:

  1. Restore file or directory
  2. Validate checksums

Checkpoint: Restore returns file contents accurately.

5.11 Key Implementation Decisions

Decision Options Recommendation Rationale
Snapshot naming timestamps, counters timestamps sortable and readable
Rotation policy count, age count simple and deterministic
Notification email, stdout stdout + optional email easy testing

6. Testing Strategy

6.1 Test Categories

Category Purpose Examples
Unit Tests Path resolution Profile parsing
Integration Tests Full backup Snapshot + restore
Edge Case Tests Large files Partial transfer failures

6.2 Critical Test Cases

  1. Backup with no previous snapshot still succeeds.
  2. Rotation deletes only the oldest snapshot.
  3. Restore retrieves the correct version of a file.

6.3 Test Data

small directory with changed file
large file to test progress

7. Common Pitfalls and Debugging

7.1 Frequent Mistakes

Pitfall Symptom Solution
Non-atomic snapshots Partial backup visible Use temp + rename
Bad rotation Wrong snapshot deleted Validate paths
Silent failures Missing backups Always check exit codes

7.2 Debugging Strategies

  • Capture rsync output to a log file.
  • Run with a small directory to verify logic.

7.3 Performance Traps

Avoid hashing all files on every run unless needed for verification.

8. Extensions and Challenges

8.1 Beginner Extensions

  • Add a backup verify command
  • Add a backup diff summary

8.2 Intermediate Extensions

  • Add encryption at rest
  • Add remote destination rotation

8.3 Advanced Extensions

  • Add snapshot integrity report
  • Add multi-destination fan-out

9. Real-World Connections

9.1 Industry Applications

  • Workstation and server backup automation.
  • rsnapshot: rsync-based snapshots
  • borg: deduplicating backups

9.3 Interview Relevance

  • Understanding backups, atomic operations, and filesystem primitives.

10. Resources

10.1 Essential Reading

  • “The Linux Command Line” by William Shotts - rsync and files
  • “How Linux Works” by Brian Ward - inodes and links

10.2 Video Resources

  • rsync basics walkthroughs

10.3 Tools and Documentation

  • man rsync, man ln, man cron
  • Previous: Project 4 (Git Hooks Framework)
  • Next: Project 6 (System Health Monitor)

11. Self-Assessment Checklist

11.1 Understanding

  • I can explain hard links and snapshotting.
  • I can describe atomic backup steps.

11.2 Implementation

  • Backups run and rotate correctly.
  • Restore is reliable.

11.3 Growth

  • I can add a new backup destination.

12. Submission / Completion Criteria

Minimum Viable Completion:

  • Snapshot creation and rotation work.
  • Restore retrieves a file.

Full Completion:

  • Multi-destination support and logging.

Excellence (Going Above and Beyond):

  • Verification and encryption features.

This guide was generated from CLI_TOOLS/LEARN_SHELL_SCRIPTING_MASTERY.md. For the complete learning path, see the parent directory README.
