Project 9: Pointer Arithmetic Visualizer
Build an interactive tool that visualizes how pointer arithmetic works, demonstrating sizeof scaling, type-aware increments, and the relationship between array indexing and pointer operations.
Quick Reference
| Attribute | Value |
|---|---|
| Language | C |
| Difficulty | Intermediate (Level 3) |
| Time | 1 Week |
| Chapters | Expert C Programming Ch. 4 |
| Coolness | 4/5 - Eye-Opening |
| Portfolio Value | Interview Ready |
Learning Objectives
By completing this project, you will:
- Understand sizeof scaling: Know why
int *p; p+1advances by 4 bytes, not 1 - Master type-aware pointer arithmetic: Predict address changes for any pointer type
- Navigate void pointer arithmetic: Understand why it’s non-standard and how compilers handle it
- Calculate pointer differences correctly: Know why
p2 - p1gives element count, not bytes - Identify array bounds violations: Recognize undefined behavior from out-of-bounds pointer arithmetic
- Connect indexing to pointer math: Prove that
arr[i]equals*(arr + i)
The Core Question You’re Answering
“When I add 1 to a pointer, what actually happens at the byte level, and why?”
Pointer arithmetic is one of C’s most powerful features and one of its most misunderstood. The key insight is that pointer arithmetic is type-aware: adding 1 to a pointer advances it by sizeof(*pointer) bytes, not by 1 byte. This project makes this behavior visceral and intuitive through visualization.
Concepts You Must Understand First
| Concept | Why It Matters | Where to Learn |
|---|---|---|
| Basic pointer declaration | int *p declares a pointer to int | K&R Ch. 5 |
| sizeof operator | Returns size in bytes | Expert C Ch. 4 |
| Memory addresses | Addresses are byte-granular | CS:APP Ch. 3 |
| Array decay | Arrays decay to pointers in expressions | Expert C Ch. 4 |
| Types and their sizes | int=4, char=1, double=8 on most systems | C Standard |
Key Concepts Deep Dive
- The Scaling Rule
- When you compute
ptr + n, the actual address isptr + n * sizeof(*ptr) - This makes array indexing work:
arr[i]becomes*(arr + i) - Scaling happens automatically based on pointer type
- Expert C Programming Ch. 4
- When you compute
- Pointer Subtraction
ptr2 - ptr1gives the number of ELEMENTS between them, not bytes- Result has type
ptrdiff_t(signed integer) - Pointers must point to the same array (or undefined behavior)
- C Standard section 6.5.6
- Void Pointer Arithmetic
- Standard C says
void *arithmetic is undefined - GCC/Clang treat it as
char *(1-byte increments) as an extension - Common source of portability bugs
- GCC documentation, C Standard
- Standard C says
- Array Indexing Equivalence
arr[i]is defined as*(arr + i)- Therefore
arr[i]equalsi[arr](both valid!) - This is why array bounds aren’t checked
- K&R, Expert C Ch. 4
- Undefined Behavior in Pointer Arithmetic
- Pointer arithmetic past array bounds is UB
- Only exception: one past the end is allowed (but not dereferenced)
- Comparing pointers from different arrays is UB
- C Standard section 6.5.6
Theoretical Foundation

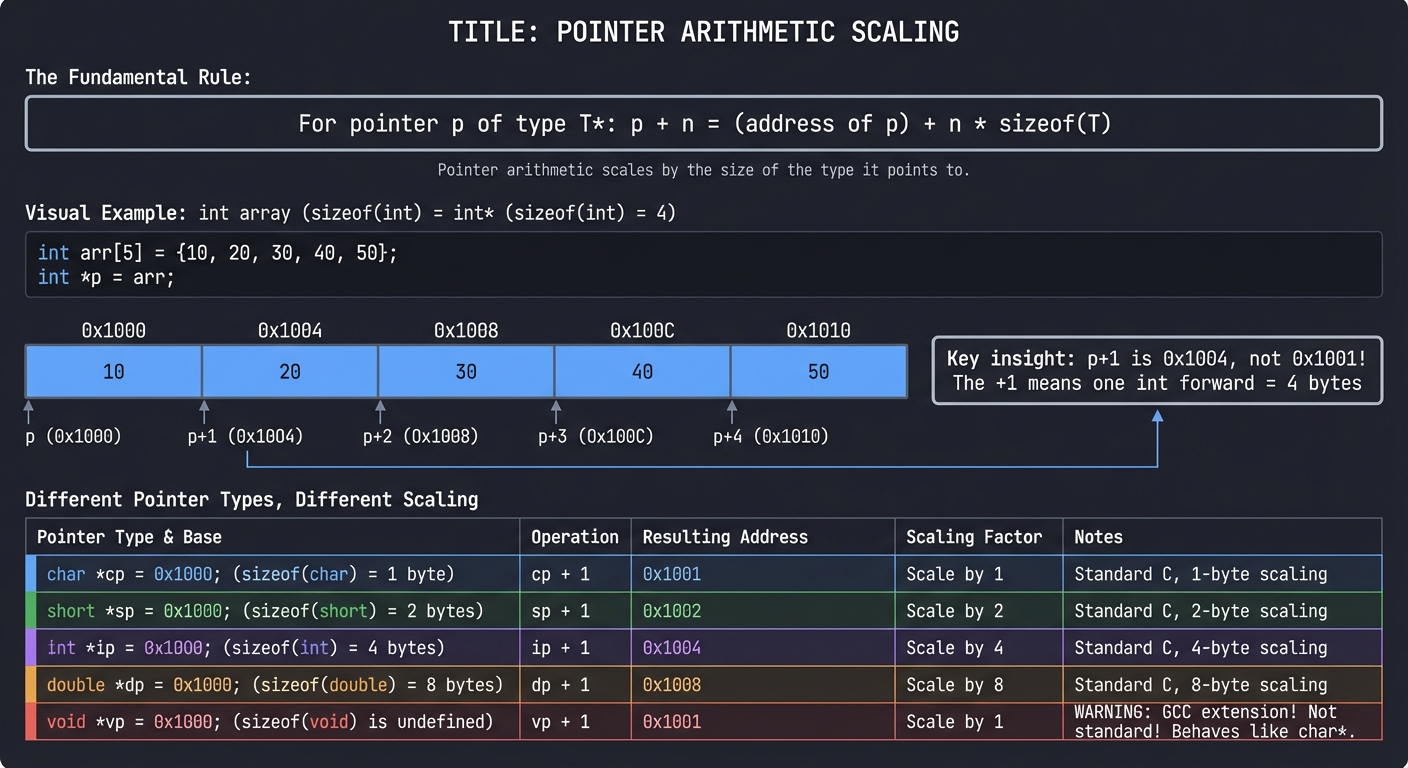

The Scaling Rule
┌─────────────────────────────────────────────────────────────────────────────┐
│ POINTER ARITHMETIC SCALING │
├─────────────────────────────────────────────────────────────────────────────┤
│ │
│ THE FUNDAMENTAL RULE: │
│ ───────────────────── │
│ For pointer p of type T*: │
│ │
│ p + n = (address of p) + n * sizeof(T) │
│ │
│ EXAMPLE WITH int* (sizeof(int) = 4): │
│ ───────────────────────────────────── │
│ │
│ int arr[5] = {10, 20, 30, 40, 50}; │
│ int *p = arr; // p = 0x1000 │
│ │
│ Address: 0x1000 0x1004 0x1008 0x100C 0x1010 │
│ ┌────────┬────────┬────────┬────────┬────────┐ │
│ Memory: │ 10 │ 20 │ 30 │ 40 │ 50 │ │
│ └────────┴────────┴────────┴────────┴────────┘ │
│ ▲ ▲ ▲ ▲ ▲ │
│ │ │ │ │ │ │
│ p p+1 p+2 p+3 p+4 │
│ (0x1000) (0x1004) (0x1008) (0x100C) (0x1010) │
│ │
│ Notice: p+1 is 0x1004, not 0x1001! │
│ The +1 means "one int forward" = 4 bytes │
│ │
│ DIFFERENT POINTER TYPES, DIFFERENT SCALING: │
│ ───────────────────────────────────────────── │
│ │
│ char *cp = 0x1000; cp + 1 = 0x1001 (scale by 1) │
│ short *sp = 0x1000; sp + 1 = 0x1002 (scale by 2) │
│ int *ip = 0x1000; ip + 1 = 0x1004 (scale by 4) │
│ double *dp = 0x1000; dp + 1 = 0x1008 (scale by 8) │
│ void *vp = 0x1000; vp + 1 = 0x1001 (GCC extension! Not standard!) │
│ │
└─────────────────────────────────────────────────────────────────────────────┘
Pointer Subtraction
┌─────────────────────────────────────────────────────────────────────────────┐
│ POINTER SUBTRACTION │
├─────────────────────────────────────────────────────────────────────────────┤
│ │
│ RULE: Subtracting two pointers gives ELEMENT COUNT, not bytes │
│ │
│ int arr[5]; │
│ int *p1 = &arr[1]; // 0x1004 │
│ int *p2 = &arr[4]; // 0x1010 │
│ │
│ Address: 0x1000 0x1004 0x1008 0x100C 0x1010 │
│ ┌────────┬────────┬────────┬────────┬────────┐ │
│ │ arr[0] │ arr[1] │ arr[2] │ arr[3] │ arr[4] │ │
│ └────────┴────────┴────────┴────────┴────────┘ │
│ ▲ ▲ │
│ │ │ │
│ p1 p2 │
│ │
│ p2 - p1 = ? │
│ │
│ Bytes: 0x1010 - 0x1004 = 12 bytes │
│ But result is: 3 (three int-sized elements) │
│ │
│ Formula: (p2 - p1) = (addr2 - addr1) / sizeof(*p) │
│ = 12 / 4 = 3 │
│ │
│ TYPE OF RESULT: ptrdiff_t (signed integer, platform-specific size) │
│ │
│ DANGER: Subtracting pointers to different arrays is UNDEFINED BEHAVIOR! │
│ │
│ int arr1[5], arr2[5]; │
│ int *p = arr1, *q = arr2; │
│ ptrdiff_t diff = q - p; // UB! Compilers may produce garbage │
│ │
└─────────────────────────────────────────────────────────────────────────────┘
Array Indexing Equivalence
┌─────────────────────────────────────────────────────────────────────────────┐
│ ARRAY INDEXING AS POINTER ARITHMETIC │
├─────────────────────────────────────────────────────────────────────────────┤
│ │
│ THE DEFINITION (from C Standard): │
│ ───────────────────────────────── │
│ │
│ arr[i] is DEFINED as *(arr + i) │
│ │
│ This means: │
│ 1. arr decays to pointer to first element │
│ 2. Add i (scaled by sizeof element) │
│ 3. Dereference the result │
│ │
│ CONSEQUENCE: │
│ ───────────── │
│ Since addition is commutative: │
│ │
│ arr[i] = *(arr + i) = *(i + arr) = i[arr] │
│ │
│ Yes, i[arr] is valid C! (Never write this in real code.) │
│ │
│ PROOF BY EXAMPLE: │
│ ───────────────── │
│ │
│ int arr[3] = {100, 200, 300}; │
│ │
│ printf("%d\n", arr[1]); // prints 200 │
│ printf("%d\n", *(arr + 1)); // prints 200 │
│ printf("%d\n", 1[arr]); // prints 200 │
│ printf("%d\n", *(1 + arr)); // prints 200 │
│ │
│ All four are IDENTICAL to the compiler! │
│ │
│ THE ASSEMBLY: │
│ ───────────── │
│ │
│ // For arr[i] where arr is at %rbx and i is in %eax: │
│ movslq %eax, %rax // sign-extend i to 64-bit │
│ movl (%rbx,%rax,4), %eax // load from base + i*4 │
│ │
│ The compiler generates the SAME code for arr[i] and *(arr+i) │
│ │
└─────────────────────────────────────────────────────────────────────────────┘
Void Pointer Arithmetic (Non-Standard)
┌─────────────────────────────────────────────────────────────────────────────┐
│ VOID POINTER ARITHMETIC │
├─────────────────────────────────────────────────────────────────────────────┤
│ │
│ THE PROBLEM: │
│ ───────────── │
│ void *vp; │
│ vp + 1 = ? │
│ │
│ sizeof(void) is UNDEFINED in standard C! │
│ So what does vp + 1 scale by? │
│ │
│ STANDARD C SAYS: │
│ ───────────────── │
│ Pointer arithmetic on void* is a constraint violation. │
│ The code should not compile (or at least warn). │
│ │
│ WHAT GCC/CLANG DO (Extension): │
│ ─────────────────────────────── │
│ They treat sizeof(void) as 1, so void* arithmetic works like char*. │
│ │
│ void *vp = (void*)0x1000; │
│ vp + 1; // GCC: 0x1001 (scales by 1) │
│ // Other compilers: error or warning │
│ │
│ COMMON USE CASE (and the portable fix): │
│ ───────────────────────────────────────── │
│ │
│ void *ptr = malloc(100); │
│ │
│ // Non-portable (GCC extension): │
│ void *next = ptr + 10; // Skip 10 bytes │
│ │
│ // Portable: │
│ void *next = (char*)ptr + 10; // Explicitly cast to char* │
│ │
│ DETECTION: │
│ ────────── │
│ gcc -Wpointer-arith // Warns about void* arithmetic │
│ gcc -pedantic // Errors on non-standard extensions │
│ │
└─────────────────────────────────────────────────────────────────────────────┘
Out-of-Bounds Pointer Arithmetic
┌─────────────────────────────────────────────────────────────────────────────┐
│ POINTER ARITHMETIC BOUNDS │
├─────────────────────────────────────────────────────────────────────────────┤
│ │
│ VALID POINTER POSITIONS: │
│ ───────────────────────── │
│ │
│ int arr[5]; │
│ │
│ Valid pointers: │
│ ┌─────────────────────────────────────────────────────────────┐ │
│ │ &arr[0] │ &arr[1] │ &arr[2] │ &arr[3] │ &arr[4] │ &arr[5]? │ │
│ └─────────────────────────────────────────────────────────────┘ │
│ ▲ ▲ ▲ ▲ ▲ ▲ │
│ │ │ │ │ │ │ │
│ Valid Valid Valid Valid Valid "One past end" │
│ (valid to FORM, │
│ NOT to dereference) │
│ │
│ RULE: You may form a pointer to "one past the last element" │
│ but dereferencing it is UNDEFINED BEHAVIOR. │
│ │
│ UNDEFINED BEHAVIOR: │
│ ─────────────────── │
│ │
│ int *p = arr + 6; // UB: more than one past end │
│ int *q = arr - 1; // UB: before the array │
│ *(&arr[5]); // UB: dereferencing one-past-end │
│ arr[5] = 42; // UB: dereferencing one-past-end │
│ │
│ WHY ONE-PAST-END IS ALLOWED: │
│ ───────────────────────────── │
│ It enables idiomatic C patterns like: │
│ │
│ int *end = arr + 5; // One past last element │
│ for (int *p = arr; p != end; p++) { │
│ // Process *p │
│ } │
│ │
│ The comparison p != end is valid; we never dereference 'end'. │
│ │
│ WHAT COMPILERS MAY DO WITH UB: │
│ ─────────────────────────────── │
│ - Produce expected result (by luck) │
│ - Crash │
│ - Format your hard drive (theoretically) │
│ - Optimize away the entire code path │
│ - Modern compilers actively exploit UB for optimization! │
│ │
└─────────────────────────────────────────────────────────────────────────────┘
Pointer Increment vs Address-of Increment
┌─────────────────────────────────────────────────────────────────────────────┐
│ COMMON POINTER EXPRESSIONS │
├─────────────────────────────────────────────────────────────────────────────┤
│ │
│ Given: int arr[5]; int *p = arr; │
│ │
│ EXPRESSION MEANING RESULT TYPE │
│ ────────────────────────────────────────────────────────────────────── │
│ p Address of arr[0] int* │
│ *p Value at arr[0] int │
│ p + 1 Address of arr[1] int* │
│ *(p + 1) Value at arr[1] int │
│ p++ Advance p, return old int* │
│ ++p Advance p, return new int* │
│ *p++ Get *p, then advance p int (value) │
│ (*p)++ Increment value at *p int (old value) │
│ *++p Advance p, then get *p int (value) │
│ ++*p Increment value at *p int (new value) │
│ │
│ THE TRICKY ONES: │
│ ───────────────── │
│ │
│ *p++ is parsed as *(p++), NOT (*p)++ │
│ │
│ Example: │
│ int arr[3] = {10, 20, 30}; │
│ int *p = arr; │
│ │
│ int a = *p++; // a = 10, p now points to arr[1] │
│ int b = *p++; // b = 20, p now points to arr[2] │
│ int c = *p++; // c = 30, p now points past arr (one-past-end) │
│ │
│ This idiom is common in string copying: │
│ while (*dst++ = *src++); // Copy until null terminator │
│ │
│ PRECEDENCE TABLE (relevant operators): │
│ ─────────────────────────────────────── │
│ 1. () [] (highest) │
│ 2. ++ -- (postfix) │
│ 3. ++ -- * & (prefix/unary) │
│ 4. + - (binary) │
│ │
│ So: *p++ = *(p++) because postfix ++ binds tighter than * │
│ │
└─────────────────────────────────────────────────────────────────────────────┘
Project Specification
What You Will Build
An interactive visualization tool that:
- Shows pointer values and memory at each step
- Traces pointer arithmetic operations
- Demonstrates the scaling rule
- Catches and explains undefined behavior
- Compares different pointer types side-by-side
Functional Requirements
- Basic Visualization (
--trace):- Accept C-like expressions
- Show before/after memory state
- Display address calculations
- Type Comparison (
--compare-types):- Show same operation on different pointer types
- Display scaling factors
- Highlight size differences
- Expression Analyzer (
--analyze):- Parse expressions like
*p++,*(p+i) - Show step-by-step evaluation
- Explain precedence
- Parse expressions like
- Bounds Checker (
--check-bounds):- Detect out-of-bounds arithmetic
- Warn about undefined behavior
- Show valid pointer range
- Interactive Mode (
--interactive):- REPL for exploring pointer operations
- Maintain state between commands
- Show memory visualization
Non-Functional Requirements
- Educational output with clear explanations
- Generates verifiable C code examples
- Handles all standard pointer types
- Warns about non-portable constructs (void* arithmetic)
Real World Outcome
When complete, you’ll have a tool like this:
$ ./ptr_viz --trace "int arr[5] = {10,20,30,40,50}; int *p = arr; p = p + 2;"
================================================================================
POINTER ARITHMETIC TRACE
================================================================================
INITIAL STATE:
──────────────
Declaration: int arr[5] = {10, 20, 30, 40, 50}
int *p = arr
Memory Layout:
Address Value Variable
──────── ───── ────────
0x1000 10 arr[0]
0x1004 20 arr[1]
0x1008 30 arr[2]
0x100C 40 arr[3]
0x1010 50 arr[4]
Pointer State:
p = 0x1000 (points to arr[0], value = 10)
└───────────▲
OPERATION: p = p + 2
─────────────────────
Step-by-step calculation:
1. Current p = 0x1000
2. Adding 2 to int* pointer
3. Scale factor: sizeof(int) = 4 bytes
4. Byte offset: 2 * 4 = 8 bytes
5. New address: 0x1000 + 8 = 0x1008
AFTER OPERATION:
────────────────
Memory Layout (unchanged):
Address Value Variable
──────── ───── ────────
0x1000 10 arr[0]
0x1004 20 arr[1]
0x1008 30 arr[2] ◄── p now points here
0x100C 40 arr[3]
0x1010 50 arr[4]
Pointer State:
p = 0x1008 (points to arr[2], value = 30)
└───────────────────▲
VERIFICATION:
─────────────
*p = 30 ✓
p - arr = 2 (element offset) ✓
================================================================================
$ ./ptr_viz --compare-types "ptr + 3" --base 0x1000
================================================================================
TYPE COMPARISON: ptr + 3
================================================================================
Starting address for all pointers: 0x1000
Type sizeof Scale Address after +3
──────────── ────── ───── ────────────────
char * 1 byte 1 0x1000 + 3*1 = 0x1003
short * 2 bytes 2 0x1000 + 3*2 = 0x1006
int * 4 bytes 4 0x1000 + 3*4 = 0x100C
long * 8 bytes 8 0x1000 + 3*8 = 0x1018
float * 4 bytes 4 0x1000 + 3*4 = 0x100C
double * 8 bytes 8 0x1000 + 3*8 = 0x1018
void * 1 byte* 1* 0x1000 + 3*1 = 0x1003 ⚠️ GCC extension!
* void* arithmetic is non-standard; GCC treats as char*
VISUAL:
───────
0x1000 0x1003 0x1006 0x100C 0x1018
│ │ │ │ │
char* ●─────────● │
│ │ │ │
short* ●─────────┼─────────● │ │
│ │ │ │ │
int* ●─────────┼─────────┼──────────────● │
│ │ │ │ │
long* ●─────────┼─────────┼──────────────┼────────────────────●
│ │ │ │ │
Base +1 char +1 short +1 int +1 long
================================================================================
$ ./ptr_viz --analyze "*p++"
================================================================================
EXPRESSION ANALYSIS: *p++
================================================================================
Given: int *p pointing to some integer
PARSING:
────────
Expression: *p++
Operator precedence (high to low):
1. ++ (postfix) - binds tightest
2. * (dereference)
Therefore parsed as: *(p++)
STEP-BY-STEP EVALUATION:
────────────────────────
Assume: p = 0x1000, *p = 42
Step 1: Evaluate p++
- Returns OLD value of p (0x1000)
- Side effect: p becomes 0x1004 (advances by sizeof(int))
Step 2: Dereference the returned value
- *(0x1000) = 42
RESULT:
───────
Expression value: 42 (the value at the ORIGINAL location)
Side effect: p is now 0x1004
COMMON MISTAKES:
────────────────
✗ Thinking *p is incremented (that would be (*p)++)
✗ Thinking the NEW location is dereferenced (that would be *++p)
COMPARISON TABLE:
─────────────────
Expression Value Returned p after Memory after
────────── ────────────── ─────── ────────────
*p++ 42 (old *p) 0x1004 unchanged
(*p)++ 42 (old *p) 0x1000 *p is now 43
*++p value at 0x1004 0x1004 unchanged
++*p 43 (new *p) 0x1000 *p is now 43
================================================================================
$ ./ptr_viz --check-bounds "int arr[5]; int *p = arr + 7;"
================================================================================
BOUNDS CHECK WARNING
================================================================================
Declaration: int arr[5]
int *p = arr + 7
⚠️ UNDEFINED BEHAVIOR DETECTED!
ANALYSIS:
─────────
Array bounds:
arr[0] at offset 0 (valid)
arr[1] at offset 1 (valid)
arr[2] at offset 2 (valid)
arr[3] at offset 3 (valid)
arr[4] at offset 4 (valid)
arr[5] at offset 5 (ONE-PAST-END: valid to form, not to dereference)
Pointer calculation: arr + 7
This is offset 7, which is 2 past the allowed limit.
arr arr+1 arr+2 arr+3 arr+4 arr+5 arr+6 arr+7
│ │ │ │ │ │ │ │
────────●──────●──────●──────●──────●──────○──────✗──────✗────────
│◄───── valid array ───────▶│ │ │ │
│ │ │ │
one-past │ OUT OF BOUNDS!
(OK for │
pointer, │
not *ptr)│
CONSEQUENCES:
─────────────
- The C standard says this is undefined behavior
- The compiler may:
• Produce "expected" result (by luck)
• Crash when dereferenced
• Optimize away code that depends on this
• Do literally anything
RECOMMENDATION:
───────────────
Always keep pointers within array bounds (or at one-past-end).
Use array length constants or sizeof to stay safe:
#define ARRLEN(arr) (sizeof(arr)/sizeof(arr[0]))
for (int *p = arr; p < arr + ARRLEN(arr); p++) { ... }
================================================================================
Questions to Guide Your Design
-
How will you simulate memory without actually allocating at arbitrary addresses?
-
How will you parse C-like expressions to understand the operations?
-
How will you handle the difference between compile-time and runtime knowledge?
-
For the interactive mode, how will you track variable state?
-
How will you detect undefined behavior while still showing what would happen?
-
How will you generate verifiable C code from visualizations?
Thinking Exercise
Before coding, work through these exercises on paper:
Exercise 1: Address Calculation
Given:
double arr[4]; // at address 0x2000, sizeof(double) = 8
double *p = arr + 1;
double *q = &arr[3];
Calculate:
- Address of p: ?
- Address of q: ?
- Value of (q - p): ?
- Value of (char)q - (char)p: ?
Exercise 2: Expression Evaluation
Given:
int arr[4] = {10, 20, 30, 40};
int *p = arr + 1; // p points to arr[1]
Evaluate each expression (give value AND side effects):
- *p
- *p++
- *(p++)
- (*p)++
- *++p
- ++*p
- *(p + 1)
- *(++p + 1)
Exercise 3: Void Pointer Puzzle
int arr[3] = {0x11223344, 0x55667788, 0x99AABBCC};
void *vp = arr;
char *cp = (char*)arr;
// On little-endian, what are:
*(int*)vp = ?
*(int*)(vp + 4) = ? // GCC extension
*(char*)vp = ?
*(cp + 1) = ?
Exercise 4: Bounds Analysis
int arr[10];
int *p = arr;
// Which of these are valid? Mark V=valid, U=undefined:
p + 0 = ?
p + 9 = ?
p + 10 = ?
p + 11 = ?
p - 1 = ?
&arr[10] = ?
arr[10] = ?
Hints in Layers
Hint 1: Simulating Memory
Create a simple memory model:
typedef struct {
size_t address; // Simulated address
size_t size; // Size of allocation
char *data; // Actual storage
char *name; // Variable name
} MemoryRegion;
typedef struct {
MemoryRegion regions[100];
int count;
size_t next_address; // Next "address" to assign
} SimulatedMemory;
// Allocate a new region at a simulated address
size_t sim_alloc(SimulatedMemory *mem, const char *name, size_t size) {
size_t addr = mem->next_address;
mem->regions[mem->count].address = addr;
mem->regions[mem->count].size = size;
mem->regions[mem->count].data = calloc(1, size);
mem->regions[mem->count].name = strdup(name);
mem->count++;
mem->next_address = (addr + size + 15) & ~15; // Align
return addr;
}
Hint 2: Parsing Expressions
For simple expression parsing, use recursive descent:
// Simplified: handle ptr, ptr+n, ptr-n, *ptr, ptr++
typedef enum {
TOK_IDENT, TOK_NUMBER, TOK_PLUS, TOK_MINUS,
TOK_STAR, TOK_PLUSPLUS, TOK_LPAREN, TOK_RPAREN
} TokenType;
typedef struct {
enum { EXPR_IDENT, EXPR_NUM, EXPR_ADD, EXPR_DEREF, EXPR_POSTINC } type;
union {
char *ident;
long number;
struct { struct Expr *left, *right; } binary;
struct Expr *unary;
};
} Expr;
Hint 3: Type-Aware Calculations
typedef struct {
char *base_type; // "int", "char", "double", etc.
int pointer_level; // 0 = value, 1 = pointer, 2 = pointer-to-pointer
size_t base_size; // sizeof(base_type)
} PointerType;
size_t get_scale_factor(PointerType *type) {
if (type->pointer_level == 0) return 0; // Can't do arithmetic on value
if (type->pointer_level > 1) return sizeof(void*); // Pointer to pointer
return type->base_size; // Regular pointer
}
size_t add_to_pointer(size_t addr, int n, PointerType *type) {
return addr + n * get_scale_factor(type);
}
Hint 4: ASCII Visualization
void draw_memory_bar(size_t start, size_t end, size_t highlight) {
printf(" ");
for (size_t addr = start; addr < end; addr += 4) {
if (addr == highlight) {
printf("▼───────");
} else {
printf("────────");
}
}
printf("\n");
printf(" ");
for (size_t addr = start; addr < end; addr += 4) {
printf("│%6zx │", addr);
}
printf("\n");
}
Solution Architecture
Data Structures
// Represent a pointer variable
typedef struct {
char name[32];
char type[32]; // "int*", "char*", etc.
size_t address; // Current value (address it points to)
size_t element_size; // sizeof pointed-to type
} Pointer;
// Represent an array in memory
typedef struct {
char name[32];
char element_type[32];
size_t base_address;
size_t element_size;
size_t count;
char *data; // Actual values
} Array;
// Visualization state
typedef struct {
Array arrays[10];
int array_count;
Pointer pointers[10];
int pointer_count;
} VizState;
Key Functions
// Calculate new address after pointer arithmetic
size_t ptr_add(Pointer *p, int offset);
// Check if pointer is in valid bounds
bool check_bounds(VizState *state, Pointer *p);
// Parse and evaluate expression
int eval_expression(VizState *state, const char *expr);
// Generate visualization output
void visualize_state(VizState *state, FILE *out);
// Generate verifiable C code
void generate_c_code(VizState *state, const char *expr, FILE *out);
Testing Strategy
Test Cases
- Basic Arithmetic
p + 1,p - 1for various types- Verify address calculation matches formula
- Complex Expressions
*p++,*(p+1),++*p- Verify both value and side effects
- Bounds Checking
- Exactly at bounds (valid)
- One past (valid for pointer)
- Beyond (undefined)
- Type Variations
- All standard types (char through long double)
- void* (with warning)
- Struct pointers
Verification
Generate C code that can be compiled and run:
// Generated verification
#include <stdio.h>
int main(void) {
int arr[5] = {10, 20, 30, 40, 50};
int *p = arr;
printf("Before: p = %p, *p = %d\n", (void*)p, *p);
p = p + 2;
printf("After p+2: p = %p, *p = %d\n", (void*)p, *p);
// Expected from visualization:
// p should advance by 8 bytes (2 * sizeof(int))
// *p should now be 30
}
Common Pitfalls & Debugging
| Pitfall | Symptom | Solution |
|---|---|---|
| Forgetting scaling | Addresses off by factor | Multiply by sizeof |
| Wrong precedence | Unexpected expression results | Use parentheses to clarify |
| Void pointer math | Compile errors (strict) or wrong scale (GCC) | Cast to char* explicitly |
| Off-by-one in bounds | False positives on one-past-end | Remember one-past is valid |
| Pointer subtraction | Getting bytes instead of elements | Result is already scaled |
Extensions & Challenges
Beginner Extensions
- Colorize output for different variable types
- Add support for struct pointers
- Generate GDB commands to verify
Intermediate Extensions
- Support for pointer-to-pointer
- Handle function pointers
- Interactive debugger-like stepping
Advanced Extensions
- Parse actual C source files
- Integration with valgrind output
- Detect undefined behavior statically
Self-Assessment Checklist
Understanding
- I can calculate pointer addresses by hand
- I know the scaling factor for every basic type
- I understand why void* arithmetic is non-standard
- I can trace expressions like *p++ step by step
- I know what pointer operations are undefined behavior
Implementation
- Basic visualization works for int pointers
- All standard types supported
- Expression parser handles common cases
- Bounds checking detects violations
- Generated C code verifies results
The Interview Questions They’ll Ask
- “What happens when you add 1 to an int pointer?”
- Address increases by sizeof(int), typically 4 bytes
- Scaling is automatic based on pointer type
- This makes arr[i] work as *(arr+i)
- “What’s the difference between p++ and (p)++?”
- *p++: dereferences p, then increments pointer
- (*p)++: increments the value pointed to, pointer unchanged
- Postfix ++ has higher precedence than unary *
- “What’s undefined behavior with pointers?”
- Dereferencing null or uninitialized pointers
- Pointer arithmetic past array bounds
- Comparing pointers to different arrays
- Dereferencing one-past-end pointer
- “Why is void* arithmetic a problem?”
- Standard C doesn’t define sizeof(void)
- GCC treats it as 1 (like char*)
- Code using it isn’t portable
- Solution: cast to char* explicitly
Resources
Essential Reading
- Expert C Programming Ch. 4: Pointers and arrays
- K&R Ch. 5: Pointers and Arrays
- C Standard 6.5.6: Additive operators (pointer arithmetic)
Books That Will Help
| Topic | Book | Chapter |
|---|---|---|
| Pointer fundamentals | K&R | Ch. 5 |
| Deep pointer semantics | Expert C Programming | Ch. 4 |
| Memory and addresses | CS:APP | Ch. 3 |
| Undefined behavior | Effective C | Ch. 8 |
Submission / Completion Criteria
Minimum Viable:
- Basic trace visualization for int pointers
- Address calculation display
- Type comparison for basic types
Full Completion:
- All standard types supported
- Expression analyzer for complex expressions
- Bounds checking with warnings
- Interactive mode
Excellence:
- Parse real C expressions
- Integration with actual memory (via /proc)
- Web interface for visualization
- Detect UB statically
This project is part of the Expert C Programming Mastery series. For the complete learning path, see the project index.
