Project 4: Stack Frame Inspector

Build a tool that walks the call stack and displays activation records, revealing how functions maintain their execution context.

Quick Reference

Attribute	Value
Difficulty	Level 4 (Advanced)
Time Estimate	1 Week
Language	C (with inline assembly)
Prerequisites	Memory layout (P03), calling conventions basics, assembly reading
Key Topics	Stack frames, frame pointers, return addresses, calling conventions
Book Reference	CS:APP Ch. 3, Expert C Programming Ch. 6
Portfolio Value	High - Demonstrates systems mastery

1. Learning Objectives

By completing this project, you will:

Understand stack frame anatomy - Know exactly what data is stored in each activation record: return address, saved registers, local variables, and function arguments
Master the frame pointer chain - Understand how RBP/EBP links stack frames together and enables stack walking
Learn calling conventions deeply - Distinguish between cdecl, System V AMD64 ABI, and Microsoft x64 calling conventions
Implement stack walking - Build a tool that traverses the call stack without relying on library functions
Read and write inline assembly - Use GCC/Clang inline assembly to access CPU registers directly
Debug at the assembly level - Use GDB/LLDB to examine stack frames and verify your understanding
Understand compiler optimization effects - See how -fomit-frame-pointer and optimizations affect stack layout
Connect to real debugging tools - Understand how GDB’s backtrace, Valgrind, and crash reporters work

2. Theoretical Foundation

2.1 Core Concepts: What Is a Stack Frame?

A stack frame (also called an activation record) is the portion of the stack allocated for a single function invocation. It contains everything the function needs to execute and return to its caller.

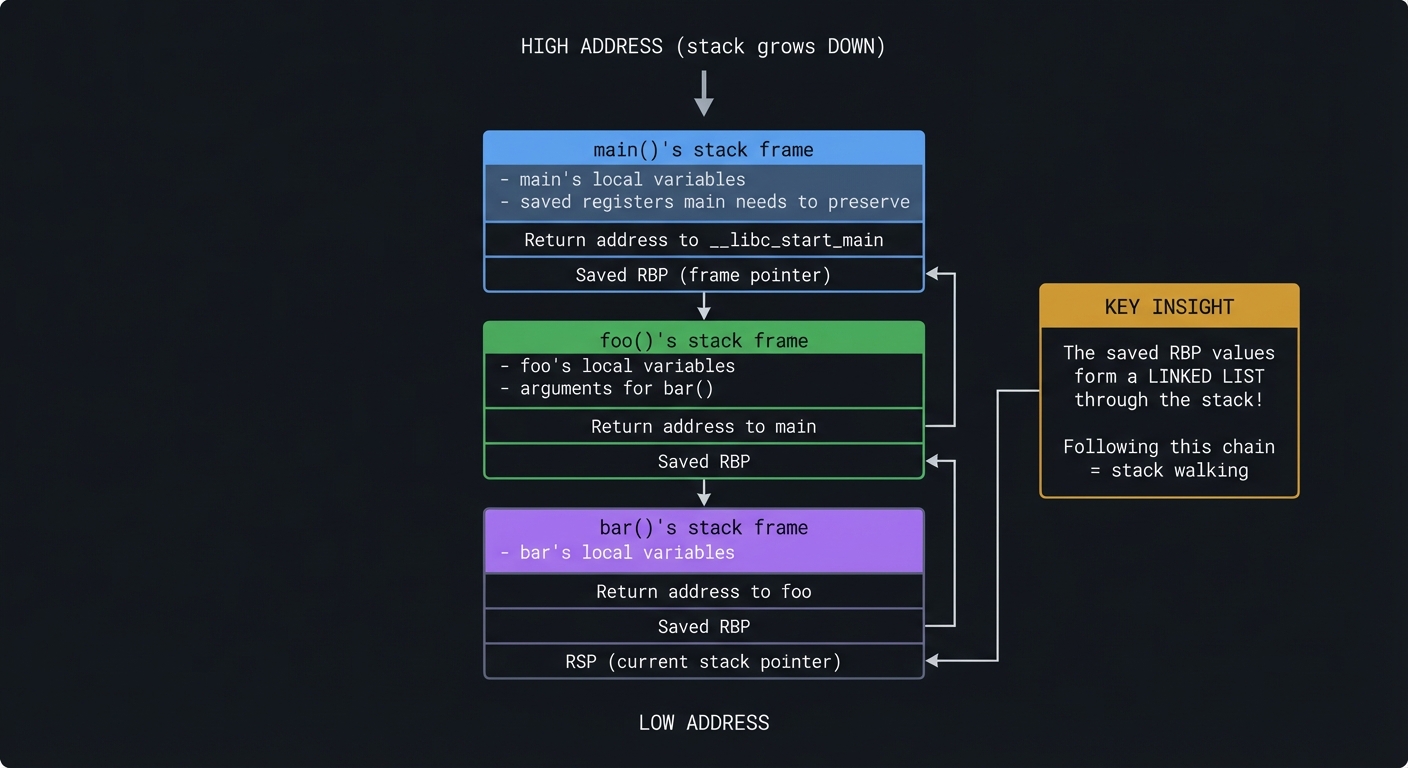

THE STACK FRAME CONCEPT
========================================================================

When you call a function:

    main() calls foo() calls bar()

Each function gets its own "workspace" on the stack:

    HIGH ADDRESS (stack grows DOWN)
    ┌────────────────────────────────────────────────────────────────────┐
    │                        main()'s stack frame                        │
    │  - main's local variables                                          │
    │  - saved registers main needs to preserve                          │
    ├────────────────────────────────────────────────────────────────────┤
    │  Return address to __libc_start_main                               │
    │  Saved RBP (frame pointer)  ◄─────────────────────────┐            │
    ├────────────────────────────────────────────────────────│────────────┤
    │                        foo()'s stack frame            │            │
    │  - foo's local variables                              │            │
    │  - arguments for bar() (if any go on stack)           │            │
    ├───────────────────────────────────────────────────────│────────────┤
    │  Return address to main                               │            │
    │  Saved RBP  ──────────────────────────────────────────┘ ◄────┐     │
    ├──────────────────────────────────────────────────────────────│─────┤
    │                        bar()'s stack frame                   │     │
    │  - bar's local variables                                     │     │
    ├──────────────────────────────────────────────────────────────│─────┤
    │  Return address to foo                                       │     │
    │  Saved RBP  ─────────────────────────────────────────────────┘     │
    │                                                                    │
    │  ──────────────────────────── RSP (current stack pointer)          │
    └────────────────────────────────────────────────────────────────────┘
    LOW ADDRESS

    KEY INSIGHT: The saved RBP values form a LINKED LIST through the stack!
    Following this chain = stack walking

Stack Frame Concept

2.2 Why Stack Frames Matter

Understanding stack frames is essential for:

PRACTICAL APPLICATIONS
========================================================================

DEBUGGING:
  • Stack traces in crash reports (how debuggers show "where you are")
  • GDB's `backtrace` command walks the frame pointer chain
  • Understanding "stack overflow" errors

SECURITY:
  • Stack buffer overflow exploits overwrite return addresses
  • Stack canaries detect corruption before return
  • ASLR randomizes stack location
  • Understanding "Return-Oriented Programming" (ROP) attacks

PERFORMANCE:
  • Function call overhead (stack manipulation costs)
  • Tail call optimization eliminates stack growth
  • Understanding why recursion can be expensive

SYSTEMS PROGRAMMING:
  • Implementing exception handling (C++, Rust panics)
  • Signal handlers need separate stacks
  • Debugger implementation
  • Profilers sample the stack to attribute time

2.3 Historical Context: Calling Conventions Evolution

CALLING CONVENTIONS THROUGH HISTORY
========================================================================

1970s - EARLY C (PDP-11):
  • All arguments passed on stack
  • Simple and consistent
  • Slower (memory access for every argument)

1980s - cdecl (x86 32-bit):
  • Arguments pushed right-to-left on stack
  • Caller cleans up stack (allows variadic functions)
  • Return value in EAX

  foo(1, 2, 3);

  Assembly:
    push 3        ; Third argument
    push 2        ; Second argument
    push 1        ; First argument
    call foo
    add esp, 12   ; Caller cleans up (3 × 4 bytes)

2000s - System V AMD64 ABI (Linux/macOS x86-64):
  • First 6 INTEGER args in: RDI, RSI, RDX, RCX, R8, R9
  • First 8 FLOAT args in: XMM0-XMM7
  • Remaining args on stack
  • Return value in RAX (or RAX:RDX for 128-bit)

  foo(1, 2, 3, 4, 5, 6, 7, 8);

  Assembly:
    mov r9d, 6    ; Sixth arg in R9
    mov r8d, 5    ; Fifth arg in R8
    mov ecx, 4    ; Fourth arg in RCX
    mov edx, 3    ; Third arg in RDX
    mov esi, 2    ; Second arg in RSI
    mov edi, 1    ; First arg in RDI
    push 8        ; Eighth arg on stack
    push 7        ; Seventh arg on stack
    call foo
    add rsp, 16   ; Clean up stack args

WHY THE CHANGE?
  • Registers are much faster than memory
  • Modern x86-64 has more registers (16 vs 8)
  • Cache misses on stack access are expensive

2.4 Common Misconceptions

MISCONCEPTION 1: "The stack grows up"
────────────────────────────────────────────────────────────────────────
REALITY: On x86/x86-64 (and most architectures), the stack grows DOWN.
         push decreases RSP; pop increases RSP.
         "Higher addresses" are at the TOP (earlier in the call chain).

MISCONCEPTION 2: "Arguments are always on the stack"
────────────────────────────────────────────────────────────────────────
REALITY: On x86-64, most arguments go in REGISTERS.
         Only overflow arguments (7th+ integer arg) go on stack.
         Variadic functions are special (va_start needs them somewhere).

MISCONCEPTION 3: "Frame pointers are always present"
────────────────────────────────────────────────────────────────────────
REALITY: Modern compilers often use -fomit-frame-pointer by default at -O2.
         This frees up RBP as a general-purpose register.
         Debugging info (DWARF) can still enable stack unwinding.

MISCONCEPTION 4: "Return addresses are in a fixed location"
────────────────────────────────────────────────────────────────────────
REALITY: Without frame pointers, return address offset varies per function.
         Each function may have different local variable sizes.
         Only DWARF unwind info knows the exact layout.

MISCONCEPTION 5: "Local variables are in the order declared"
────────────────────────────────────────────────────────────────────────
REALITY: Compiler can reorder locals for alignment and optimization.
         -O0 usually preserves order; -O2+ may change it entirely.

3. Project Specification

3.1 What You Will Build

A command-line tool called stackwalk that walks the call stack and displays detailed information about each activation record:

$ ./stackwalk
╔════════════════════════════════════════════════════════════════════╗
║                    STACK FRAME INSPECTOR                           ║
║                    Call Stack Analysis                             ║
╠════════════════════════════════════════════════════════════════════╣
║                                                                    ║
║  Frame 0: bar() at 0x401234                                        ║
║  ────────────────────────────────────────────────────────────────  ║
║    Frame pointer (RBP):     0x7fffffffe100                         ║
║    Return address:          0x4012ab (in foo+0x2b)                 ║
║    Saved RBP:               0x7fffffffe130                         ║
║    Local variables:         32 bytes                               ║
║    Stack frame size:        48 bytes                               ║
║                                                                    ║
║  Frame 1: foo() at 0x401280                                        ║
║  ────────────────────────────────────────────────────────────────  ║
║    Frame pointer (RBP):     0x7fffffffe130                         ║
║    Return address:          0x40134f (in main+0x1f)                ║
║    Saved RBP:               0x7fffffffe160                         ║
║    Local variables:         16 bytes                               ║
║    Stack frame size:        48 bytes                               ║
║                                                                    ║
║  Frame 2: main() at 0x401330                                       ║
║  ────────────────────────────────────────────────────────────────  ║
║    Frame pointer (RBP):     0x7fffffffe160                         ║
║    Return address:          0x7ffff7a2d830 (in __libc_start_main)  ║
║    Saved RBP:               0x0000000000000000                     ║
║    Local variables:         8 bytes                                ║
║    Stack frame size:        32 bytes                               ║
║                                                                    ║
╚════════════════════════════════════════════════════════════════════╝

Call chain: bar() <- foo() <- main() <- __libc_start_main
Total stack depth: 3 user frames
Total stack usage: 128 bytes

3.2 Functional Requirements

Stack Walking:
- Walk the frame pointer chain from current frame to main()
- Handle both 32-bit and 64-bit builds (via conditional compilation)
- Detect end of chain (NULL frame pointer or invalid address)
Frame Information Display:
- Current frame pointer (RBP/EBP)
- Return address for each frame
- Saved frame pointer value
- Estimated local variable size
- Total frame size
Symbol Resolution (Optional but Recommended):
- Resolve return addresses to function names
- Show offset within function
- Use dladdr() or similar for symbol lookup
Modes of Operation:
- Default: Walk stack from current position
- Demo mode: Set up a known call chain for testing
- Verbose mode: Show raw hex dumps of frame data
- Comparison mode: Show effect of -fomit-frame-pointer
Safety Features:
- Validate addresses before dereferencing
- Limit maximum frames to prevent infinite loops
- Handle corrupted frame pointer chains gracefully

3.3 Non-Functional Requirements

Platform: Linux x86-64 (primary), macOS x86-64 (stretch goal)
Compiler: GCC or Clang with -fno-omit-frame-pointer
Performance: Stack walk should complete in < 1ms for typical stacks
Portability: Use conditional compilation for architecture-specific code
Educational: Clear output with explanatory comments

3.4 Example Usage / Output

# Basic usage - walk current stack
$ ./stackwalk

# With verbose hex dump
$ ./stackwalk --verbose
Frame 0: bar() at 0x401234
  Raw frame data (48 bytes):
  0x7fffffffe100: 30 e1 ff ff ff 7f 00 00  ab 12 40 00 00 00 00 00
  0x7fffffffe110: 0a 00 00 00 14 00 00 00  00 00 00 00 00 00 00 00
  ...

# Demo mode with known call chain
$ ./stackwalk --demo
Setting up: main() -> foo() -> bar() -> inspect_stack()
[Stack trace output]

# Compare with/without frame pointer
$ ./stackwalk --compare
With frame pointer (-fno-omit-frame-pointer):
  [Full trace]

Without frame pointer (-fomit-frame-pointer):
  WARNING: Cannot walk stack - no frame pointer chain
  Only __builtin_return_address(0) available

# Get specific frame info
$ ./stackwalk --frame 2
Frame 2: main()
  [Detailed info for main's frame only]

3.5 Real World Outcome

After completing this project, you will be able to:

Debug without a debugger: Understand crash dumps and manually trace execution
Implement crash handlers: Build your own stack trace printer for crash reports
Understand security vulnerabilities: See exactly what stack buffer overflows corrupt
Optimize function calls: Know the real cost of deep call chains
Read compiler output: Understand assembly prologue/epilogue sequences

4. Solution Architecture

4.1 High-Level Design

STACK FRAME INSPECTOR ARCHITECTURE
========================================================================

                    ┌─────────────────────────────────────────────────┐
                    │                 User Interface                  │
                    │   CLI parsing, output formatting, modes         │
                    └────────────────────────┬────────────────────────┘
                                             │
                    ┌────────────────────────▼────────────────────────┐
                    │              Stack Walker Core                  │
                    │   Walk frame chain, collect frame data          │
                    └────────────────────────┬────────────────────────┘
                                             │
          ┌──────────────────────────────────┼──────────────────────────────┐
          │                                  │                              │
          ▼                                  ▼                              ▼
┌─────────────────────┐        ┌─────────────────────┐        ┌─────────────────────┐
│   Register Access   │        │   Memory Reader     │        │   Symbol Resolver   │
│   Get RBP, RSP      │        │   Validate & read   │        │   dladdr, nm        │
│   Inline assembly   │        │   frame data        │        │   addr2line         │
└─────────────────────┘        └─────────────────────┘        └─────────────────────┘
          │                                  │                              │
          └──────────────────────────────────┼──────────────────────────────┘
                                             │
                    ┌────────────────────────▼────────────────────────┐
                    │              Output Formatter                   │
                    │   Pretty print, hex dump, summary               │
                    └─────────────────────────────────────────────────┘


STACK FRAME LAYOUT (x86-64 System V ABI)
========================================================================

    When foo() calls bar():

    BEFORE CALL (in foo):               AFTER CALL PROLOGUE (in bar):

    ┌───────────────────────┐           ┌───────────────────────┐
    │    foo's frame        │           │    foo's frame        │
    │         ...           │           │         ...           │
    │    foo's locals       │           │    foo's locals       │
    ├───────────────────────┤           ├───────────────────────┤
    │         ...           │           │  arg 7 (if any)       │
    │                       │           ├───────────────────────┤
    │         RSP ──────────┼──┐        │  return address       │◄── call pushes this
    └───────────────────────┘  │        ├───────────────────────┤
                               │        │  saved RBP (foo's)    │◄── push rbp
                               │        ├───────────────────────┤
                               │        │  bar's locals         │◄── sub rsp, N
                               │        │                       │
                               │        │         RSP ──────────┼──┐
                               │        └───────────────────────┘  │
                               │                                    │
                               └────► Stack grew by call+prologue ─┘

    STANDARD PROLOGUE:
    push rbp           ; Save caller's frame pointer
    mov rbp, rsp       ; Set up new frame pointer
    sub rsp, N         ; Allocate space for locals

    STANDARD EPILOGUE:
    mov rsp, rbp       ; Deallocate locals  (or just "leave")
    pop rbp            ; Restore caller's frame pointer
    ret                ; Pop return address, jump to it

4.2 Key Components

Component	Responsibility	Key Functions
main.c	CLI parsing, mode selection	`main()`, `parse_args()`
stackwalk.c	Core stack walking logic	`walk_stack()`, `get_frame_info()`
registers.c	Architecture-specific register access	`get_rbp()`, `get_rsp()`
memory.c	Safe memory reading with validation	`safe_read()`, `is_valid_address()`
symbols.c	Symbol resolution	`resolve_address()`, `get_function_name()`
output.c	Formatting and display	`print_frame()`, `print_summary()`

4.3 Data Structures

/* Information about a single stack frame */
typedef struct {
    void *frame_pointer;       /* Current frame's RBP value */
    void *return_address;      /* Where to return after this function */
    void *saved_rbp;           /* Previous frame's RBP (forms the chain) */
    void *stack_pointer;       /* RSP at time of inspection (frame 0 only) */

    size_t local_var_size;     /* Estimated size of local variables */
    size_t frame_size;         /* Total frame size (to next frame) */

    int frame_number;          /* 0 = current, 1 = caller, etc. */

    /* Symbol information (if available) */
    char function_name[128];   /* Resolved function name */
    void *function_start;      /* Start address of function */
    size_t offset_in_func;     /* Offset of return addr within function */
    char source_file[256];     /* Source file (if debug info available) */
    int source_line;           /* Line number (if debug info available) */
} FrameInfo;

/* Collection of all frames in the stack */
typedef struct {
    FrameInfo *frames;         /* Array of frame info */
    int count;                 /* Number of frames */
    int capacity;              /* Allocated capacity */

    void *stack_bottom;        /* Highest valid stack address */
    void *stack_top;           /* RSP at start of walk */
    size_t total_stack_usage;  /* Sum of all frame sizes */
} StackTrace;

/* Options for stack walking */
typedef struct {
    int max_frames;            /* Maximum frames to walk (default: 100) */
    int verbose;               /* Show hex dumps */
    int resolve_symbols;       /* Attempt symbol resolution */
    int show_raw_addresses;    /* Show addresses without symbolication */
} WalkOptions;

4.4 Algorithm Overview

STACK WALKING ALGORITHM
========================================================================

INPUT:  None (reads current CPU registers)
OUTPUT: StackTrace with all frame information

ALGORITHM:

1. GET CURRENT REGISTERS
   rbp = current frame pointer (via inline assembly)
   rsp = current stack pointer (via inline assembly)

2. INITIALIZE
   frames = empty list
   current_rbp = rbp
   frame_num = 0

3. WALK THE CHAIN
   WHILE current_rbp is valid AND frame_num < max_frames:

       a. VALIDATE ADDRESS
          IF current_rbp is NULL OR not aligned OR outside stack bounds:
              BREAK (end of chain or corruption)

       b. READ FRAME DATA
          saved_rbp = memory[current_rbp]          // Previous frame pointer
          return_addr = memory[current_rbp + 8]    // Return address

       c. CALCULATE FRAME SIZE
          IF frame_num > 0:
              frame_size = previous_rbp - current_rbp
          ELSE:
              frame_size = estimate from rsp

       d. RESOLVE SYMBOL (optional)
          function_name = dladdr(return_addr - 1)  // -1 to get call site

       e. STORE FRAME INFO
          frames.append(FrameInfo{
              frame_pointer: current_rbp,
              return_address: return_addr,
              saved_rbp: saved_rbp,
              frame_size: frame_size,
              function_name: function_name,
              ...
          })

       f. MOVE TO NEXT FRAME
          current_rbp = saved_rbp
          frame_num++

4. RETURN frames


WHY return_addr - 1?
========================================================================
The return address points to the instruction AFTER the call.
To find which function made the call, we need an address WITHIN
the call instruction. Subtracting 1 gives us an address inside
the CALL instruction, which dladdr() can resolve correctly.

    0x401230: mov edi, 42
    0x401235: call bar        <- call instruction (5 bytes on x86-64)
    0x40123a: mov eax, 0      <- return address points HERE

    return_addr = 0x40123a
    return_addr - 1 = 0x401239 (inside the call instruction's address range)
    dladdr(0x401239) -> "foo" (correct!)

5. Implementation Guide

5.1 Development Environment Setup

# Required packages (Ubuntu/Debian)
sudo apt-get install gcc gdb binutils

# Required packages (macOS)
xcode-select --install

# Verify tools
gcc --version
gdb --version  # or lldb --version on macOS

# Create project directory
mkdir stackwalk && cd stackwalk
mkdir src include

# CRITICAL: We need frame pointers for stack walking
# Add this to your Makefile:
CFLAGS = -Wall -Wextra -g -O0 -fno-omit-frame-pointer

5.2 Project Structure

stackwalk/
├── src/
│   ├── main.c              # Entry point, CLI parsing
│   ├── stackwalk.c         # Core stack walking implementation
│   ├── registers.c         # Register access (inline assembly)
│   ├── memory.c            # Safe memory operations
│   ├── symbols.c           # Symbol resolution (dladdr)
│   └── output.c            # Output formatting
├── include/
│   ├── stackwalk.h         # Public API
│   ├── registers.h         # Register access declarations
│   ├── memory.h            # Memory operations
│   ├── symbols.h           # Symbol resolution
│   └── output.h            # Output declarations
├── tests/
│   ├── test_basic.c        # Basic stack walking test
│   ├── test_deep.c         # Deep recursion test
│   └── test_no_fp.c        # Test without frame pointers
├── Makefile
└── README.md

5.3 The Core Question You’re Answering

“What exactly is stored in a stack frame, and how can we walk the chain of frames?”

Every function call creates a stack frame. Your tool will reveal:

Where the return address is stored (how does the CPU know where to go back?)
How frame pointers link together (the linked list through the stack)
What happens to local variables (where do they live?)
How calling conventions affect layout (registers vs stack)

5.4 Concepts You Must Understand First

Before implementing, ensure you can answer:

What is RBP (or EBP on 32-bit)?
- The frame pointer / base pointer register
- Points to the “base” of the current stack frame
- Used as a stable reference for accessing locals and parameters
- Reference: CS:APP Section 3.7
What does call do at the machine level?
- Pushes the return address (next instruction) onto the stack
- Jumps to the target address
- Does NOT set up the frame pointer (that’s the prologue’s job)

What is the function prologue?

push rbp         ; Save caller's frame pointer
mov rbp, rsp     ; Establish our frame pointer
sub rsp, N       ; Allocate space for local variables

What is the function epilogue?

mov rsp, rbp     ; Or use "leave" instruction
pop rbp          ; Restore caller's frame pointer
ret              ; Pop return address and jump

Why do we need -fno-omit-frame-pointer?
- Without it, RBP is used as a general-purpose register
- The frame pointer chain doesn’t exist
- Stack unwinding requires DWARF debug info instead

5.5 Questions to Guide Your Design

Work through these before coding:

How do you get the current RBP value in C?
- Inline assembly? Compiler builtins? Something else?
How do you know when to stop walking?
- What does the frame pointer look like at main()?
- How do you detect a corrupted chain?
How do you validate addresses before reading?
- What makes an address “valid”?
- What’s in /proc/self/maps that can help?
How do you handle optimized code?
- What if frame pointers are omitted?
- Can you detect this condition?
How do you calculate frame sizes?
- The chain gives you pointers, not sizes
- How do you determine where one frame ends and another begins?

5.6 Thinking Exercise

Before writing any code, trace through this scenario on paper:

#include <stdio.h>

void bar(int x) {
    int local = x * 2;
    printf("In bar, local = %d\n", local);
    // <-- Imagine stack walk starts here
}

void foo(int a, int b) {
    int sum = a + b;
    bar(sum);
}

int main(void) {
    foo(10, 20);
    return 0;
}

Questions to answer:

Draw the stack layout when we’re inside bar(), just before printf.
- Where is main’s frame? foo’s frame? bar’s frame?
- Where is each return address?
- Where is each saved RBP?
Starting from bar’s RBP, trace the chain:
- bar’s RBP points to… (what address/value?)
- That location contains… (foo’s saved RBP)
- Following that pointer leads to… (main’s frame)
For each frame, identify:
- The return address (where in the caller do we return to?)
- The saved RBP (what was the caller’s frame pointer?)
- The local variables (where are sum, local stored?)

5.7 Hints in Layers

Hint 1: Getting Started - Reading RBP

The simplest way to get RBP in GCC/Clang:

void *get_rbp(void) {
    void *rbp;
    __asm__ volatile ("mov %%rbp, %0" : "=r" (rbp));
    return rbp;
}

Or use the compiler builtin:

void *frame = __builtin_frame_address(0);  // Current frame
void *caller_frame = __builtin_frame_address(1);  // Caller's frame

Note: __builtin_frame_address(N) for N > 0 requires frame pointers!

Hint 2: Basic Frame Walking

The core walking loop is simple once you understand the layout:

void walk_stack(void) {
    void **rbp = (void **)get_rbp();
    int frame = 0;

    while (rbp != NULL && frame < 100) {
        void *return_addr = rbp[1];     // Return address is at rbp+8
        void *saved_rbp = rbp[0];       // Saved RBP is at rbp+0

        printf("Frame %d:\n", frame);
        printf("  RBP: %p\n", (void *)rbp);
        printf("  Return addr: %p\n", return_addr);
        printf("  Saved RBP: %p\n", saved_rbp);

        rbp = (void **)saved_rbp;  // Move to caller's frame
        frame++;
    }
}

But this is dangerous! We’re dereferencing arbitrary pointers.

Hint 3: Validating Addresses

Before dereferencing, validate the address:

#include <sys/mman.h>
#include <signal.h>

/* Check if address is likely valid stack address */
int is_valid_stack_address(void *addr) {
    /* Must be aligned to 8 bytes (x86-64) */
    if ((uintptr_t)addr % 8 != 0) return 0;

    /* Must be within reasonable stack range */
    /* Stack is typically in high memory, growing down */
    if ((uintptr_t)addr < 0x7f0000000000ULL) return 0;
    if ((uintptr_t)addr > 0x7ffffffffff0ULL) return 0;

    return 1;
}

/* Safer approach: parse /proc/self/maps to find stack bounds */
int get_stack_bounds(void **low, void **high) {
    FILE *f = fopen("/proc/self/maps", "r");
    char line[256];
    while (fgets(line, sizeof(line), f)) {
        if (strstr(line, "[stack]")) {
            sscanf(line, "%p-%p", low, high);
            fclose(f);
            return 1;
        }
    }
    fclose(f);
    return 0;
}

Hint 4: Symbol Resolution with dladdr

Use dladdr() to convert addresses to function names:

#define _GNU_SOURCE
#include <dlfcn.h>

void resolve_address(void *addr, char *buf, size_t buflen) {
    Dl_info info;

    if (dladdr(addr, &info) && info.dli_sname) {
        snprintf(buf, buflen, "%s+0x%lx (%s)",
                 info.dli_sname,
                 (unsigned long)((char *)addr - (char *)info.dli_saddr),
                 info.dli_fname ? info.dli_fname : "?");
    } else {
        snprintf(buf, buflen, "%p (unknown)", addr);
    }
}

Remember to compile with -rdynamic to export symbols for dladdr:

gcc -rdynamic -o stackwalk stackwalk.c -ldl

Hint 5: Full Implementation Structure

Here’s the skeleton for the complete implementation:

/* stackwalk.c */

#define _GNU_SOURCE
#include <stdio.h>
#include <stdlib.h>
#include <stdint.h>
#include <string.h>
#include <dlfcn.h>

#define MAX_FRAMES 100

typedef struct {
    void *rbp;
    void *return_addr;
    void *saved_rbp;
    char symbol[256];
} Frame;

/* Get current frame pointer */
__attribute__((always_inline))
static inline void *get_rbp(void) {
    void *rbp;
    __asm__ volatile ("mov %%rbp, %0" : "=r" (rbp));
    return rbp;
}

/* Get current stack pointer */
__attribute__((always_inline))
static inline void *get_rsp(void) {
    void *rsp;
    __asm__ volatile ("mov %%rsp, %0" : "=r" (rsp));
    return rsp;
}

/* Validate stack address */
static int is_valid(void *addr) {
    uintptr_t a = (uintptr_t)addr;
    return (a > 0x1000 && a < 0x7fffffffffffULL && (a % 8) == 0);
}

/* Walk the stack */
int walk_stack(Frame *frames, int max_frames) {
    void **rbp = (void **)get_rbp();
    int count = 0;

    /* Skip this function's frame */
    if (is_valid(rbp)) {
        rbp = (void **)*rbp;
    }

    while (is_valid(rbp) && count < max_frames) {
        frames[count].rbp = rbp;
        frames[count].return_addr = rbp[1];
        frames[count].saved_rbp = rbp[0];

        /* Resolve symbol */
        Dl_info info;
        if (dladdr(rbp[1], &info) && info.dli_sname) {
            snprintf(frames[count].symbol, sizeof(frames[count].symbol),
                     "%s", info.dli_sname);
        } else {
            strcpy(frames[count].symbol, "???");
        }

        /* Check for end of chain */
        if (rbp[0] == NULL) {
            count++;
            break;
        }

        rbp = (void **)rbp[0];
        count++;
    }

    return count;
}

/* Pretty print */
void print_frames(Frame *frames, int count) {
    printf("═══════════════════════════════════════════════════════\n");
    printf("                   STACK TRACE                         \n");
    printf("═══════════════════════════════════════════════════════\n");

    for (int i = 0; i < count; i++) {
        printf("Frame %d: %s\n", i, frames[i].symbol);
        printf("  RBP:         %p\n", frames[i].rbp);
        printf("  Return addr: %p\n", frames[i].return_addr);
        printf("  Saved RBP:   %p\n", frames[i].saved_rbp);
        printf("\n");
    }
}

/* Demo functions */
__attribute__((noinline)) void bar(void) {
    Frame frames[MAX_FRAMES];
    int count = walk_stack(frames, MAX_FRAMES);
    print_frames(frames, count);
}

__attribute__((noinline)) void foo(void) {
    bar();
}

int main(void) {
    foo();
    return 0;
}

Compile with:

gcc -Wall -g -O0 -fno-omit-frame-pointer -rdynamic stackwalk.c -o stackwalk -ldl

5.8 The Interview Questions They’ll Ask

After completing this project, you’ll confidently answer:

“How does a debugger show a stack trace?”
- Walks the frame pointer chain (if available)
- Or uses DWARF unwind information
- Resolves addresses to symbols via debug info or dladdr
- Frame 0 = current function, Frame N = caller N levels up
“What happens when a function is called?”
- Caller: Place arguments (registers first on x64, stack if overflow)
- call: Push return address, jump to target
- Callee prologue: Save RBP, set new RBP, allocate locals
- Callee epilogue: Restore RSP, restore RBP, ret
“How does a buffer overflow exploit work?”
- Local buffer on stack, adjacent to saved RBP and return address
- Overflow writes past buffer into return address
- When function returns, CPU jumps to attacker-controlled address
- Show them exactly where return address is in your stack walk output
“What’s the difference between RSP and RBP?”
- RSP: Stack pointer, always points to top of stack, changes frequently
- RBP: Frame/base pointer, stable within a function, used for addressing
- With -fomit-frame-pointer, RBP becomes general-purpose, RSP used for everything
“Why might a stack trace be incomplete or wrong?”
- Frame pointer omitted (-O2 default)
- Tail call optimization (callee’s frame replaces caller’s)
- Corrupted stack (buffer overflow, use-after-free)
- Signal handlers have separate stack frames
- setjmp/longjmp can create confusing traces

5.9 Books That Will Help

Topic	Book	Chapter
Calling conventions	CS:APP	Ch. 3.7 “Procedures”
Stack layout	CS:APP	Ch. 3.7.1 “Runtime Stack”
x86-64 ABI	System V AMD64 ABI	Section 3.2 (online)
Memory segments	Expert C Programming	Ch. 6 “Runtime Data Structures”
Debugging	GDB Internals	Stack frames section

5.10 Implementation Phases

Phase 1: Basic Register Access and Frame Walking (2-3 hours)

Goal: Get RBP and walk the basic frame chain.

/* Get this working first: */
void demo(void) {
    void *rbp = get_rbp();
    printf("Current RBP: %p\n", rbp);

    /* Walk one level manually */
    void **frame = (void **)rbp;
    printf("Return address: %p\n", frame[1]);
    printf("Saved RBP: %p\n", frame[0]);
}

Checkpoint: You can print frame pointers for a simple call chain.

Phase 2: Safe Memory Access and Validation (1-2 hours)

Goal: Don’t crash on invalid addresses.

Implement address validation
Parse /proc/self/maps for stack bounds
Add maximum frame limit

Checkpoint: Program handles NULL frame pointers without crashing.

Phase 3: Symbol Resolution (2-3 hours)

Goal: Show function names instead of raw addresses.

Integrate dladdr()
Handle missing symbols gracefully
Calculate offset within function

Checkpoint: Output shows “main”, “foo”, “bar” instead of hex addresses.

Phase 4: Output Formatting and Analysis (2-3 hours)

Goal: Professional, educational output.

Pretty-printed frame information
Frame size calculations
Total stack usage
Optional hex dump mode

Checkpoint: Output matches the example in section 3.4.

Phase 5: Advanced Features (Optional, 2-4 hours)

Goal: Handle edge cases and add features.

Compare with/without frame pointers
Show effect of optimization levels
Source file and line resolution (addr2line integration)
Support for recursive functions

Checkpoint: Can demonstrate the effect of -fomit-frame-pointer.

5.11 Key Implementation Decisions

Decision	Options	Recommendation
Register access	Inline assembly vs builtins	Inline assembly for clarity and control
Symbol resolution	dladdr vs backtrace_symbols	dladdr for more control and less allocation
Address validation	Simple range check vs /proc/maps	Both: quick check first, then maps if needed
Output format	Plain text vs structured	Plain text for learning, JSON option for tools
Error handling	Abort vs graceful	Graceful with clear error messages

6. Testing Strategy

Test Cases

Test	Description	Expected Outcome
Basic chain	main -> foo -> bar	3+ frames shown with correct nesting
Deep recursion	Recursive function 50 calls deep	All 50 frames captured
Symbol resolution	All demo functions	Function names resolved correctly
Invalid input	Manually corrupt frame pointer	Graceful termination, no crash
Edge: no frame ptr	Compiled with -fomit-frame-pointer	Clear warning, limited output
Edge: optimized	Compiled with -O2	Detect and report optimization issues

Verification Script

#!/bin/bash
echo "Testing stack walker..."

# Test 1: Basic execution
./stackwalk || { echo "FAIL: Basic execution"; exit 1; }

# Test 2: Check for expected symbols
./stackwalk | grep -q "main" || { echo "FAIL: main not found"; exit 1; }
./stackwalk | grep -q "foo" || { echo "FAIL: foo not found"; exit 1; }
./stackwalk | grep -q "bar" || { echo "FAIL: bar not found"; exit 1; }

# Test 3: Verify frame ordering (bar before foo before main)
OUTPUT=$(./stackwalk)
BAR_LINE=$(echo "$OUTPUT" | grep -n "bar" | head -1 | cut -d: -f1)
FOO_LINE=$(echo "$OUTPUT" | grep -n "foo" | head -1 | cut -d: -f1)
MAIN_LINE=$(echo "$OUTPUT" | grep -n "main" | head -1 | cut -d: -f1)

if [ "$BAR_LINE" -lt "$FOO_LINE" ] && [ "$FOO_LINE" -lt "$MAIN_LINE" ]; then
    echo "PASS: Frame ordering correct"
else
    echo "FAIL: Frame ordering wrong"
    exit 1
fi

# Test 4: Compare with GDB backtrace
echo "Comparing with GDB..."
GDB_BT=$(echo -e "break bar\nrun\nbt\nquit" | gdb -q ./stackwalk 2>/dev/null | grep -E "#[0-9]")
echo "$GDB_BT"

echo "All tests passed!"

Debugging with GDB

Use GDB to verify your understanding:

$ gdb ./stackwalk
(gdb) break bar
(gdb) run
(gdb) info frame           # Show current frame details
(gdb) bt                   # Compare with your output
(gdb) x/8gx $rbp           # Examine memory at RBP
(gdb) print $rbp           # Current frame pointer
(gdb) print *(void**)$rbp  # Saved RBP (caller's frame)
(gdb) x/i *($rbp+8)        # Instruction at return address

7. Common Pitfalls & Debugging

Pitfall	Symptom	Solution
Missing -fno-omit-frame-pointer	Empty or single-frame output	Add flag to CFLAGS
Forgetting -rdynamic	dladdr returns NULL for your functions	Add -rdynamic to link flags
Not skipping your own frame	First frame is `walk_stack` itself	Skip one frame at start
Unaligned access	SIGBUS on some architectures	Validate 8-byte alignment
Infinite loop	Circular frame pointer chain	Check for NULL AND limit count
Wrong return address offset	Symbols don’t match	It’s `rbp[1]`, not `rbp[-1]`
Optimized away locals	Can’t see local variables	Use -O0 for debugging
Inlined functions	Missing expected frames	Use `__attribute__((noinline))`

Debugging Strategies

If frames are missing:

# Check if frame pointers are enabled
objdump -d ./stackwalk | grep "push.*rbp" | head -5
# Should see "push %rbp" at function start

# Check with GDB
gdb ./stackwalk -ex "break bar" -ex "run" -ex "bt" -ex "quit"

If symbols are ???:

# Check symbol table
nm ./stackwalk | grep " T "

# Check if built with -rdynamic
readelf -d ./stackwalk | grep SYMBOLIC

If it crashes:

# Run with address sanitizer
gcc -fsanitize=address -g ./stackwalk.c -o stackwalk -ldl -rdynamic
./stackwalk

# Check where it fails
gdb ./stackwalk -ex "run" -ex "bt"

8. Extensions & Challenges

Beginner Extensions

Add color-coded output (different colors for each frame)
Show frame sizes in human-readable format (e.g., “48 bytes”)
Add JSON output mode for use with other tools
Show time spent in each frame (requires sampling profiler approach)

Intermediate Extensions

Integrate addr2line for source file and line numbers
Support both 32-bit and 64-bit (via conditional compilation)
Add DWARF unwind support for optimized binaries
Show register values saved in each frame
Detect and report leaf functions (no prologue)

Advanced Extensions

Build a mini-profiler using stack sampling
Implement exception unwinding (like C++ throw)
Support for signal handler stacks
Compare with libunwind or libbacktrace
Add support for stripped binaries (no symbols)
Detect stack corruption and buffer overflows

9. Real-World Connections

How Production Tools Do This

GDB:

Uses DWARF .debug_frame or .eh_frame sections
Falls back to frame pointer chain if available
Supports “pseudo-frame pointers” for optimized code

Valgrind:

Instruments every function entry/exit
Maintains shadow stack for accurate traces
Doesn’t rely on frame pointers

Linux Kernel (perf):

Uses frame pointers when available (kernel built with them)
Or LBR (Last Branch Record) hardware feature
Or DWARF unwinding for userspace

Crash Reporting (like Crashpad):

Captures register state at crash time
Uses platform-specific unwinders
Symbols resolved server-side from debug packages

libunwind: Portable stack unwinding library
libbacktrace: Ian Lance Taylor’s backtrace library (used in GCC)
elfutils: DWARF unwinding support
simpleperf: Android’s profiler with stack sampling

10. Resources

Essential Reading

CS:APP Chapter 3.7: “Procedures” - Complete coverage of calling conventions
System V AMD64 ABI: Official x86-64 calling convention specification
GDB Internals: Stack frame handling documentation

Online Resources

Eli Bendersky’s Stack Frame Layout - Excellent visual explanation
OSDev Wiki: Stack - Low-level details
DWARF Standard - Debug information format

Tools

gdb / lldb - Reference implementations of stack walking
objdump -d - Disassemble to see prologues/epilogues
readelf -wF - Show .eh_frame (unwind info)
addr2line - Convert addresses to source lines

11. Self-Assessment Checklist

Understanding

I can draw a stack frame showing RBP, return address, locals
I know the difference between RSP and RBP
I understand why frame pointers form a linked list
I can explain the function prologue and epilogue
I know why -fomit-frame-pointer breaks stack walking
I understand System V AMD64 ABI register passing order

Implementation

My tool walks frames correctly for a known call chain
Symbol resolution works (function names appear)
Invalid addresses don’t cause crashes
Output matches GDB’s bt command
Code handles edge cases (NULL frame pointer, max depth)

Growth

I can debug stack traces in crash reports
I understand buffer overflow exploits at the stack level
I can read GCC output and identify prologue/epilogue
I know when frame pointers are present or absent
I can explain this to someone learning systems programming

12. Submission / Completion Criteria

Minimum Viable Completion

Walk at least 3 frames of a test program
Display frame pointer and return address for each
Compile and run without crashes

Full Completion

All functional requirements implemented
Symbol resolution working
Clean, formatted output
Handle edge cases gracefully
Works with provided test cases
Compare mode showing -fomit-frame-pointer effect

Excellence

Source line resolution (addr2line integration)
Support for both 32-bit and 64-bit
DWARF unwind support for optimized code
Performance profiler extension
Comprehensive documentation and examples

This guide was expanded from EXPERT_C_PROGRAMMING_DEEP_DIVE.md. For the complete learning path, see the project index.
