Project 3: Memory Layout Visualizer
Build a tool that displays the memory layout of a running C program, showing exactly where different types of data live in the process address space.
Quick Reference
| Attribute | Value |
|---|---|
| Language | C |
| Difficulty | Level 3 (Intermediate) |
| Time | Weekend (10-16 hours) |
| Book Reference | Expert C Programming Ch. 6, CS:APP Ch. 7, 9 |
| Coolness | Essential Systems Knowledge |
| Portfolio Value | High - Demonstrates deep understanding |
Learning Objectives
By completing this project, you will:
- Map the process address space - Understand text, data, bss, heap, and stack segments
- Use /proc filesystem on Linux - Parse /proc/self/maps for memory regions
- Understand ELF segment loading - Connect binary format to runtime layout
- Distinguish between sections and segments - Know what the linker vs loader sees
- Analyze variable placement - Predict where any variable will be allocated
- Use objdump and nm effectively - Examine binary contents
- Understand ASLR - See address space layout randomization in action
- Debug memory-related issues - Know where to look for different problems
The Core Question You’re Answering
“How does the operating system organize a process’s virtual address space, and where does each type of data live?”
When you write C code, you create different kinds of data:
- Executable code (functions)
- Initialized global variables
- Uninitialized global variables
- String literals
- Heap allocations
- Stack variables
Each of these lives in a specific region of memory with specific properties (readable, writable, executable). Understanding this layout is fundamental to:
- Debugging segmentation faults
- Understanding security vulnerabilities
- Optimizing memory usage
- Working with embedded systems
Theoretical Foundation

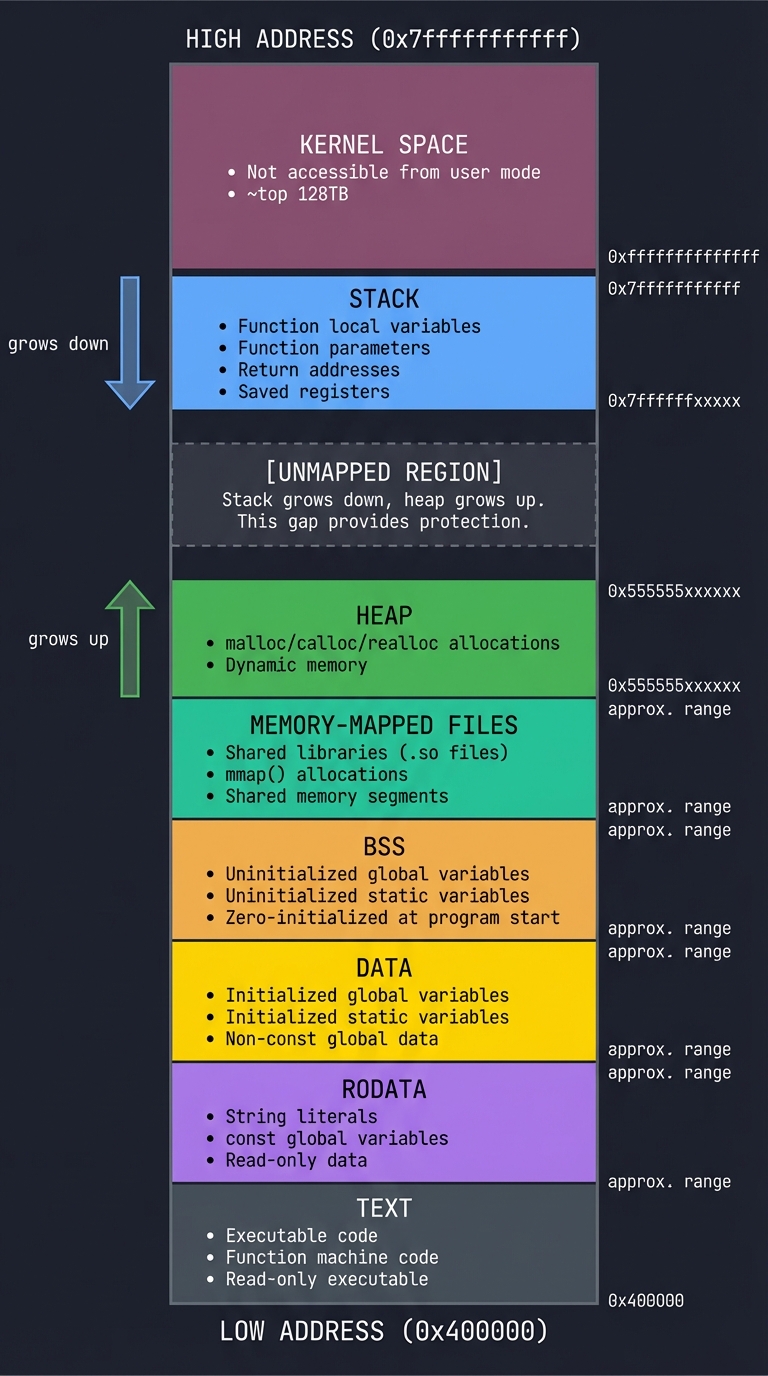

The Process Virtual Address Space
Every process has its own virtual address space, mapped by the OS to physical memory:
PROCESS VIRTUAL ADDRESS SPACE (64-bit Linux, typical layout)
═══════════════════════════════════════════════════════════════════
HIGH ADDRESS (0x7fffffffffff on x86-64)
┌─────────────────────────────────────────────────────────────────┐
│ KERNEL SPACE │
│ (Not accessible from user mode) │
│ ~ top 128TB ~ │
├─────────────────────────────────────────────────────────────────┤ 0x7fffffffffff
│ │
│ STACK │
│ │
│ • Function local variables │
│ • Function parameters │
│ • Return addresses │
│ • Saved registers │
│ │
│ ↓ grows down │
├ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ┤
│ │
│ [ UNMAPPED REGION ] │
│ │
│ Stack grows down, heap grows up │
│ This gap provides protection │
│ │
├ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ┤
│ ↑ grows up │
│ │
│ HEAP │
│ │
│ • malloc/calloc/realloc allocations │
│ • Dynamic memory │
│ │
├─────────────────────────────────────────────────────────────────┤
│ MEMORY-MAPPED FILES │
│ • Shared libraries (.so files) │
│ • mmap() allocations │
│ • Shared memory segments │
├─────────────────────────────────────────────────────────────────┤
│ BSS │
│ • Uninitialized global variables │
│ • Uninitialized static variables │
│ • Zero-initialized at program start │
├─────────────────────────────────────────────────────────────────┤
│ DATA │
│ • Initialized global variables │
│ • Initialized static variables │
│ • Non-const global data │
├─────────────────────────────────────────────────────────────────┤
│ RODATA │
│ • String literals │
│ • const global variables │
│ • Read-only data │
├─────────────────────────────────────────────────────────────────┤
│ TEXT │
│ • Executable code │
│ • Function machine code │
│ • Read-only, executable │
└─────────────────────────────────────────────────────────────────┘
LOW ADDRESS (typically starts around 0x400000)
Memory Segment Properties
| Segment | Contents | Permissions | Lifetime |
|---|---|---|---|
| TEXT | Executable code | r-x (read, execute) | Program lifetime |
| RODATA | String literals, const | r– (read only) | Program lifetime |
| DATA | Initialized globals | rw- (read, write) | Program lifetime |
| BSS | Uninitialized globals | rw- (read, write) | Program lifetime |
| HEAP | malloc’d memory | rw- (read, write) | Until free’d |
| STACK | Local variables | rw- (read, write) | Until function returns |
C Code to Memory Mapping
/* file: example.c */
#include <stdio.h>
#include <stdlib.h>
/* TEXT: Function code goes here */
int add(int a, int b) {
return a + b;
}
/* RODATA: String literal */
const char *greeting = "Hello, World!";
/* DATA: Initialized global */
int initialized_global = 42;
/* BSS: Uninitialized global */
int uninitialized_global;
/* DATA: Initialized static at file scope */
static int static_initialized = 100;
/* BSS: Uninitialized static at file scope */
static int static_uninitialized;
int main(void) {
/* STACK: Local variables */
int local_var = 10;
char local_array[100];
/* HEAP: Dynamic allocation */
int *heap_ptr = malloc(sizeof(int) * 10);
/* DATA/BSS: Static inside function */
static int func_static_init = 200;
static int func_static_uninit;
free(heap_ptr);
return 0;
}
MAPPING TO MEMORY SEGMENTS:
┌─────────────────────────────────────────────────────────────────┐
│ TEXT SEGMENT (.text) │
├─────────────────────────────────────────────────────────────────┤
│ • add() function machine code │
│ • main() function machine code │
│ • Other libc functions (linked) │
└─────────────────────────────────────────────────────────────────┘
┌─────────────────────────────────────────────────────────────────┐
│ RODATA SEGMENT (.rodata) │
├─────────────────────────────────────────────────────────────────┤
│ • "Hello, World!" string │
│ • (The pointer 'greeting' is in DATA, the string is here) │
└─────────────────────────────────────────────────────────────────┘
┌─────────────────────────────────────────────────────────────────┐
│ DATA SEGMENT (.data) │
├─────────────────────────────────────────────────────────────────┤
│ • initialized_global (42) │
│ • static_initialized (100) │
│ • func_static_init (200) │
│ • greeting pointer (points to RODATA) │
└─────────────────────────────────────────────────────────────────┘
┌─────────────────────────────────────────────────────────────────┐
│ BSS SEGMENT (.bss) │
├─────────────────────────────────────────────────────────────────┤
│ • uninitialized_global │
│ • static_uninitialized │
│ • func_static_uninit │
│ (All zero-initialized at load time) │
└─────────────────────────────────────────────────────────────────┘
┌─────────────────────────────────────────────────────────────────┐
│ HEAP (runtime) │
├─────────────────────────────────────────────────────────────────┤
│ • Memory from malloc(sizeof(int) * 10) │
│ • heap_ptr points here │
└─────────────────────────────────────────────────────────────────┘
┌─────────────────────────────────────────────────────────────────┐
│ STACK (runtime) │
├─────────────────────────────────────────────────────────────────┤
│ • local_var (10) │
│ • local_array[100] │
│ • heap_ptr (the pointer itself, not what it points to) │
│ • main's return address │
│ • Saved frame pointer │
└─────────────────────────────────────────────────────────────────┘
/proc/self/maps Format
On Linux, /proc/self/maps shows the memory layout:
$ cat /proc/self/maps
address perms offset dev inode pathname
─────────────────────────────────────────────────────────────────
00400000-00401000 r--p 00000000 08:01 1234567 /path/to/program
00401000-00402000 r-xp 00001000 08:01 1234567 /path/to/program
00402000-00403000 r--p 00002000 08:01 1234567 /path/to/program
00403000-00404000 r--p 00002000 08:01 1234567 /path/to/program
00404000-00405000 rw-p 00003000 08:01 1234567 /path/to/program
00405000-00406000 rw-p 00000000 00:00 0 [heap]
7f0000000000-7f0000200000 r-xp 00000000 08:01 2345678 /lib/x86_64-linux-gnu/libc.so.6
...
7ffc00000000-7ffc00021000 rw-p 00000000 00:00 0 [stack]
FIELD EXPLANATION:
──────────────────
address: Start-End virtual addresses
perms: r=read, w=write, x=execute, p=private, s=shared
offset: Offset in the file
dev: Device number (major:minor)
inode: Inode number on the device
pathname: File backing this mapping (or special like [heap], [stack])

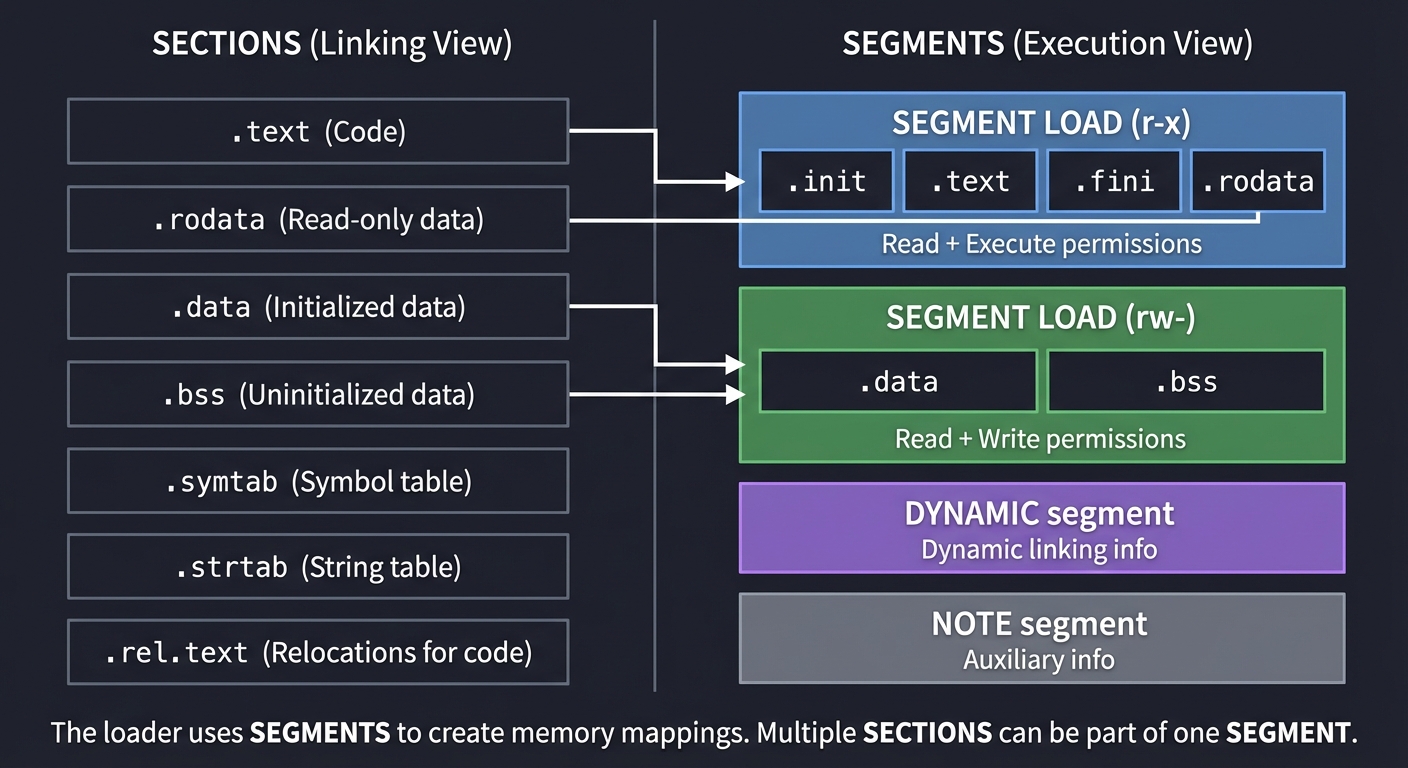

ELF Sections vs Segments
Important distinction:
SECTIONS (linking view - seen by linker):
=========================================
.text - Code
.rodata - Read-only data
.data - Initialized data
.bss - Uninitialized data
.symtab - Symbol table
.strtab - String table
.rel.text - Relocations for code
SEGMENTS (execution view - seen by loader):
===========================================
LOAD (rx) - Contains .text, .rodata
LOAD (rw) - Contains .data, .bss
DYNAMIC - Dynamic linking info
NOTE - Auxiliary info
The loader uses SEGMENTS to create memory mappings.
Multiple SECTIONS can be part of one SEGMENT.
┌─────────────────────────────────────────────────────────────────┐
│ SEGMENT LOAD (r-x) │
│ ┌─────────────────────────────────────────────────────────────┐│
│ │ .init │ .text │ .fini │ .rodata │ ││
│ └─────────────────────────────────────────────────────────────┘│
└─────────────────────────────────────────────────────────────────┘
┌─────────────────────────────────────────────────────────────────┐
│ SEGMENT LOAD (rw-) │
│ ┌─────────────────────────────────────────────────────────────┐│
│ │ .data │ .bss │ ││
│ └─────────────────────────────────────────────────────────────┘│
└─────────────────────────────────────────────────────────────────┘
ASLR (Address Space Layout Randomization)
Modern systems randomize memory layout for security:
WITHOUT ASLR (predictable):
══════════════════════════════
Run 1: Stack at 0x7fff00000000
Run 2: Stack at 0x7fff00000000
Run 3: Stack at 0x7fff00000000
WITH ASLR (randomized):
══════════════════════════════
Run 1: Stack at 0x7ffd12345000
Run 2: Stack at 0x7ffe98765000
Run 3: Stack at 0x7ffc00bad000
ASLR makes exploits harder because attackers can't
predict where code and data are located.
Disable for this project (easier debugging):
$ echo 0 | sudo tee /proc/sys/kernel/randomize_va_space
Project Specification
What You Will Build
A command-line tool called memlayout that displays the memory layout of the current process:
$ ./memlayout
╔════════════════════════════════════════════════════════════════╗
║ PROCESS MEMORY LAYOUT ║
║ PID: 12345 ║
╠════════════════════════════════════════════════════════════════╣
║ ║
║ SEGMENT RANGE SIZE PERM ║
║ ───────────────────────────────────────────────────────────── ║
║ STACK 0x7ffe8a5d0000-0x7ffe8a5f2000 136 KB rw- ║
║ local_var @ 0x7ffe8a5d2f4c ║
║ local_arr @ 0x7ffe8a5d2e00 ║
║ ║
║ [gap] 0x7f0000000000-0x7ffe8a5d0000 ~127 TB ║
║ ║
║ HEAP 0x5620a1a4d000-0x5620a1a6e000 132 KB rw- ║
║ malloc'd ptr @ 0x5620a1a4d260 ║
║ ║
║ BSS 0x5620a0a3c040-0x5620a0a3d000 4 KB rw- ║
║ uninit_glob @ 0x5620a0a3c044 ║
║ ║
║ DATA 0x5620a0a3c000-0x5620a0a3c040 64 B rw- ║
║ init_global @ 0x5620a0a3c000 ║
║ ║
║ RODATA 0x5620a0a3b000-0x5620a0a3c000 4 KB r-- ║
║ "Hello" @ 0x5620a0a3b000 ║
║ ║
║ TEXT 0x5620a0a39000-0x5620a0a3b000 8 KB r-x ║
║ main() @ 0x5620a0a39160 ║
║ helper() @ 0x5620a0a391a0 ║
║ ║
╚════════════════════════════════════════════════════════════════╝
Functional Requirements
- Parse /proc/self/maps:
- Read and parse the memory map file
- Identify each region’s purpose
- Calculate sizes
- Display Segment Information:
- Show address ranges
- Show permissions (r/w/x)
- Show sizes in human-readable format
- Show Variable Locations:
- Display addresses of sample variables
- Categorize by segment type
- Show which segment each variable belongs to
- Compare Modes:
- Static view (current process)
- Compare two runs (show ASLR effect)
- objdump comparison mode
- Interactive Mode:
- Accept variable address to classify
- Show segment for any address
Non-Functional Requirements
- Portability: Work on Linux (primary), macOS (stretch goal)
- Performance: Fast parsing and display
- Accuracy: Correctly identify all major segments
- Educational: Clear output with explanations
Real World Outcome
Complete tool session:
$ ./memlayout --help
Usage: memlayout [options]
--all Show all memory regions
--summary Show segment summary only
--variables Show sample variables in each segment
--compare Run twice and show ASLR differences
--lookup ADDR Identify which segment contains address
--objdump Compare with objdump output
$ ./memlayout --variables
╔════════════════════════════════════════════════════════════════╗
║ VARIABLE PLACEMENT ║
╠════════════════════════════════════════════════════════════════╣
║ ║
║ STACK (Local Variables): ║
║ ───────────────────────────────────────────────────────────── ║
║ int local_int @ 0x7ffd12345678 (4 bytes) ║
║ char local_arr[100] @ 0x7ffd12345600 (100 bytes) ║
║ int *local_ptr @ 0x7ffd123455f0 (8 bytes) ║
║ ║
║ HEAP (Dynamic Allocations): ║
║ ───────────────────────────────────────────────────────────── ║
║ malloc(40) @ 0x561234567890 (40 bytes) ║
║ calloc(10, 8) @ 0x5612345678c0 (80 bytes) ║
║ ║
║ BSS (Uninitialized Globals): ║
║ ───────────────────────────────────────────────────────────── ║
║ int uninit_global @ 0x561234566040 (4 bytes) ║
║ static int uninit_s @ 0x561234566044 (4 bytes) ║
║ ║
║ DATA (Initialized Globals): ║
║ ───────────────────────────────────────────────────────────── ║
║ int init_global=42 @ 0x561234565000 (4 bytes) ║
║ static int init_s=10 @ 0x561234565004 (4 bytes) ║
║ ║
║ RODATA (Constants): ║
║ ───────────────────────────────────────────────────────────── ║
║ "Hello, World!" @ 0x561234564000 (14 bytes) ║
║ const int CONSTANT @ 0x56123456400e (4 bytes) ║
║ ║
║ TEXT (Code): ║
║ ───────────────────────────────────────────────────────────── ║
║ main() @ 0x561234563000 ║
║ helper_function() @ 0x5612345630a0 ║
║ ║
╚════════════════════════════════════════════════════════════════╝
$ ./memlayout --lookup 0x7ffd12345678
Address 0x7ffd12345678 is in: STACK
Region: 0x7ffd12340000-0x7ffd12361000
Permissions: rw-
Offset from region start: 0x5678 (22136 bytes)
$ ./memlayout --compare
Run 1:
TEXT: 0x561234560000
STACK: 0x7ffd12340000
HEAP: 0x561234580000
Run 2:
TEXT: 0x55a234560000 (delta: -0xb000000000000)
STACK: 0x7ffe98760000 (delta: +0x186420000)
HEAP: 0x55a234580000 (delta: -0xb000000000000)
ASLR is ENABLED - addresses change between runs
Solution Architecture
Project Structure
memlayout/
├── src/
│ ├── main.c # Entry point, CLI
│ ├── maps_parser.c # Parse /proc/self/maps
│ ├── segment_info.c # Segment identification
│ ├── variable_demo.c # Sample variables
│ ├── display.c # Output formatting
│ └── objdump_compare.c # Compare with objdump
├── include/
│ ├── memlayout.h # Main header
│ ├── maps_parser.h # Parser declarations
│ └── segment.h # Segment types
├── Makefile
└── README.md
Key Data Structures
/* Memory region from /proc/self/maps */
typedef struct {
unsigned long start;
unsigned long end;
char perms[5]; /* rwxp */
unsigned long offset;
char dev[16];
unsigned long inode;
char pathname[256];
} MemoryRegion;
/* Segment classification */
typedef enum {
SEG_TEXT,
SEG_RODATA,
SEG_DATA,
SEG_BSS,
SEG_HEAP,
SEG_STACK,
SEG_MMAP,
SEG_VDSO,
SEG_VSYSCALL,
SEG_UNKNOWN
} SegmentType;
/* Segment with classification */
typedef struct {
MemoryRegion region;
SegmentType type;
const char *description;
} Segment;
/* Variable location info */
typedef struct {
const char *name;
void *address;
size_t size;
SegmentType expected_segment;
} VariableInfo;
Key Algorithms
Parsing /proc/self/maps:
int parse_maps(Segment *segments, int max_segments) {
FILE *fp = fopen("/proc/self/maps", "r");
if (!fp) return -1;
char line[512];
int count = 0;
while (fgets(line, sizeof(line), fp) && count < max_segments) {
MemoryRegion *r = &segments[count].region;
/* Parse: address-address perms offset dev inode pathname */
int fields = sscanf(line,
"%lx-%lx %4s %lx %s %lu %255s",
&r->start, &r->end, r->perms,
&r->offset, r->dev, &r->inode, r->pathname);
if (fields >= 5) {
if (fields < 7) r->pathname[0] = '\0';
segments[count].type = classify_segment(&segments[count]);
count++;
}
}
fclose(fp);
return count;
}
Segment Classification:
SegmentType classify_segment(Segment *seg) {
MemoryRegion *r = &seg->region;
/* Special kernel mappings */
if (strstr(r->pathname, "[stack]")) return SEG_STACK;
if (strstr(r->pathname, "[heap]")) return SEG_HEAP;
if (strstr(r->pathname, "[vdso]")) return SEG_VDSO;
if (strstr(r->pathname, "[vsyscall]")) return SEG_VSYSCALL;
/* Executable code (r-x) */
if (r->perms[0] == 'r' && r->perms[2] == 'x') {
return SEG_TEXT;
}
/* Read-only data (r--) */
if (r->perms[0] == 'r' && r->perms[1] == '-' && r->perms[2] == '-') {
return SEG_RODATA;
}
/* Writable data (rw-) for main executable */
if (r->perms[0] == 'r' && r->perms[1] == 'w') {
/* Distinguish DATA from BSS by offset */
if (r->offset > 0) {
return SEG_DATA;
} else if (r->inode == 0) {
return SEG_BSS; /* Anonymous, writable = likely BSS/heap */
}
}
return SEG_UNKNOWN;
}
Address Lookup:
SegmentType lookup_address(unsigned long addr, Segment *segments, int count) {
for (int i = 0; i < count; i++) {
if (addr >= segments[i].region.start &&
addr < segments[i].region.end) {
return segments[i].type;
}
}
return SEG_UNKNOWN;
}
Implementation Guide
Phase 1: Parse /proc/self/maps (2-3 hours)
Goal: Read and parse the memory map.
/* maps_parser.c */
#include <stdio.h>
#include <string.h>
#include "memlayout.h"
int parse_proc_maps(MemoryRegion *regions, int max_count) {
FILE *fp = fopen("/proc/self/maps", "r");
if (!fp) {
perror("Failed to open /proc/self/maps");
return -1;
}
char line[512];
int count = 0;
while (fgets(line, sizeof(line), fp) && count < max_count) {
MemoryRegion *r = ®ions[count];
/* Parse the line */
char start_str[32], end_str[32];
int n = sscanf(line, "%[^-]-%s %4s %lx %15s %lu %255[^\n]",
start_str, end_str, r->perms,
&r->offset, r->dev, &r->inode, r->pathname);
r->start = strtoul(start_str, NULL, 16);
r->end = strtoul(end_str, NULL, 16);
if (n < 6) r->pathname[0] = '\0';
count++;
}
fclose(fp);
return count;
}
Phase 2: Classify Segments (2 hours)
Goal: Identify what each region is used for.
Key classification logic:
[stack]-> Stack[heap]-> Heap- Executable (
r-xp) -> Text - Read-only (
r--p) -> Rodata - Read-write from file -> Data
- Anonymous read-write -> BSS or heap
Phase 3: Display Formatting (2 hours)
Goal: Create clean, readable output.
/* display.c */
void print_segment_summary(Segment *seg) {
const char *type_names[] = {
"TEXT", "RODATA", "DATA", "BSS",
"HEAP", "STACK", "MMAP", "VDSO",
"VSYSCALL", "UNKNOWN"
};
unsigned long size = seg->region.end - seg->region.start;
char size_str[32];
if (size >= 1024 * 1024) {
snprintf(size_str, sizeof(size_str), "%lu MB", size / (1024*1024));
} else if (size >= 1024) {
snprintf(size_str, sizeof(size_str), "%lu KB", size / 1024);
} else {
snprintf(size_str, sizeof(size_str), "%lu B", size);
}
printf(" %-12s 0x%012lx-0x%012lx %8s %s\n",
type_names[seg->type],
seg->region.start, seg->region.end,
size_str, seg->region.perms);
}
Phase 4: Variable Demonstration (2 hours)
Goal: Show actual variables in each segment.
/* variable_demo.c */
#include <stdlib.h>
#include "memlayout.h"
/* Sample variables in different segments */
const char *rodata_string = "I am in RODATA";
int data_var = 42;
int bss_var;
void demonstrate_variables(void) {
/* Stack variable */
int stack_var = 100;
/* Heap allocation */
int *heap_var = malloc(sizeof(int));
*heap_var = 200;
printf("Variable Locations:\n");
printf(" rodata_string @ %p (RODATA)\n", (void*)rodata_string);
printf(" data_var @ %p (DATA)\n", (void*)&data_var);
printf(" bss_var @ %p (BSS)\n", (void*)&bss_var);
printf(" stack_var @ %p (STACK)\n", (void*)&stack_var);
printf(" heap_var @ %p (HEAP)\n", (void*)heap_var);
printf(" main() @ %p (TEXT)\n", (void*)main);
free(heap_var);
}
Phase 5: objdump Comparison (2 hours)
Goal: Compare runtime layout with binary analysis.
/* objdump_compare.c */
void compare_with_objdump(const char *executable) {
char cmd[256];
printf("Comparing with objdump output:\n\n");
/* Show section headers */
snprintf(cmd, sizeof(cmd), "objdump -h %s | grep -E '\\.text|\\.rodata|\\.data|\\.bss'",
executable);
printf("Section Headers (from objdump -h):\n");
system(cmd);
printf("\n");
/* Show symbols */
snprintf(cmd, sizeof(cmd), "nm %s | head -20", executable);
printf("Symbols (from nm):\n");
system(cmd);
}
Phase 6: ASLR Comparison (1 hour)
Goal: Show address randomization effect.
void compare_aslr(void) {
/* Record addresses */
printf("Current run addresses:\n");
printf(" main(): %p\n", (void*)main);
printf(" data_var: %p\n", (void*)&data_var);
printf(" stack: %p\n", (void*)&(int){0});
printf("\nRun this program multiple times to see ASLR effect.\n");
printf("To disable ASLR for testing:\n");
printf(" echo 0 | sudo tee /proc/sys/kernel/randomize_va_space\n");
}
Hints in Layers
Hint 1: Getting Started with /proc/self/maps
Start by simply printing the maps file:
#include <stdio.h>
int main(void) {
FILE *fp = fopen("/proc/self/maps", "r");
char line[256];
while (fgets(line, sizeof(line), fp)) {
printf("%s", line);
}
fclose(fp);
return 0;
}
Notice the patterns - [stack], [heap], and permission flags like r-xp, rw-p.
Hint 2: Getting Variable Addresses
Use the address-of operator and cast to void* for printing:
int global = 42;
int main(void) {
int local = 10;
printf("global: %p\n", (void*)&global);
printf("local: %p\n", (void*)&local);
printf("main: %p\n", (void*)main);
}
Hint 3: Using objdump and nm
Compare these commands with your runtime output:
# Show sections and their addresses
objdump -h ./memlayout
# Show all symbols
nm ./memlayout
# Show only global symbols
nm -g ./memlayout
# Show section contents
objdump -s -j .rodata ./memlayout
Hint 4: Classifying Regions
The key is combining permissions with pathname:
if (strstr(pathname, "[stack]")) return SEG_STACK;
if (strstr(pathname, "[heap]")) return SEG_HEAP;
if (perms[2] == 'x') return SEG_TEXT; // executable
if (perms[1] == '-') return SEG_RODATA; // not writable
if (perms[1] == 'w' && offset>0) return SEG_DATA;
// etc.
Hint 5: Distinguishing DATA from BSS
The key insight: DATA comes from the file (has offset), BSS is anonymous:
/* From objdump output, DATA is at file offset > 0 */
/* BSS has offset 0 and no file inode */
if (region.offset > 0 && region.inode > 0) {
/* Backed by file = DATA or TEXT */
} else if (region.inode == 0) {
/* Anonymous mapping = BSS or heap */
}
Testing Strategy
Test Cases
| Test | Description | Expected Outcome |
|---|---|---|
| Parse maps | Read /proc/self/maps | All regions parsed |
| Classify TEXT | Find executable region | main() in TEXT |
| Classify STACK | Find stack region | Local var in STACK |
| Classify HEAP | malloc() allocation | Allocation in HEAP |
| ASLR test | Run twice | Addresses differ |
| objdump match | Compare with binary | Sections match |
Validation Script
#!/bin/bash
echo "Testing memlayout tool..."
# Basic execution
./memlayout --summary || { echo "FAIL: Basic execution"; exit 1; }
# Check for expected segments
./memlayout --all | grep -q "TEXT" || { echo "FAIL: No TEXT segment"; exit 1; }
./memlayout --all | grep -q "STACK" || { echo "FAIL: No STACK segment"; exit 1; }
./memlayout --all | grep -q "HEAP" || { echo "FAIL: No HEAP segment"; exit 1; }
# Compare with objdump
./memlayout --objdump 2>/dev/null
# ASLR test (run twice)
addr1=$(./memlayout --summary | grep TEXT | awk '{print $2}')
addr2=$(./memlayout --summary | grep TEXT | awk '{print $2}')
if [ "$addr1" != "$addr2" ]; then
echo "ASLR is working - addresses differ"
fi
echo "All tests passed!"
Common Pitfalls & Debugging
| Pitfall | Symptom | Solution |
|---|---|---|
| Parsing errors | Missing regions | Check sscanf format |
| Classification wrong | HEAP shown as BSS | Check inode and pathname |
| Address format | Truncated addresses | Use %lx not %x |
| File not found | No /proc/self/maps | Linux-only feature |
| ASLR confusion | Addresses don’t match objdump | Disable ASLR for comparison |
| Position-independent code | TEXT at unexpected address | Normal with PIE binaries |
Extensions & Challenges
Beginner Extensions
- Color-coded output (different colors for segments)
- Show shared library regions
- Calculate total memory usage
Intermediate Extensions
- macOS support using
vmmapcommand - Compare two processes’ layouts
- Track allocations over time
Advanced Extensions
- Direct ELF parsing (no procfs dependency)
- DWARF debug info for symbol resolution
- Memory protection change detection
- Integrate with /proc/self/smaps for detailed stats
Real-World Connections
Security Applications
- Stack overflow detection: Know where stack ends
- Heap overflow analysis: Understand heap boundaries
- ASLR verification: Confirm randomization is working
- ROP gadget finding: Locate executable regions
Debugging Applications
- Segfault analysis: Which segment did we hit?
- Memory leak investigation: Where is memory allocated?
- Performance analysis: Cache behavior by segment
Interview Questions
- “Draw the process memory layout” - This project gives you the answer
- “What is ASLR and why is it used?” - Security through randomization
- “What’s the difference between .data and .bss?” - Initialized vs uninitialized
- “Where are local variables stored?” - Stack
- “What happens when you malloc()?” - Heap allocation
Books That Will Help
| Topic | Book | Chapter |
|---|---|---|
| Memory Layout | Expert C Programming | Ch. 6 |
| Virtual Memory | CS:APP | Ch. 9 |
| ELF Format | CS:APP | Ch. 7 |
| Linking & Loading | Linkers and Loaders | Ch. 3-5 |
| Linux Memory | Understanding Linux Kernel | Ch. 9 |
Self-Assessment Checklist
Understanding
- I can draw the process memory layout from memory
- I know which segment each variable type goes in
- I understand the difference between sections and segments
- I can explain ASLR and its purpose
- I know how to use /proc/self/maps
Implementation
- Tool parses /proc/self/maps correctly
- All major segments are classified
- Variable addresses match expected segments
- Output is clear and well-formatted
- objdump comparison works
Growth
- I can debug segfaults by reasoning about memory layout
- I can predict where variables will be allocated
- I understand security implications of memory layout
Submission / Completion Criteria
Minimum Viable Completion
- Parses /proc/self/maps successfully
- Identifies TEXT, STACK, and HEAP segments
- Shows addresses of sample variables
Full Completion
- All segment types correctly classified
- Clean formatted output
- objdump comparison mode
- ASLR demonstration
Excellence
- macOS support
- Direct ELF parsing
- Integration with debugging tools
- Memory usage statistics
This guide was expanded from EXPERT_C_PROGRAMMING_DEEP_DIVE.md. For the complete learning path, see the project index.
